25. Slightly raise tele 2 (301), then remove left and right side
wear pads (204, 205) from between tele 1 (201) and tele
2 (301) (see Figure 4-16).
26. Pull tele 2 (301) out of tele 1 (201) until wear pads at rear
of tele 2 (301) are exposed. Wrap ratchet strap (N)
around wear pads to prevent them from falling upon the
removal of tele 2 (301) from tele 1 (201) (see
Figure 4-17). Remove tele 2 (301) from tele 1 (201).
27. Remove plates (503) on left and right sides of telescope
cylinders #1 (502) and #2 (501) (see Figure 4-18).
28. Detach grease hose assembly from rear hole of each
wear pad (304). Remove ratchet strap (N) and remove

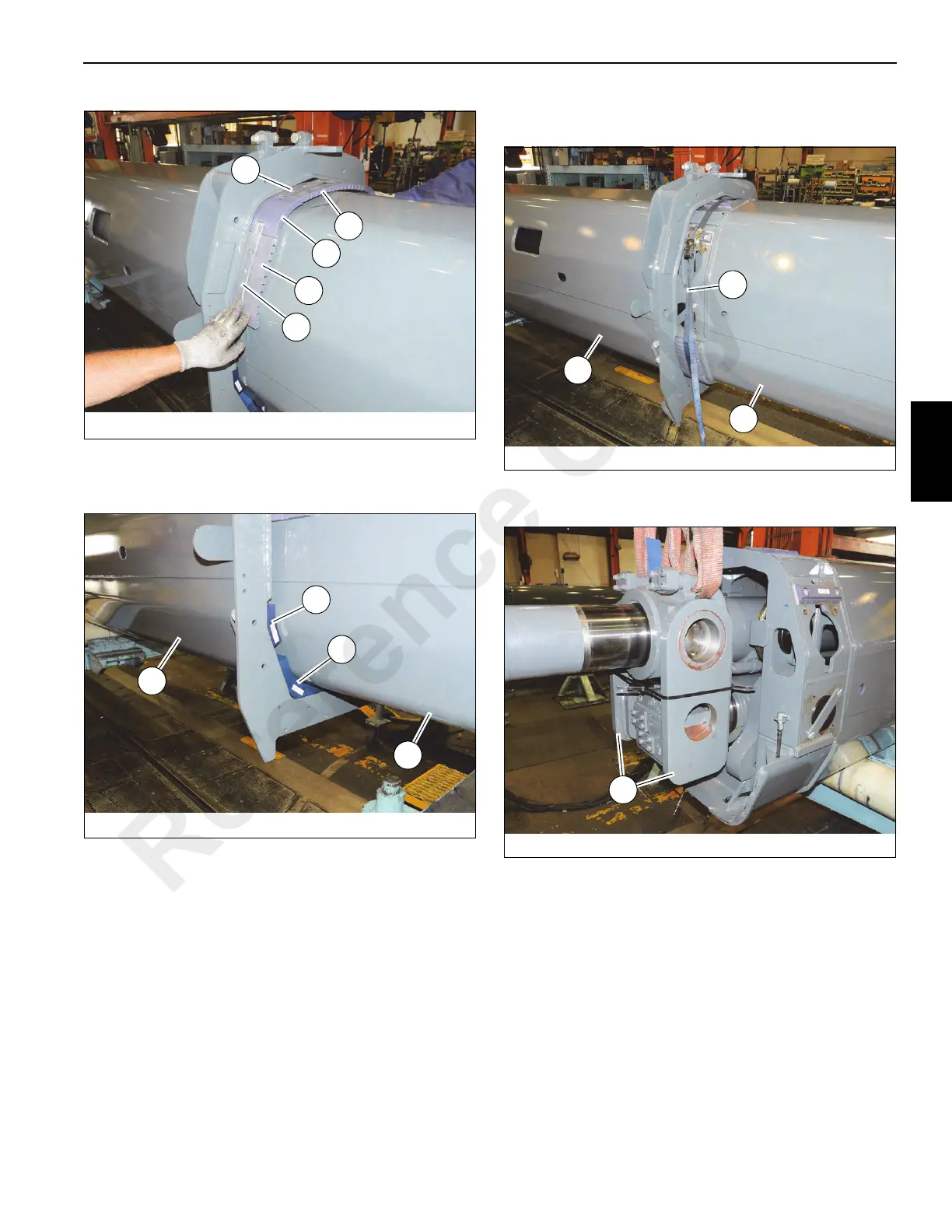

FIGURE 4-15
9044-60
207
206
210
209
211
FIGURE 4-16
9044-38
301
201
204
205
FIGURE 4-17
9044-59
301
201
N
FIGURE 4-18
9044-56
503
Reference Only
