Manitowoc Grove GRT880 Service Manual

BOOM GRT880 SERVICE MANUAL
4-18
Published 10/19/2017, Control # 618-00
18. Remove bolts (225) securing top and side wear pads
(224) and shims (222, 223) to tele 1 (201) (see
Figure 4-119).
19. Remove two bolts and washers (231, 243) remove pin
(213) to each side of tele 1 (201) (see Figure 4-12).
Remove pins (213).
20. Pull tele 2 (301) out several feet from tele 1 (201),
ensuring telescope #1 (502) and #2 (501) pass through
rear of tele 1 without hitting.
21. Remove bolts, washers, lock washers, and nuts (238,
235, 236, 247) securing bottom left and right side stop
plates (216) to front of tele 1 (201) (see Figure 4-13).
22. Remove bolts (245) securing top left and right side
shims (217) and stop blocks (218) to front of tele 1 (201)
(see Figure 4-13).
23. Remove left and right side bottom and middle wear pad
adjusting bolts (249) and twelve set screw (239) from
front of tele 1 (201).
24. Remove shims (219), flexible wear pads (206, 207,
209), and bars (210, 211) from between tele 1 (201) and
tele 2 (301) (see Figure 4-14, Figure 4-15).

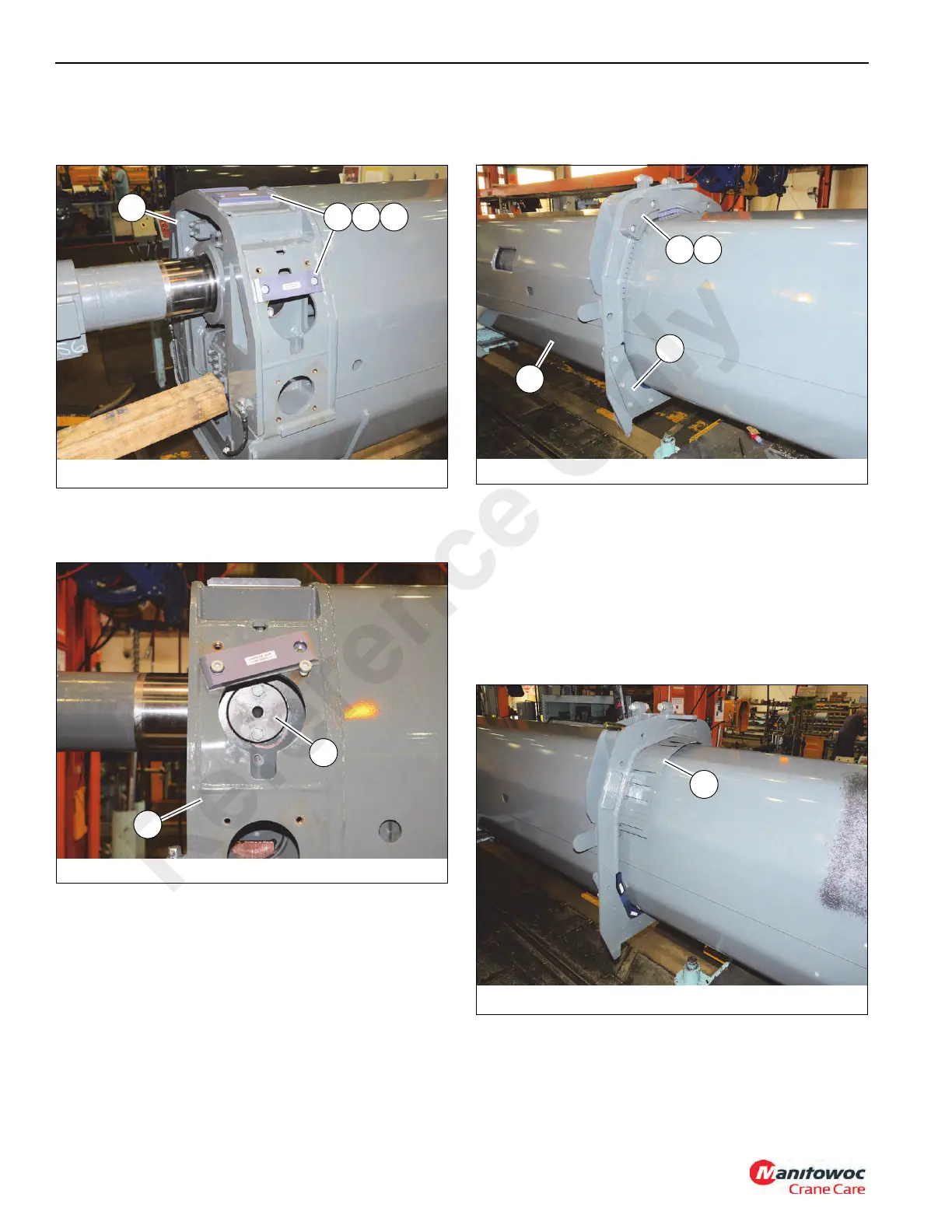

FIGURE 4-11
9044-63
223 224
201
222
FIGURE 4-12
9044-62
213
201
FIGURE 4-13
9044-61
218217
201
216
FIGURE 4-14
9044-42
219
Reference Only
