Manitowoc Grove RT530E-2 Service And Maintenance Manual

HYDRAULIC SYSTEM RT530E-2 SERVICE MANUAL
2-66 Published 4-22-15, Control # 556-00

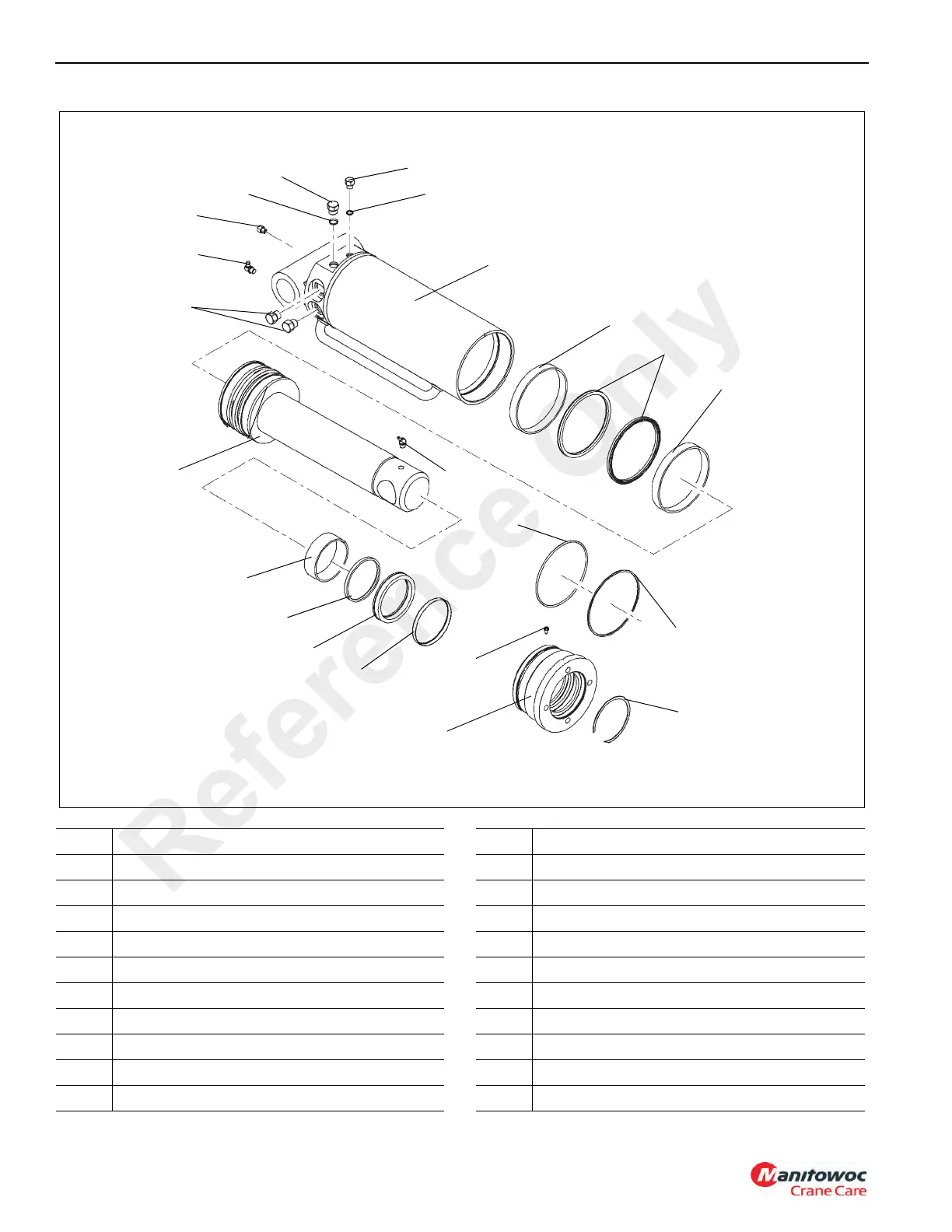

FIGURE 2-37
6732
3
8
4
6
2
9
17
10
5
5
11
18
1
13
14
15
16
17
7
12
19
20
Item Description
1 Barrel
2 Rod Assembly
3 Head
4 Lip Seal
5 Wear Ring
6O-ring
7 Backup Ring
8 Wear Ring
9 Buffer Ring
10 Lip Seal
Item Description
11 Wiper Ring
12 Retainer Ring
13 Bleeder Plug
14 Grease Fitting
15 Grease Fitting
16 Screw
17 O-ring
18 Plug
19 Plug
20 Check Valve
Reference Only
