Manitowoc Grove RT530E-2 Service And Maintenance Manual

Published 4-22-15, Control # 556-00 2-65
RT530E-2 SERVICE MANUAL HYDRAULIC SYSTEM
2
GROVE

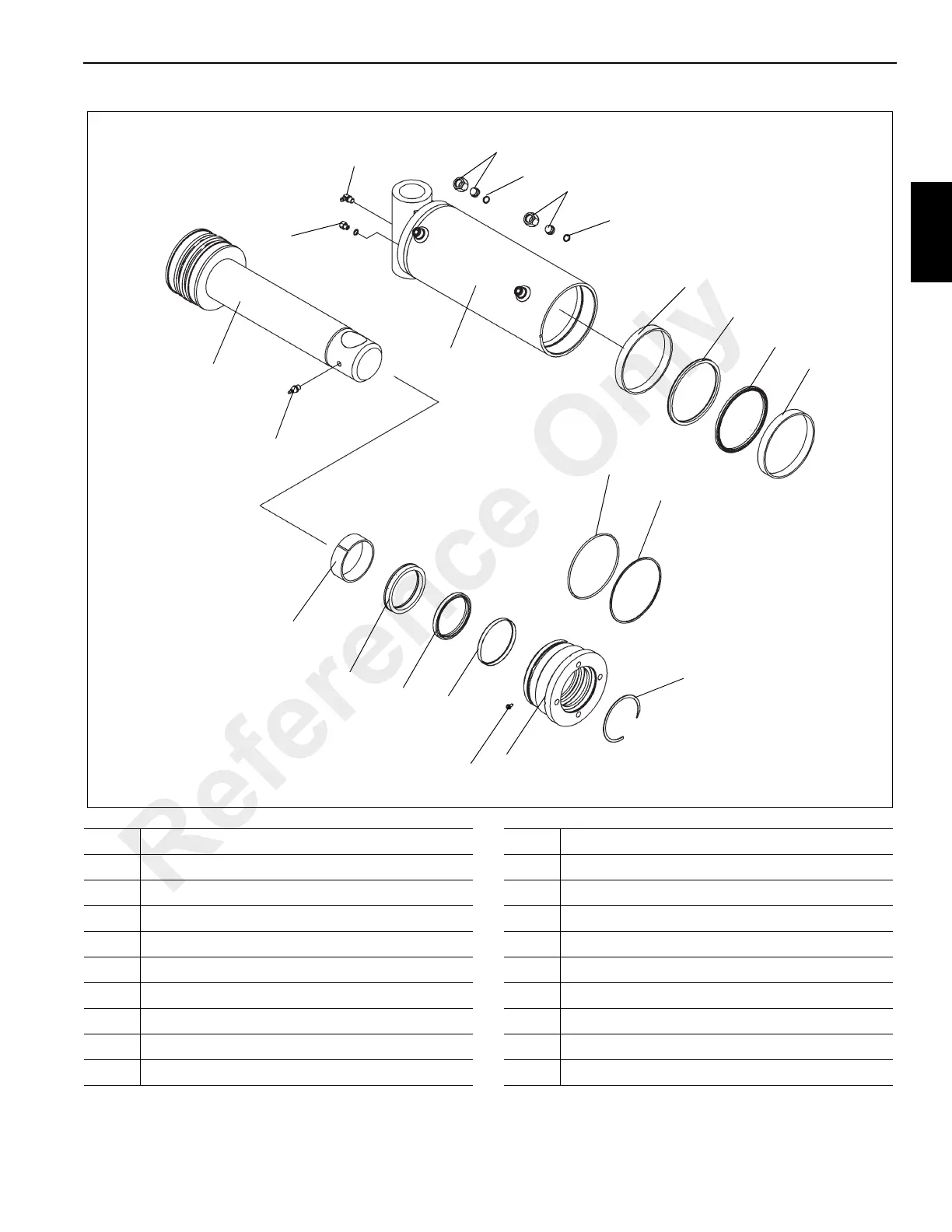

FIGURE 2-36
6731
3
8
4
6
2
9
17
10
5
5
11
18
1
13
14
15
16
18
17
4
7
12
Item Description
1 Barrel
2Rod
3 Head
4 Lip Seal Ring
5 Wear Ring
6O-ring
7 Backup Ring
8 Buffer Ring
9 Wear Ring
Item Description
10 Lip Seal Ring
11 Wiper Ring
12 Retainer Ring
13 Bleeder Plug
14 Grease Fitting
15 Grease Fitting
16 Screw
17 O-ring
18 Cap Assembly
Reference Only
