HYDRAULIC SYSTEM RT530E-2 SERVICE MANUAL
2-10 Published 4-22-15, Control # 556-00
9
3
2
10
1
4
5
6727

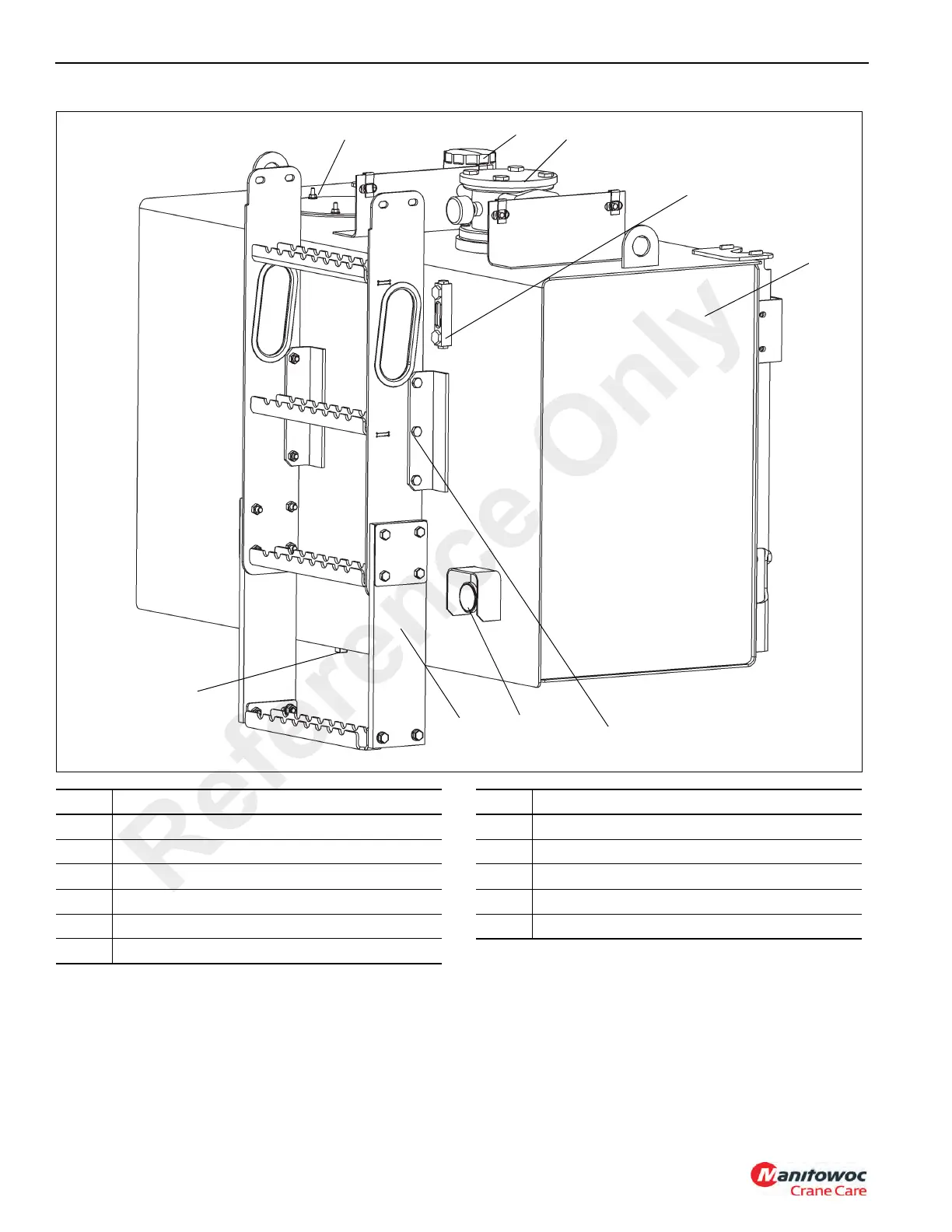

FIGURE 2-3
11
6, 7, 8
Item Description
1 Access Cover
2 Breather/Fill Cap
3 Return Line Filter
4 Reservoir
5 Sight Gauge
6 Capscrew
Item Description
7 Hex Locknut
8 Flatwasher
9 Thermometer (Temperature Gauge)
10 Ladder
11 Magnetic Plug
Reference Only
