RT530E-2 SERVICE MANUAL HYDRAULIC SYSTEM
2
GROVE

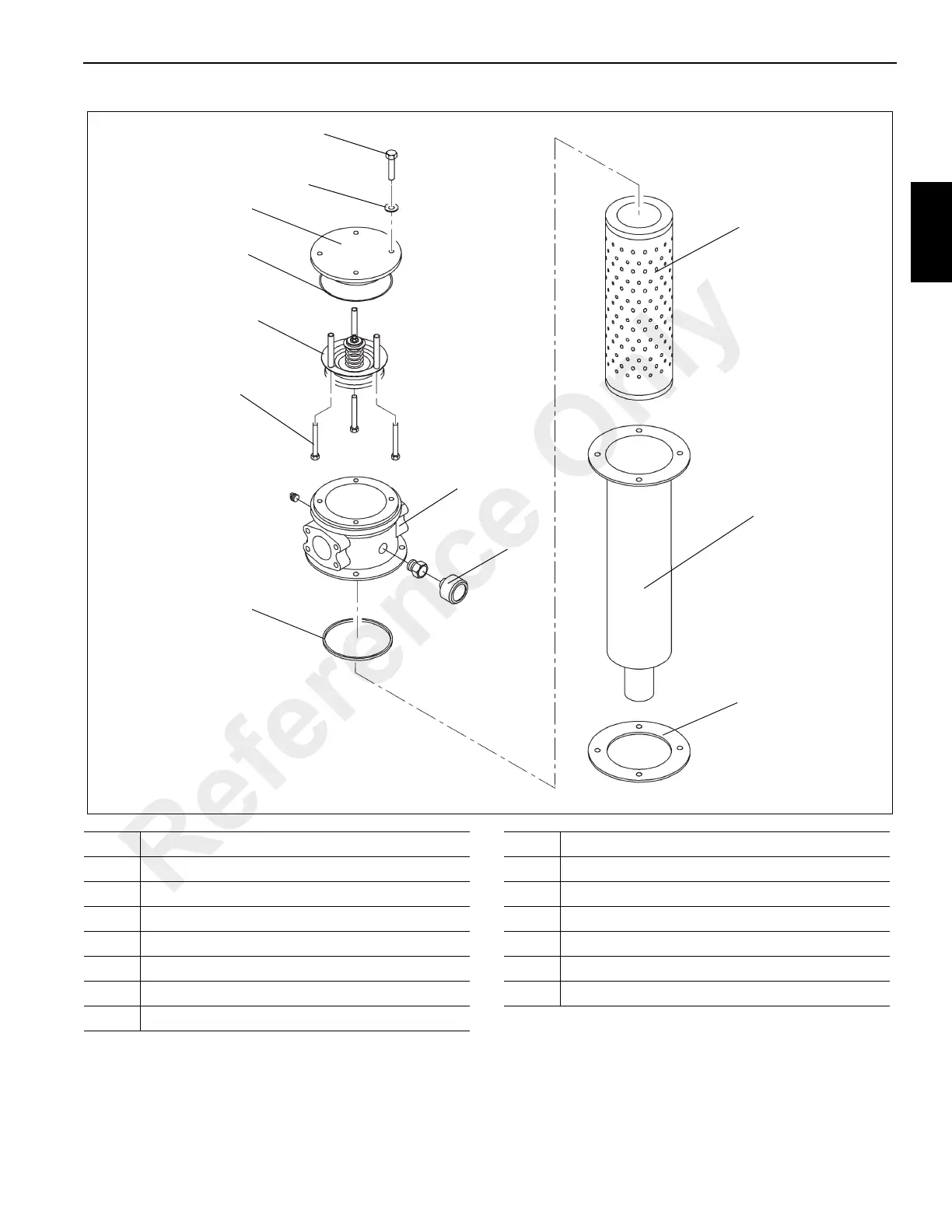

FIGURE 2-4
10
11
1
9
4
8
3
7
2
5, 6
12
13
6728
Item Description
1 Capscrew
2 Washer
3Cap
4O-ring
5 Bypass Valve
6Spacer
7 Capscrew
Item Description
8 Filter Head
9 Gauge
10 O-ring
11 Element
12 Bowl
13 Gasket
Reference Only
