RT530E-2 OPERATOR’S MANUAL OPERATING CONTROLS AND PROCEDURES
Cold Engine
The engine warning and engine stop indicators will illuminate
and go off in sequence after about two seconds (as a check)
when the key is first turned on. If an indicator comes on and
continues to blink after initial start-up, there is a problem that
needs to be corrected. If the engine warning icon is selected,
a screen will open listing the engine error codes.
An engine block heater and grid heater are provided to aid in
cold-starting.
1. Ensure the emergency stop switch is not pressed.
2. Set the parking brake to ON and position the
transmission shift lever to neutral.
NOTE: The engine will not crank unless the transmission
shift lever is in neutral.
NOTE: The engine “wait to start” indicator located on the
top left side of the front console illuminates amber
for a period of time when the ignition is turned to
the on position. The engine should not be cranked
until the indicator turns off.
3. Turn the key to the first position. The CCS screen will
provide data for the various engine systems and alert
the operator to any detected fault codes. Sound the horn
(left of steering wheel) once.
4. Turn the ignition switch to start (far right position) and
release immediately when the engine starts. Do not
push or hold the throttle down. The ECM will
automatically provide the proper amount of fuel to start
the engine.
5. Allow the engine to warm up for about five minutes
before applying a load. Do not race the engine for a
faster warm up.
Idling the Engine
Idling the engine unnecessarily for long periods of time
wastes fuel and fouls injector nozzles. Unburned fuel causes
carbon formation; oil dilution; formation of lacquer or gummy
deposits on the valves, pistons and rings; and rapid
accumulation of sludge in the engine.
NOTE: When prolonged engine idling is necessary,
maintain at least 800 rpm.
Racing the Engine
DO NOT race the engine during the warm-up period or
operate the engine beyond governed speed (as might occur
in downhill operation or downshifting). Engine bearings,
pistons, and valves may be damaged if these precautions
are not taken.
Shutdown Procedure
1. Allow the engine to run at fast idle speed for about five
minutes to avoid high internal heat rise and allow for
heat dissipation.
2. Position the ignition switch to off (vertical position).
3. Drain the fuel filter-water separator.

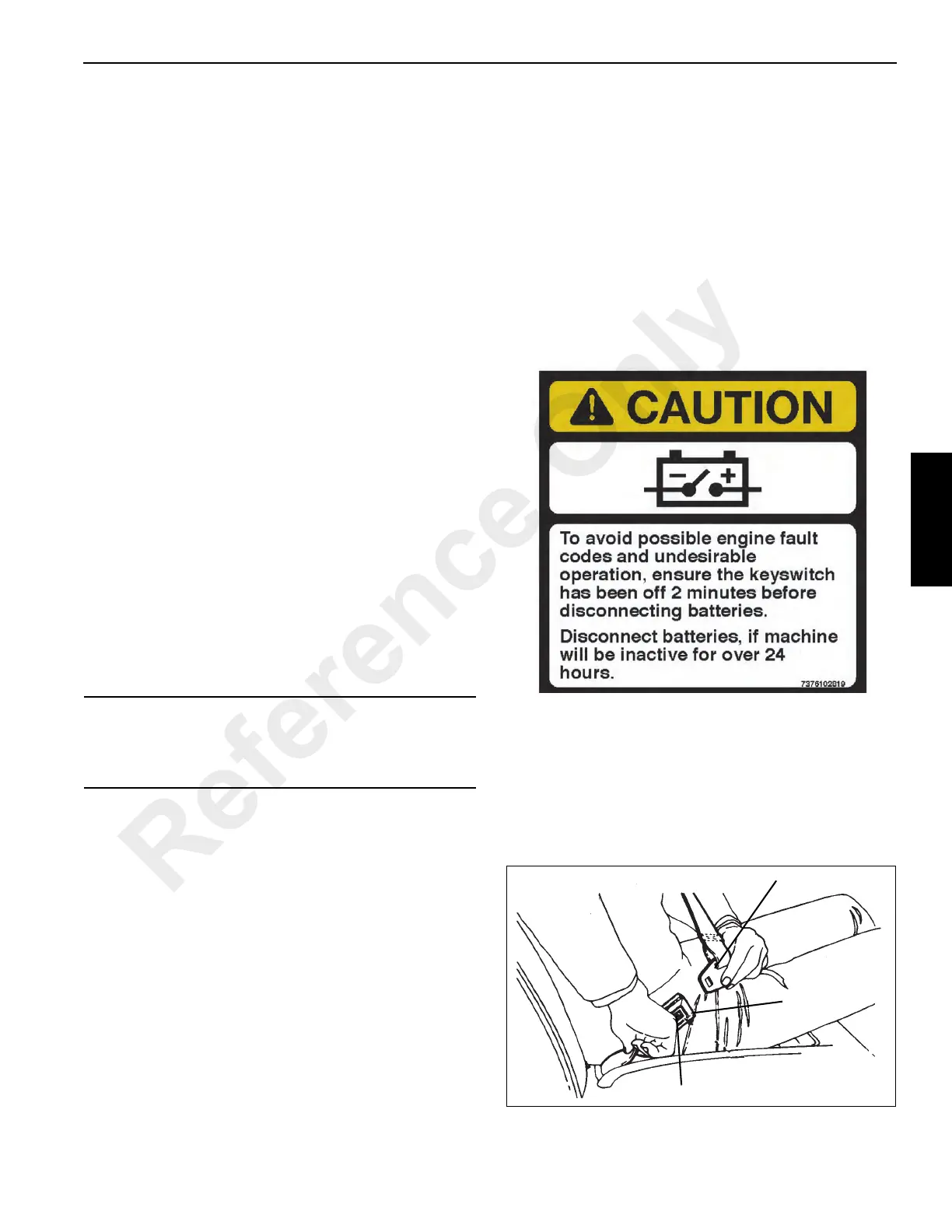

Battery Disconnect
The battery disconnect switch is located in the battery box on
the left side of the crane. To disconnect the batteries, turn the
battery disconnect switch to OFF. Turn the switch to ON to
connect the batteries.
Crane Travel Operation
Seat Belts
CAUTION
If oil pressure and/or temperature indicator(s) do not
display the proper readings, shut down engine and
correct malfunction.
Latch Plate
Buckle
Push Button
FIGURE 3-7
Reference Only
