Manitowoc Grove RT765E-2

4-25
Published 9-04-2014, Control # 422-08
RT765E-2 SERVICE MANUAL BOOM
4
GROVE
D
1
7
4
3
2
5
B
C
E
A
8
13
6
11
12
9
10
6056

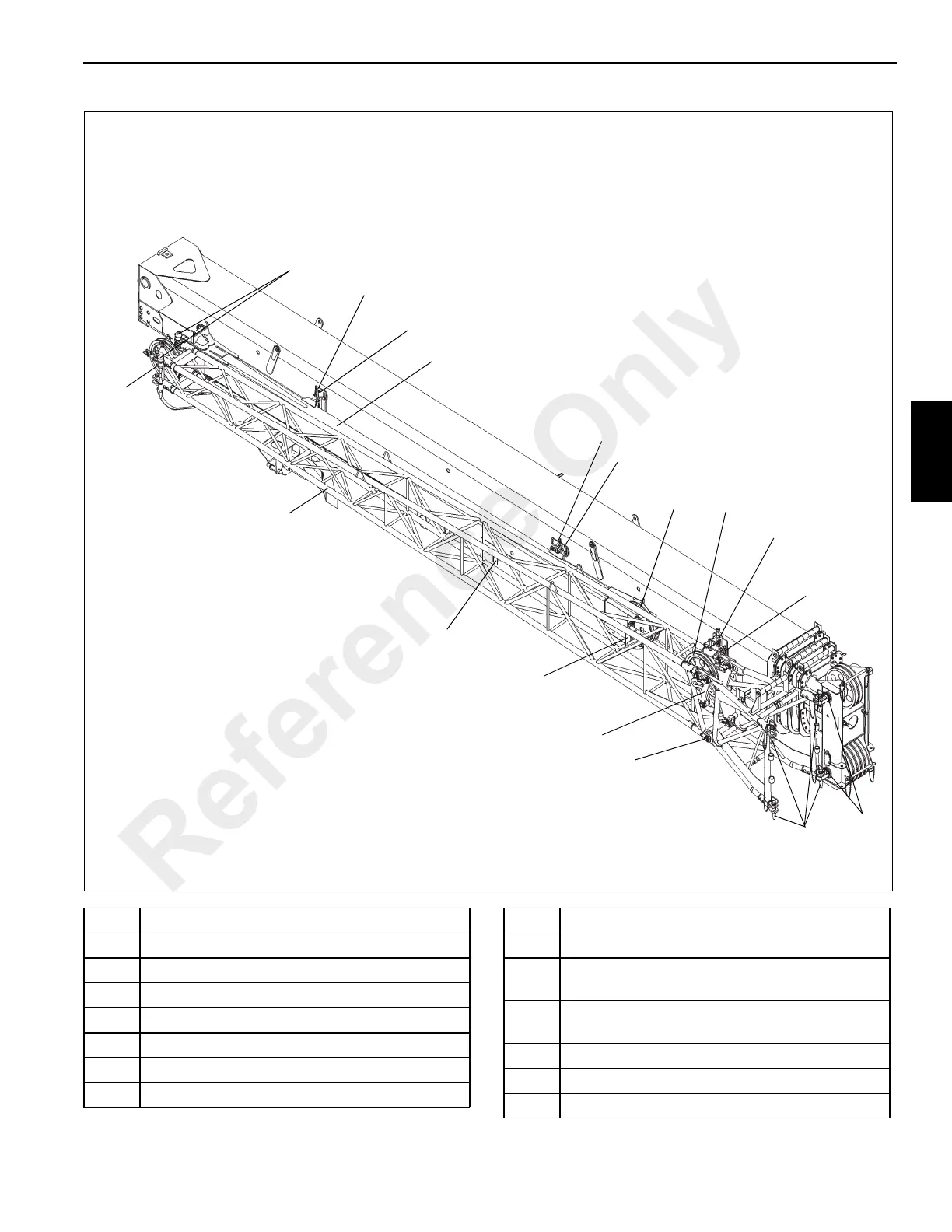

FIGURE 4-5
Item Description
1 Base To Fly Attachment Pins
2 Boom Extension Base Section
3 Boom Extension Fly Section
4 Fly Rear Stowage Bracket
5 Stinger Section Front Stowage Bracket
6 Front Stowage Bracket
7 Swingaway Base Sheave
Item Description
8 Mast Assembly
9
Boom Nose To Boom Extension Attachment
Anchor Fittings
10
Boom Nose To Boom Extension Attachment
Pins
11 Offset Links
12 Offset Pivot Point
13 Stinger Sheave
Reference Only
