Detail E
NOTE: Offset Shown At 25 Degrees.
To Obtain 45 Degree Offset,
Remove Pins (Item 10) and
Stow In Lug.
6658-1
Item Description
1
Boom Extension Base
Section
2 Boom Extension Fly Section
3 Fly Sheave
4 Cable Retainer Pins
5 Latch Hook
6Spring
7 Latch Bar
1
6
5
2
4
7
3
4
2
9
8
1
8
10
11
6
4
3
5
7
Item Description
1 Boom Nose Upper Sheaves
2 Mast Assembly
3 Offset Links
4 Offset Pivot Points
5
Offset Link Pins Stowage
Lugs
6 Mast Assembly Pin
7 Boom Nose Lower Sheaves
8
Boom Extension Attachment
Pins
9
Boom Extension Attachment
Pins Stowage Lugs
10 Offset Link Pins
11 Zero Degree Offset Holes

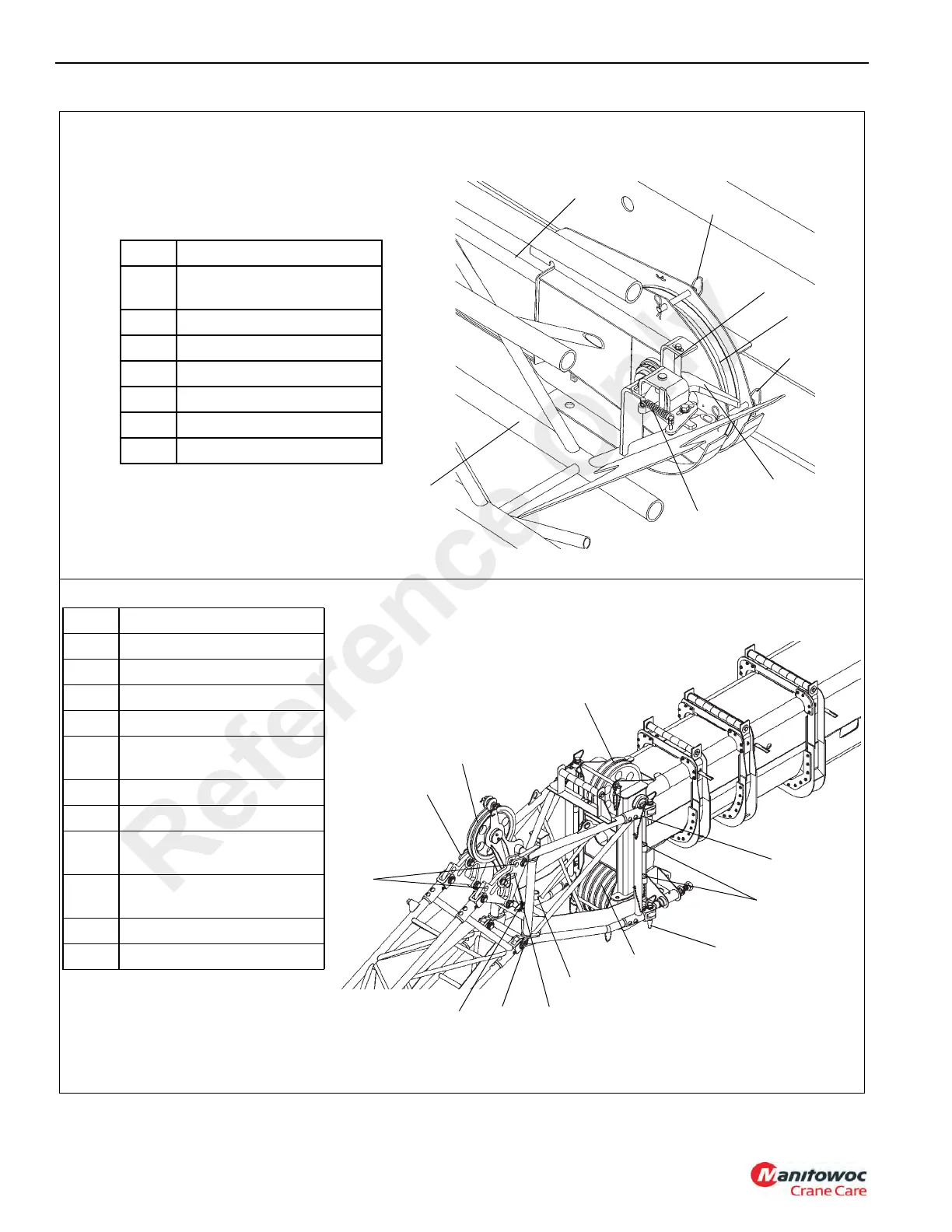

FIGURE 4-5 continued
To Next Page
