8-33
RT765E-2 SERVICE MANUAL UNDERCARRIAGE
8
Published 9-04-2014, Control # 422-08
GROVE

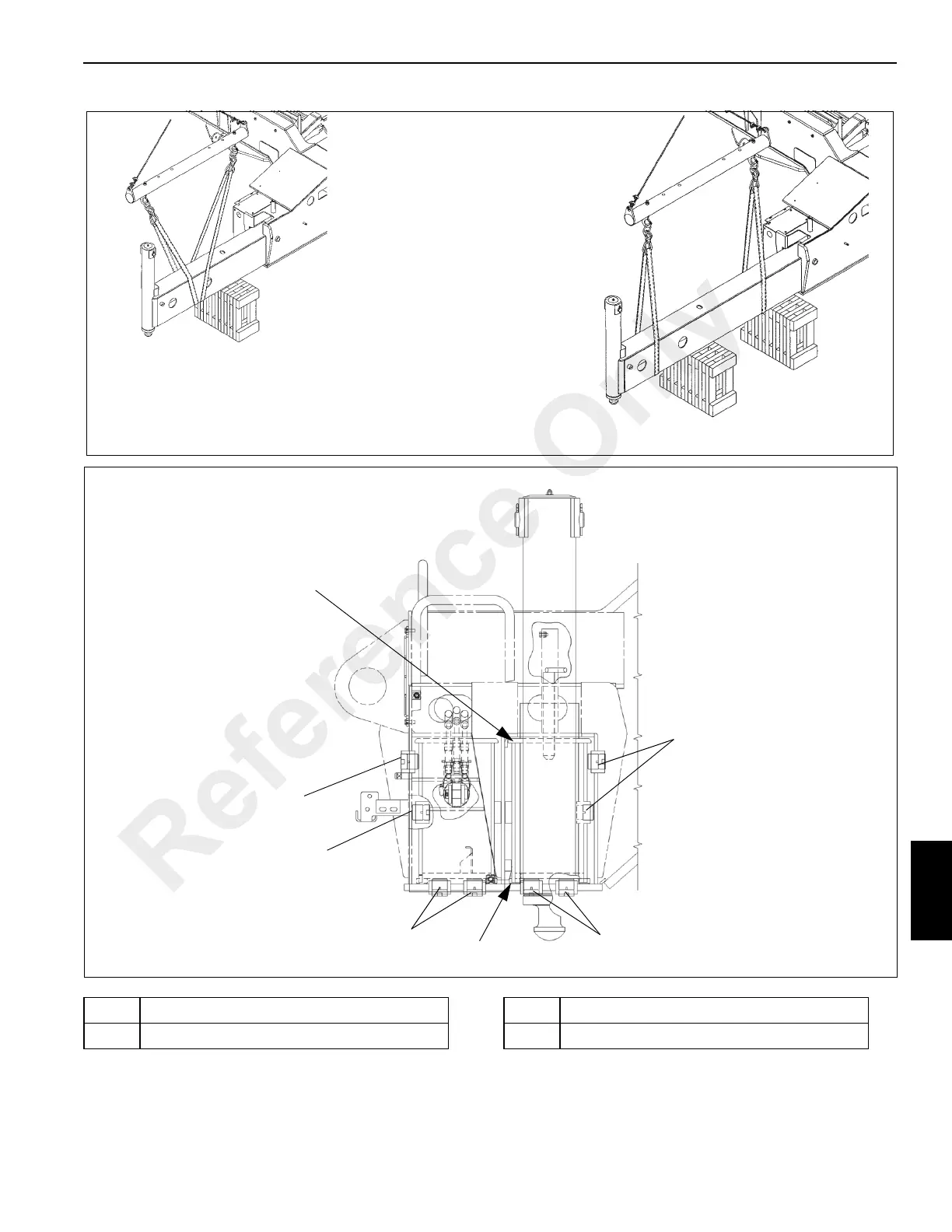

FIGURE 8-30
Rear Outriggers Shown
FIGURE 8-31
6065
0.06 in (1.5 mm) Gap
0.06 in (1.5 mm) Gap
1
1
2
2
1
Item Description
1 Side Wear Pads and Setscrews
Item Description
2 Bottom Wear Pads and Setscrews
Reference Only
