A deflector must be installed on all multiple
evaporator models used in bin applications
Ice Machine on a Dispenser Installation
No deflector is needed for machines that match the
size of the dispenser (30” head section on a 30”
dispenser) unless required by the dispenser
manufacturer. Adapters are required when a smaller
ice machine is going on a larger dispenser (22”
machine on a 30” dispenser)
.
Manitowoc Ice/Beverage Ice Machines require
an adapter for mounting. Adapters are not
included with the ice machine, dispenser or bin
and must be ordered separately. When a non-
Manitowoc adapter is used, verify the adapter is
compatible with Manitowoc Ice/Beverage Ice
Machines prior to installation.
Ice Beverage ice machines, adapter plates and
adapter covers must be secured to the dispenser
to prevent tipping or dislodging during agitation

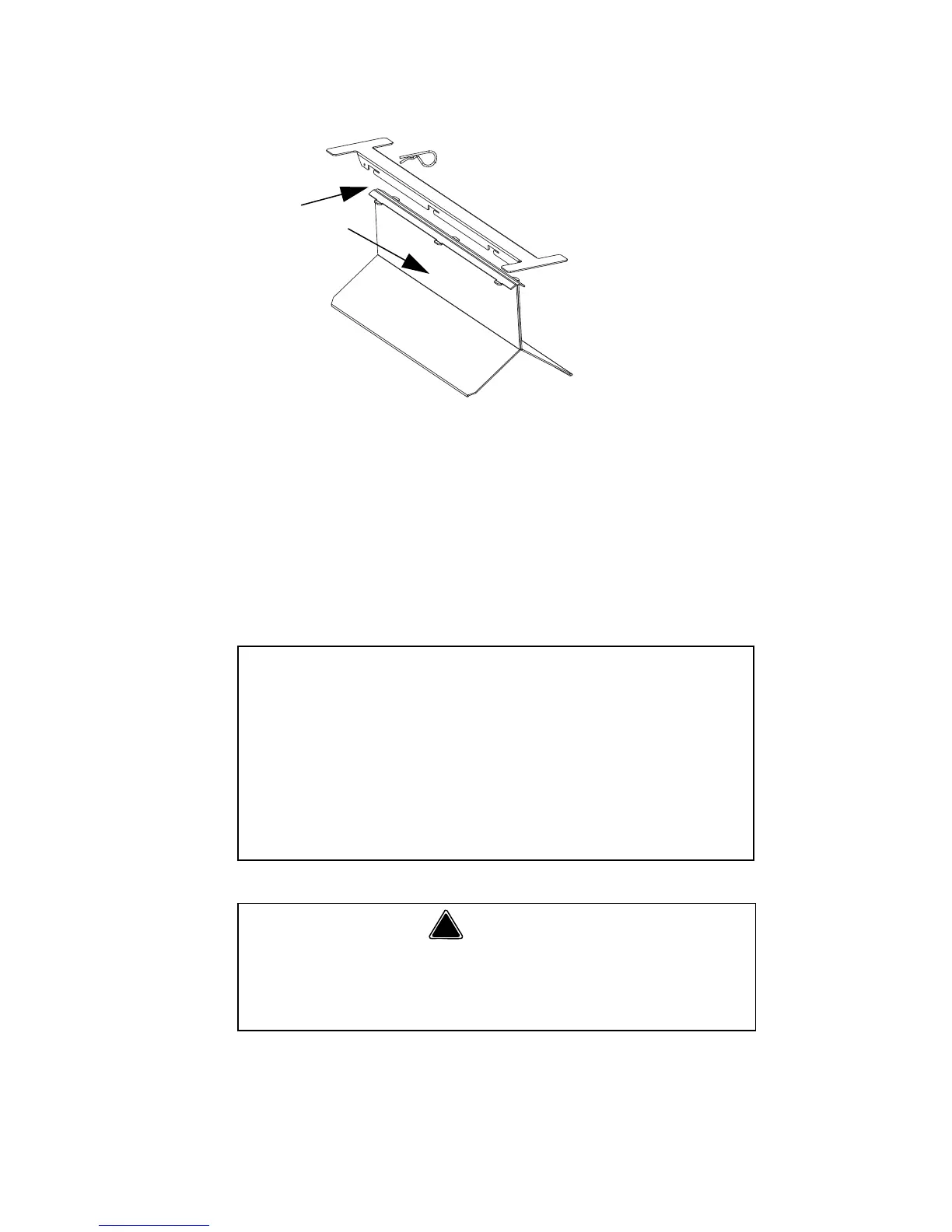

1. SLIDE
FORWARD
2. LOCK IN PLACE WITH PIN
