NBT60XL OPERATOR MANUAL INTRODUCTION
1
NATIONAL CRANE Published 11-01-2020 Control # 710-00 1-3
9592

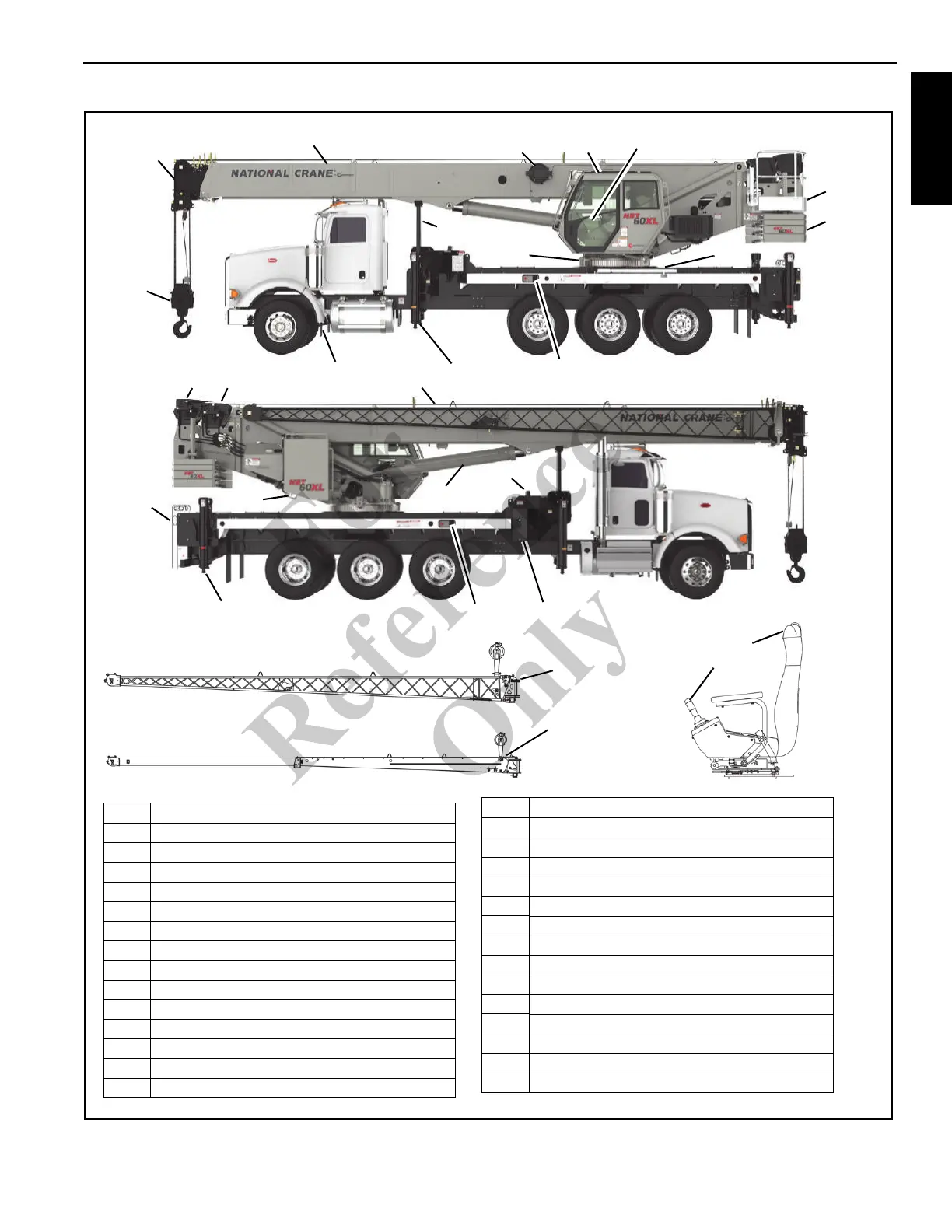

Item Component
1 Cab Crane Controls (Inside Cab)
2Cab
3 RCL, Display Screen (Inside Cab)
4 Rated Capacity Limiter (RCL) Reel
5Boom
6Boom Nose
7Boom Rest
8 Lift Cylinder
9a Main Hoist (front)
9b Auxiliary Hoist (rear)
10 Outrigger Beam
11 Outrigger Box
12 Telescoping Jib
13 Lattice Jib
14 Turret Bearing
15 Hoist Rope
16 Ground Outrigger Control
17 Hydraulic Pump
18 Cab Outrigger Control (Inside Cab)
19 Cab Seat
20 Access Steps
21 Hydraulic Tank
22 Outrigger Stabilizer
23 Counterweights
24 Cab Joysticks
25 Maintenance Platform
26 Hook Block
27 Counterweight Mounting Lugs
Item Component
24
2
12
1
22
FIGURE 1-2
3
17
7
6
5
8
16
4
9a
10256
15
14
19
20
21
10257
7450
23
27
20
18
9b
9591
13
10
26
16
25
22
