CAB OUTRIGGER CONTROL
.
Module Power
The module power indicator is located on cab outrigger
control panel and indicates the outrigger control station
(Figure 3-2) is activated when a green LED illuminates. The
control station cannot be activated if the crane is performing
another function. (For example: operating the boom.)
Outrigger Beam Selector Button
The outrigger beam selector buttons (Figure 3-2 and
Figure 3-3) are used to operate the front or rear outrigger
beams. Both sides can be operated from the cab outrigger
control panel.
NOTE: The following details apply to both ground station
control panels as indicated.
10258
8232-5

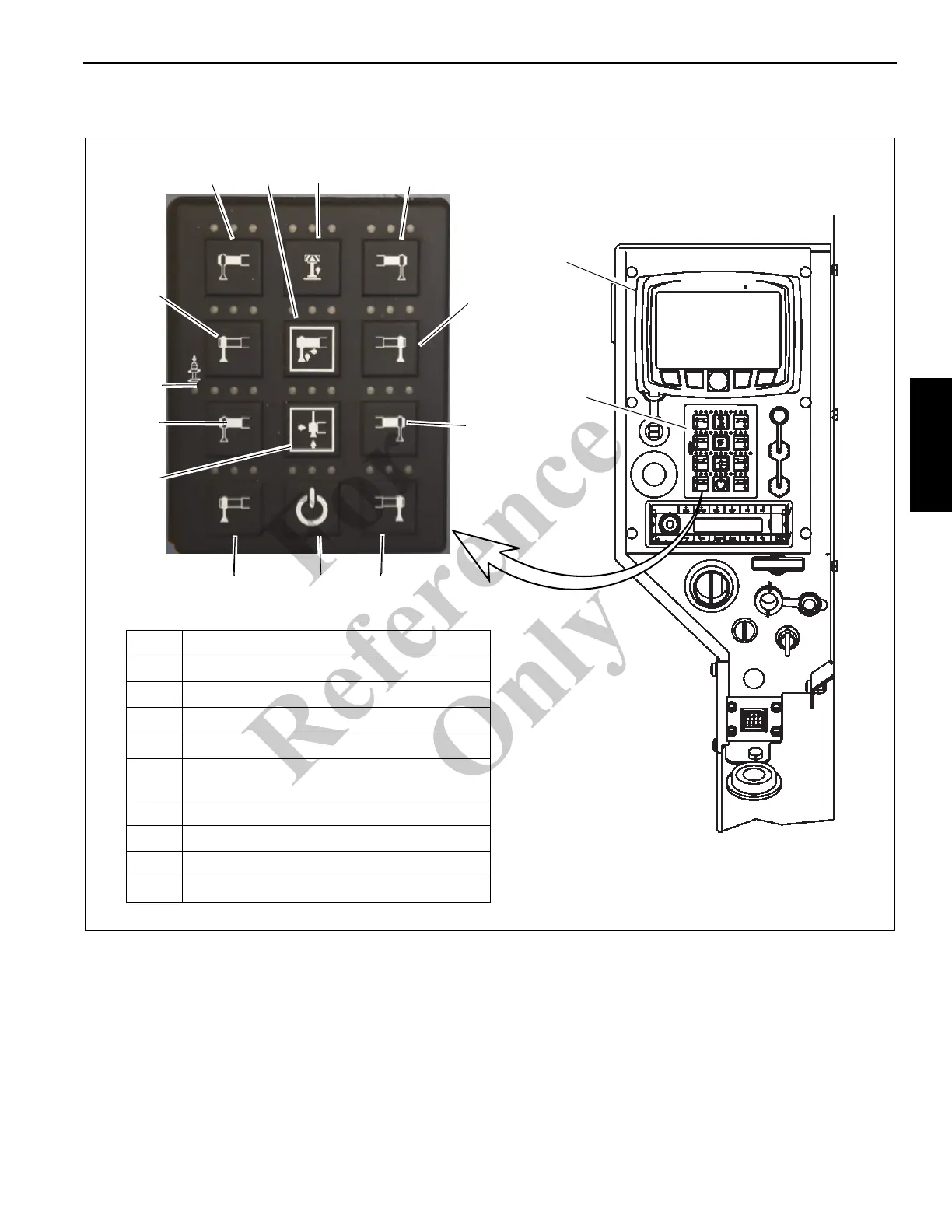

FIGURE 3-2
3
6
2
4
7
1
1
1
2
2
1
5
2
Item Description
1 Outrigger Beam Selector Button
2 Outrigger Jack Selector Button
3 Extend Button
4 Retract Button
5
Single Front Outrigger (SFO) Button (if
equipped)
6 Enable Button
7 Module Power Indicator
8 Console Panel
9 Emergency Stop Switch
9
8
REAR
FRONT
LEFT
SIDE
RIGHT
SIDE
