RATED CAPACITY LIMITER OPERATOR MANUAL NBT60XL
7-8 Published 11-01-2020 Control # 710-00
RCL SETUP
The RCL setup is where the lifting configuration of the crane
is entered into the system. The RCL setup is required before
the crane can be operated.
Perform the following steps to setup the RCL:
Step 1: Configuring a Personnel Platform
Step 2: Configuring the Boom
Step 3: Configuring the Counterweight(s)
Step 4: Configuring the Outriggers
Step 5: Configuring Hoist and Reeving
Step 6: Confirming the Configuration
When the crane ignition switch is turned on, the RCL powers
up and displays the National Crane logo screen for a few
seconds followed by Screen 1 in the RCL setup sequence.
Select the RCL setup icon on the main menu to begin RCL
setup (Figure 7-2). When RCL setup is complete, the
Operating Mode screen appears. For more information, see
“Operating Mode” on page 7-12.
Step 1: Configuring a Personnel Platform

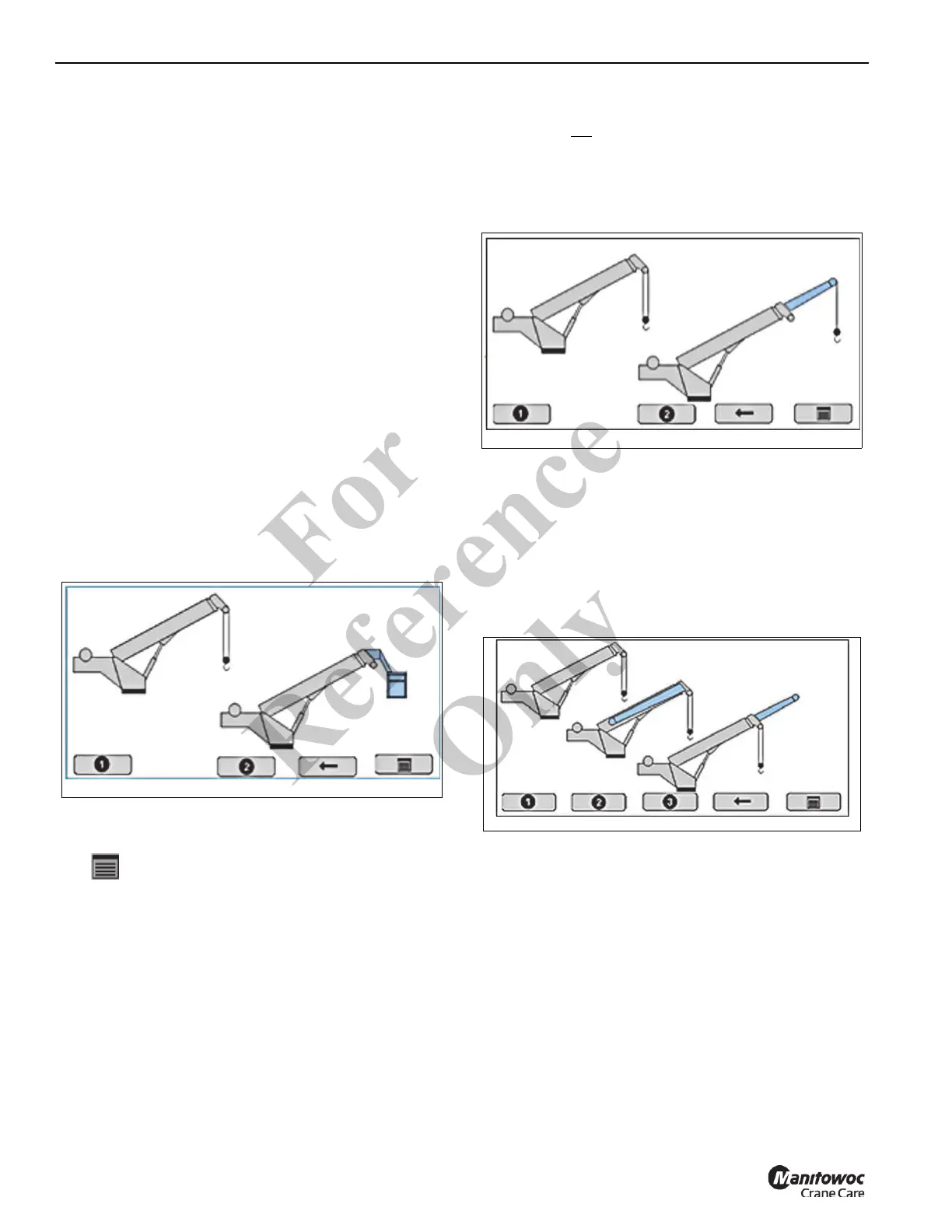

Screen 1
Is a personnel platform attached to the boom or the tip of the
jib nose? Select 1 (no) or 2 (yes).
• The Main Menu button here returns to the Main
Menu.
• If a personnel platform is selected and the machine is
shut down, the RCL restarts without having to complete
the setup sequence. This is to enable personnel
platform with radio remote operation.
Step 2: Configuring the Boom
If the crane is not configured with a jib, the following set up
screens will not appear. The system detects that no jib has
been configured for use on the crane and bypasses these
screens.
Screen 2
Is a jib attached to the boom nose? Select 1 or 2.
NOTE: Screens 3-3 and 4-2 do not apply to cranes
equipped with a fixed or non-telescoping jib
extension (such as a Lattice jib) and should not
appear as a screen selection. The RCL control
system bypasses these screens and moves to
Screen 4-1.
Screen 3-1A
Selected 1 on Screen 2. Now select 1, 2, or 3 on Screen 3-
1A:
• 1 — No jib
• 2 — Jib stowed on the side of the boom
• 3 — Jib deployed but not reeved
• Screen 3-1A appears only if the crane is not equipped
with a personnel platform.
8807-8
8807-9
8807-10
Fo
r
Reference
Only
