Manitowoc Shuttlelift CD5515-2 Service And Maintenance Manual

GROVE Published 1-20-2017, Control# 483-02 4-39
CD5515-2/YB5515-2 SERVICE MANUAL HYDRAULIC SYSTEM
4
a0437

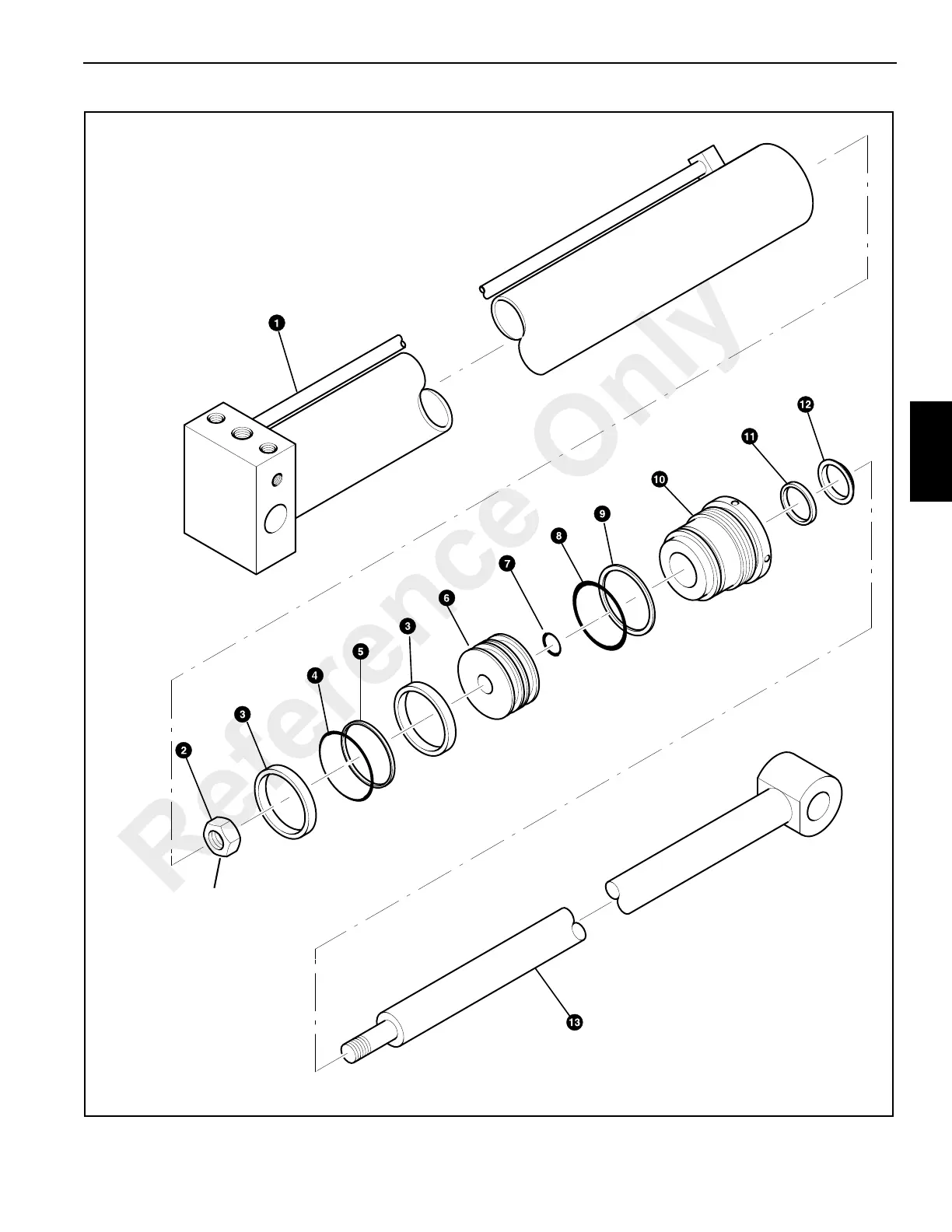

FIGURE 4-29
1. Cylinder Tube
2. Piston Nut
3. Wear Ring (2)*
4. O-Ring*
5. Piston Seal*
6. Piston
7. O-Ring*
8. O-Ring*
9. Back-Up Ring*
10. Gland Head
11. Rod Seal*
12. Seal Wiper*
13. Cylinder Rod
*= Seal Kit
Tighten nut to a torque
of 175 lb-ft. (238 Nm)
Vertical Outrigger Cylinder
Reference Only
