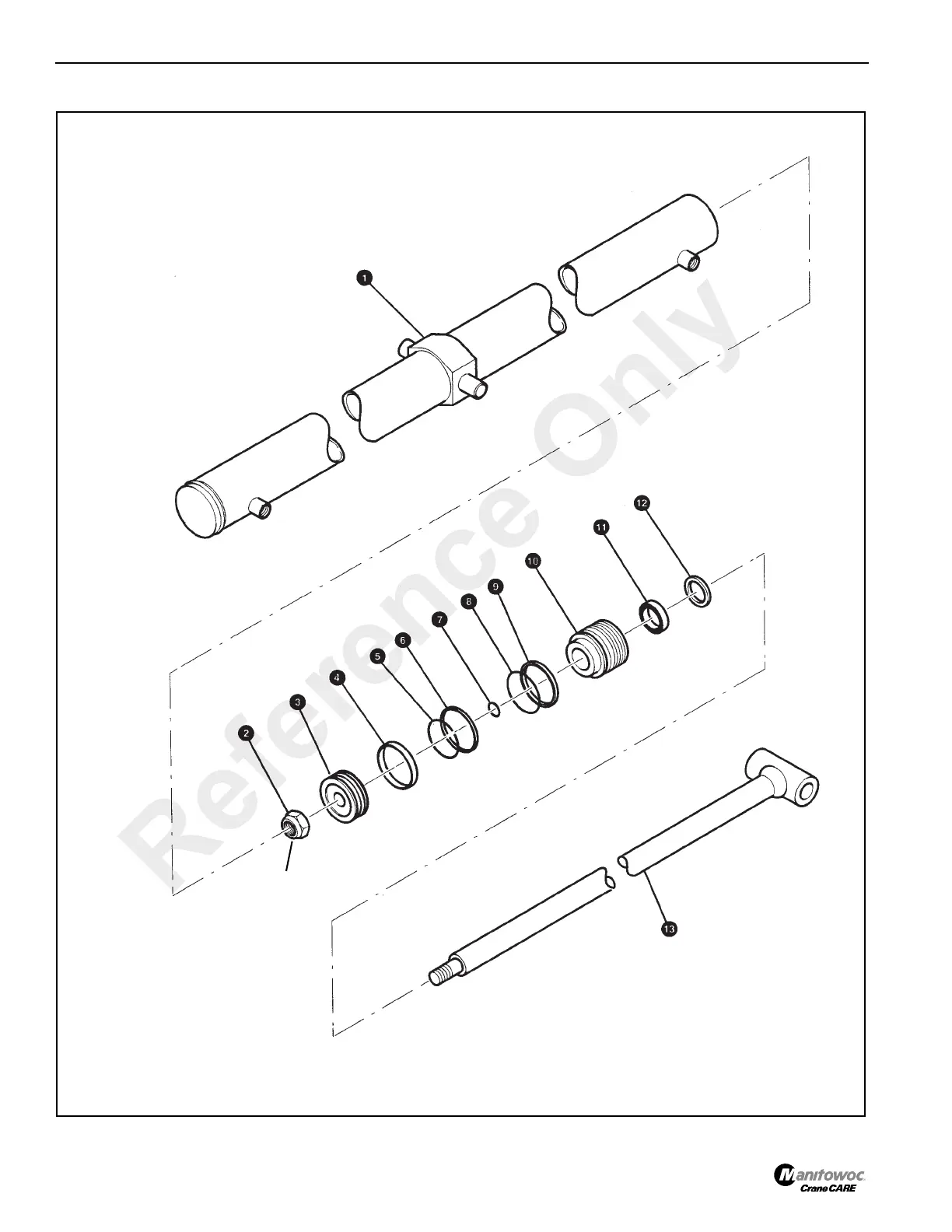

HYDRAULIC SYSTEM CD5515-2/YB5515-2 SERVICE MANUAL
4-38 Published 1-20-2017, Control# 483-02
a0440
FIGURE 4-28
1. Cylinder Tube
2. Piston Nut
3. Piston
4. Wiper*
5. O-Ring*
6. Seal*
7. O-Ring*
8. O-Ring*
9. Back-Up Ring
10. Gland Head
11. Seal*
12. Rod Wiper
13. Cylinder Rod
*= Seal Kit
Tighten nut to a torque
of 25 lb-ft. (34 Nm)
Horizontal Outrigger Cylinder
Reference Only
