Manitowoc Shuttlelift CD5515-2 Service And Maintenance Manual

GROVE Published 1-20-2017, Control# 483-02 4-37
CD5515-2/YB5515-2 SERVICE MANUAL HYDRAULIC SYSTEM
4
a0434

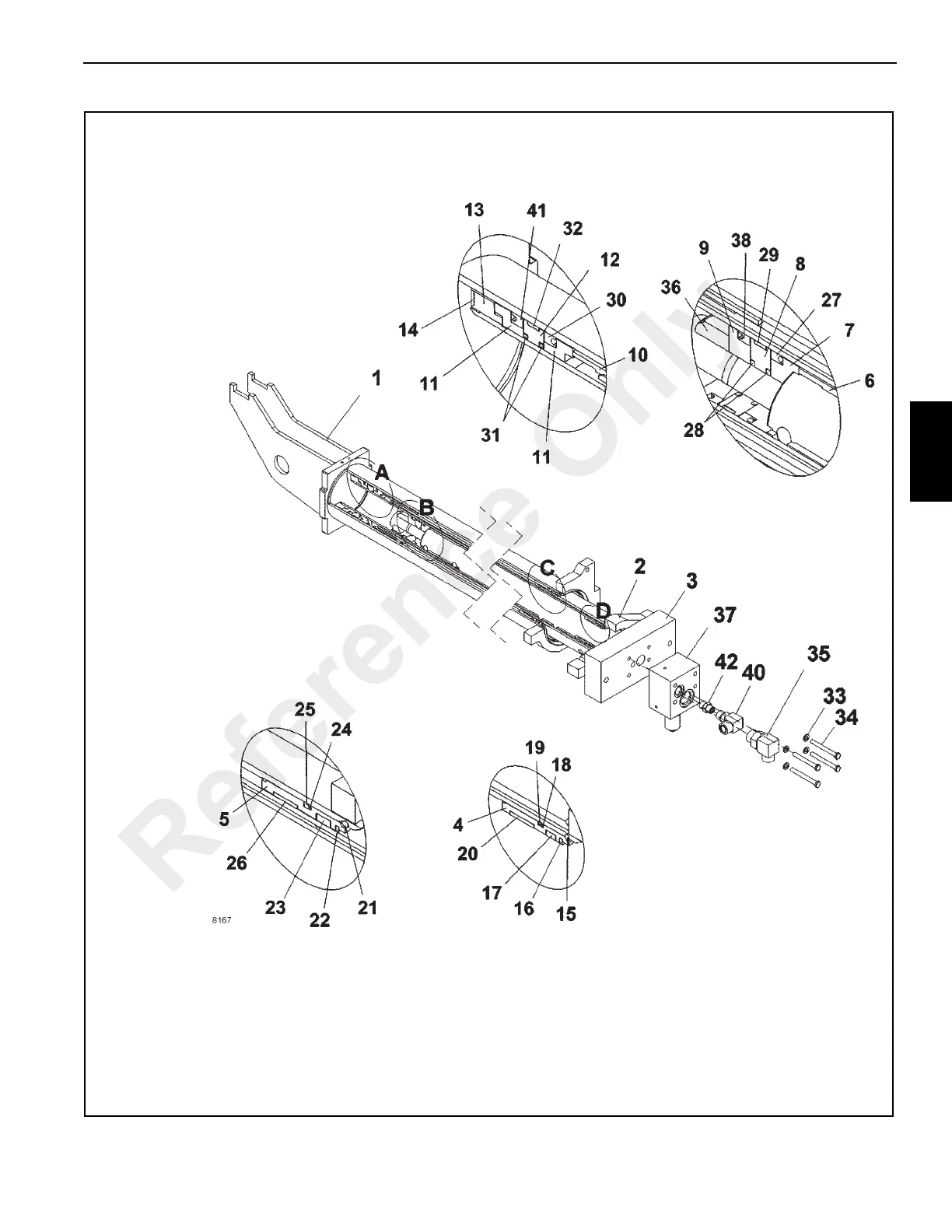

FIGURE 4-27
1. Barrel Assembly
2. Outer Shaft Assembly
3. Inner Shaft Assembly
4. Packing Gland
5. Packing Gland
6. Stop Tube
7. Mandrel
8. Piston
9. Mandrel
10. Stop Tube
11. Mandrel
12. Piston
13. Round Nut
14. Screw
15. Retaining Ring
16. Rod Wiper
17. Rod Seal
18. Backup Ring
19. O-ring
20. Wear Ring
21. Retaining Ring
22. Rod Wiper
23. Rod Seal
24. Backup Ring
25. O-ring
26. Wear Ring
27. Piston Seal
28. O-ring
29. Wear Ring
30. Piston Seal
31. O-ring
32. Wear Ring
33. Lockwasher
34. Capscrew
35. 45 Degree Elbow
36. Locknut
37. Holding Valve Assembly
38. Piston Seal
40. 90 Degree Elbow
41. Piston Seal
42. Strait Adapter
Telescope Cylinder
Detail A
Detail B
Detail C
Detail D
Reference Only
