PREVENTATIVE MAINTENANCE CD5515-2/YB5515-2 SERVICE MANUAL
5-14 Published 1-20-2017, Control# 483-02
NOTE: For more details on proper radiator checking and
maintenance procedures, see the engine manual
furnished with the crane.
Drain Water from Engine Fuel Filter
1. Shut off the engine and engage the parking brake.
2. See the engine manual furnished with the crane and
follow the water draining instructions.
Check Hydraulic Oil Level
If the hydraulic oil is consistently low, check for leaks in the
hydraulic system.
1. Be sure the boom is fully retracted and lowered and the
outriggers are retracted and up.
2. Level the crane, engage the parking brake and shut off
the engine.
3. Visually check the oil level on the hydraulic oil level sight
gauge (Figure 5-21). The hydraulic oil should be visible
in the sight gauge. If low, fill tank with clean
recommended hydraulic oil.

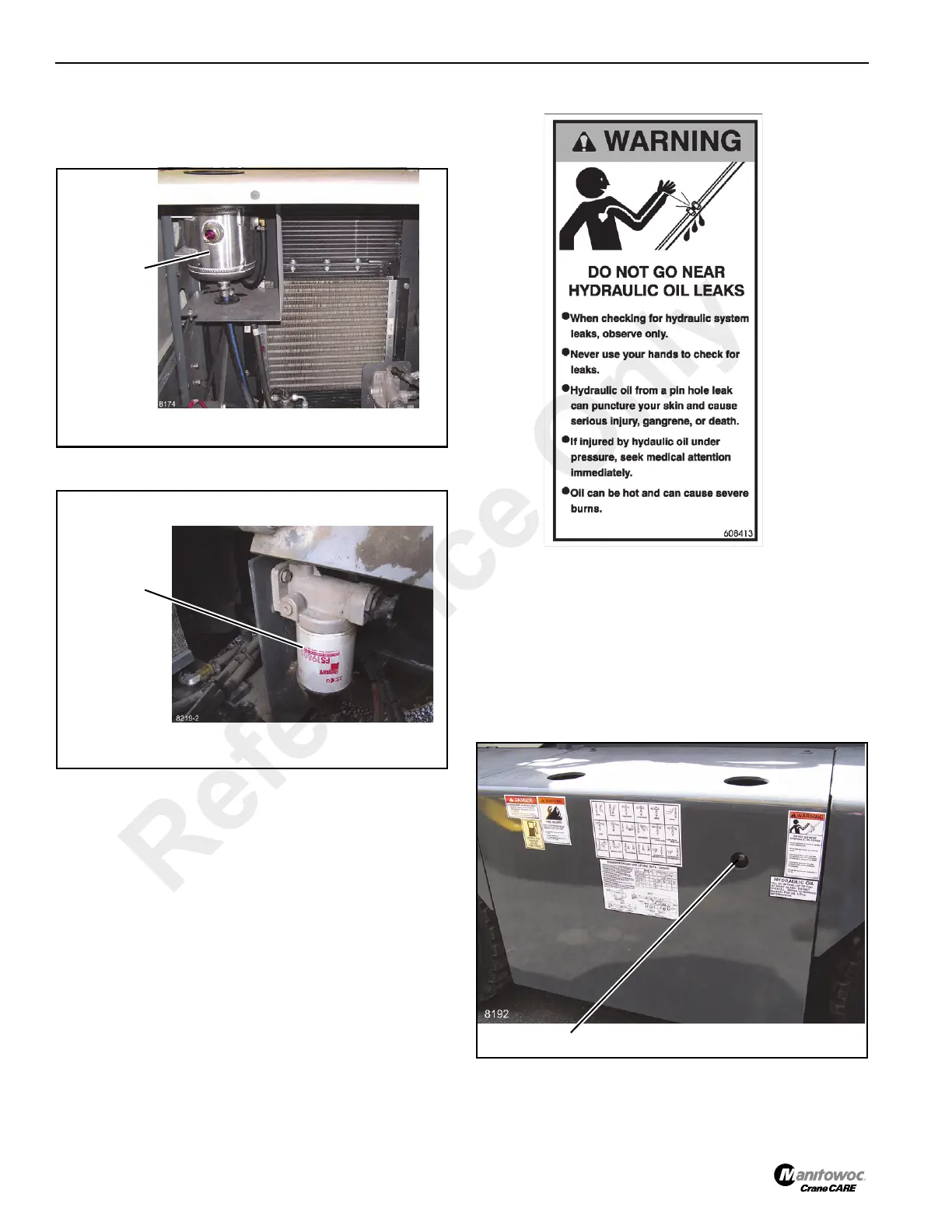

FIGURE 5-19
Overflow
Bottle
FIGURE 5-20
Fuel Filter/
Water
Separator
Hydraulic Oil Sight Gauge
FIGURE 5-21
