Manitowoc Shuttlelift CD5515-2 Service And Maintenance Manual

GROVE Published 1-20-2017, Control# 483-02 7-25
CD5515-2/YB5515-2 SERVICE MANUAL TRANSMISSION AND TORQUE CONVERTER
7

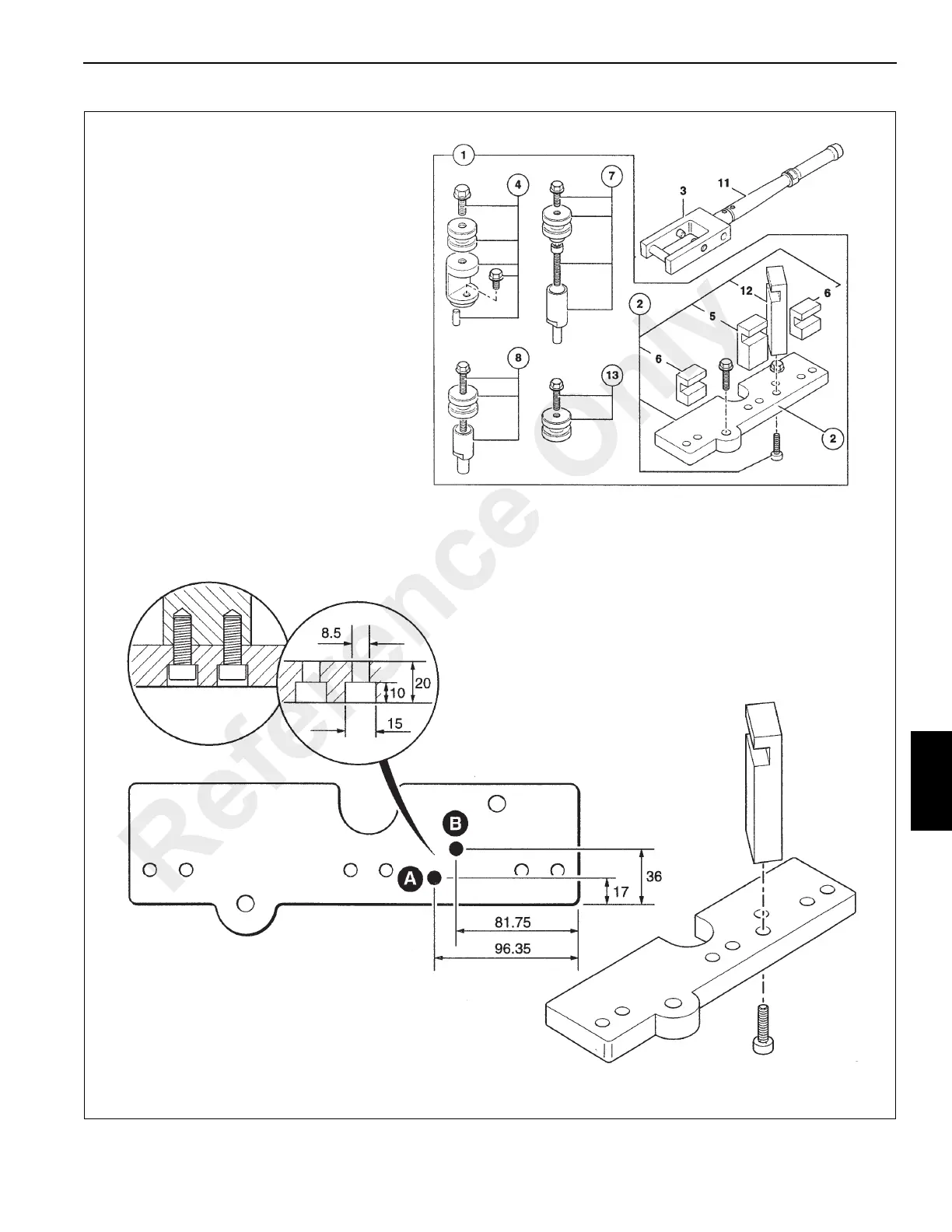

FIGURE 7-24
a1399
a1398
1. End Play Checking Kit (Includes Items 2 - 13)
2. Base Plate and Bolts
3. Yoke
4. Mainshaft Adapter
5. Pillar (20,75 mm)
6. Pillar (45,75 mm)
7. Setting Body (54 mm)
8. Setting Body (64 mm)
9. Setting Tool (12 mm)
10. Setting Tool (10 mm)
11. Setting Wrench - 0 - 74 lb-ft. (0-100 Nm)
12* Pillar, Input Shaft
13* Setting Body
* If these items are not in your kit, they may be ordered separately, but base plate 2 will have to be drilled to
secure item 12, see A and B. Dimensions in mm.
End Play Checking Kit
Torque Converter Removal/Installation
Reference Only
