Manitowoc Shuttlelift CD5515-2 Service And Maintenance Manual

TRANSMISSION AND TORQUE CONVERTER CD5515-2/YB5515-2 SERVICE MANUAL
7-24 Published 1-20-2017, Control# 483-02
TRANSMISSION REPAIR

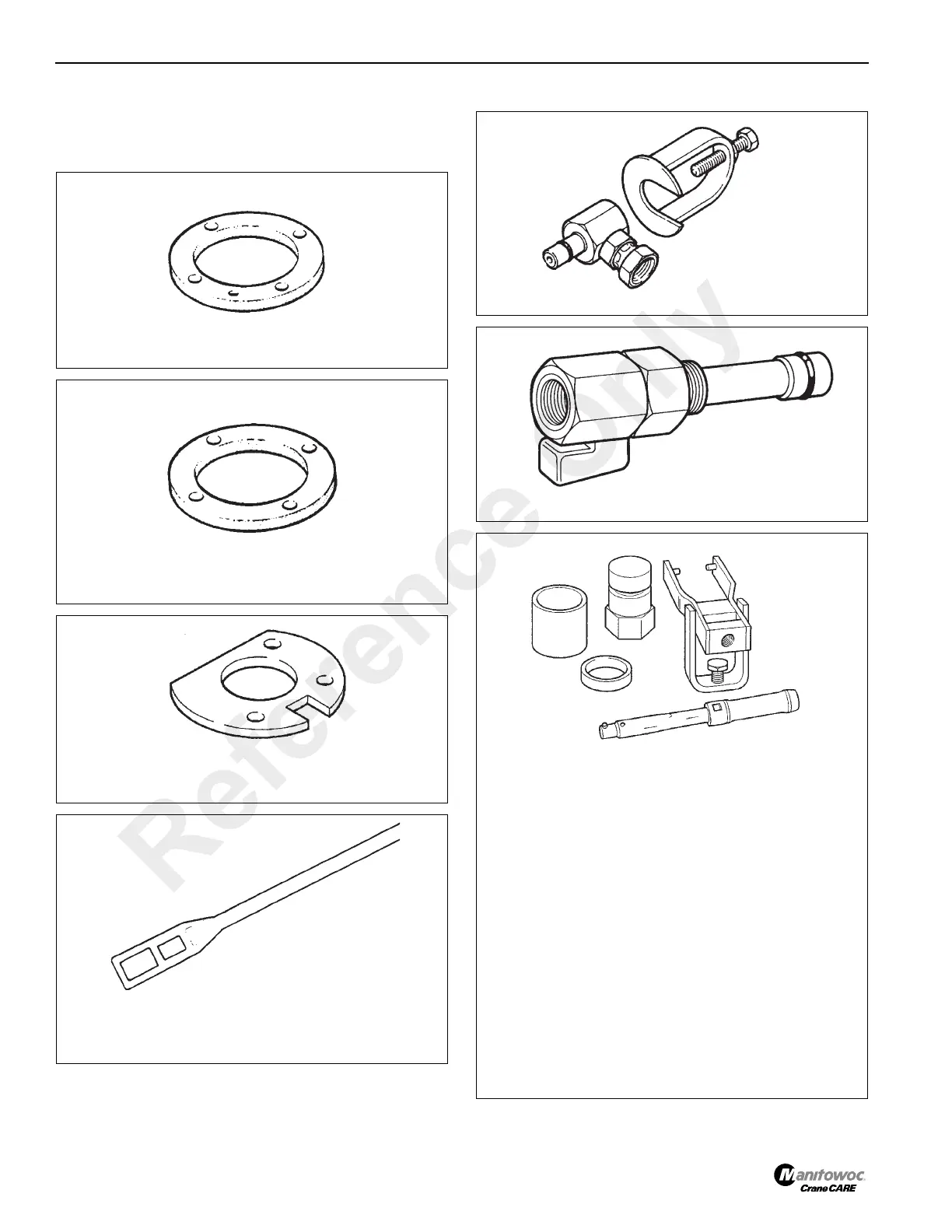

Special Service Tools
FIGURE 7-17
a0254
End Float Setting Tool
FIGURE 7-18
a0249
Reverse Clutch End Float
Setting Tool
FIGURE 7-19
a1397
End Float Setting Tool
FIGURE 7-20
a0180
Drive Coupling Spanner for
Yoke Couplings
FIGURE 7-21
a1518
4WD Pressure Test Kit
FIGURE 7-22
a1411
Mainshaft Air Line Adapter
FIGURE 7-23
a1386
Seal
Stake Nut
Setting Tool Kit
Torque Wrench
Spacer Kit (Includes spacers listed below:
Setting Tool Kit
Spacer - 12,75 mm
Spacer - 13,80mm
Spacer - 13,85 mm
Spacer - 13,90 mm
Spacer - 13,95 mm
Spacer - 13,00 mm
Spacer - 13,05 mm
Spacer - 13,10 mm
Spacer - 13,15 mm
Spacer - 13,20 mm
Spacer - 13,25 mm
Spacer - 13,30 mm
Spacer - 13,35 mm
Spacer - 13,40 mm
Spacer - 13,45 mm
Spacer - 13,50 mm
Spacer - 13,55 mm
Spacer - 13,60 mm
Spacer - 13,65 mm
Spacer - 13,70 mm
Spacer - 13,75 mm
Spacer - 13,80 mm
Spacer - 13,85 mm
Spacer - 13,90 mm
Spacer - 13,95 mm
Spacer - 14,00 mm
Reference Only
