Manitowoc Shuttlelift CD5515-2 Service And Maintenance Manual

GROVE Published 1-20-2017, Control# 483-02 10-13
CD5515-2/YB5515-2 SERVICE MANUAL STEERING SYSTEM
10
Emergency Manual Steering
The gerotor Figure 10-10 in the orbitrol permits steering, with
difficulty, when power is lost. A check valve between the IN
and OUT ports allows for recirculation of the oil to prevent
cavitation when steering without power.
Orbitrol Repair

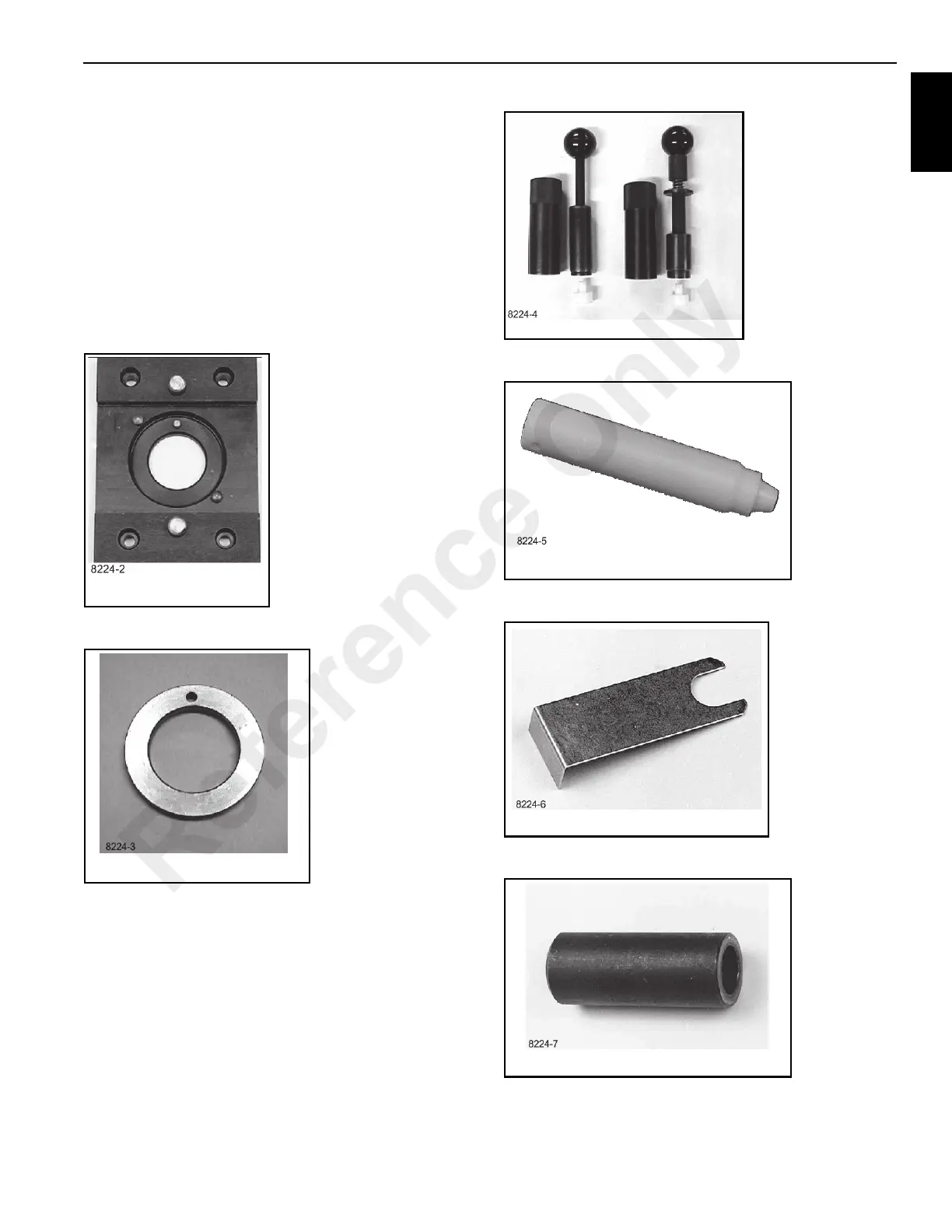

Special Tools
The following special tools are required to assemble the
orbitrol:
Holding tool
Guide Ring
Assembly tool for O-ring and Kin-ring/Roto Glyd
Assembly tool for lip seal
Assembly tool for cardan shaft
Assembly tool for dust seal
FIGURE 10-11
FIGURE 10-12
FIGURE 10-13
FIGURE 10-14
FIGURE 10-15
FIGURE 10-16
Reference Only
