STEERING SYSTEM CD5515-2/YB5515-2 SERVICE MANUAL
10-14 Published 1-20-2017, Control# 483-02
Removal
1. Remove the outside cover plate Figure 10-17 in front of
the operator’s compartment.
2. Completely clean around the area of the steering
orbitrol.
3. Put tags on the lines to the steering orbitrol for
identification at installation.
4. Rotate the steering wheel a small amount in each
direction several times, then release to get a balance of
pressure in the steering circuit. Slowly loosen the
hydraulics lines at ports L and R to release any
remaining pressure. Disconnect the hydraulic lines from
IN and OUT ports. Put plugs and caps in the ports and
hydraulic lines.
5. Remove the four bolts which fasten the steering column
and orbitrol to the mounting bracket. Be sure to hold the
steering orbitrol in position while the last bolt is being
removed. Remove the steering orbitrol.

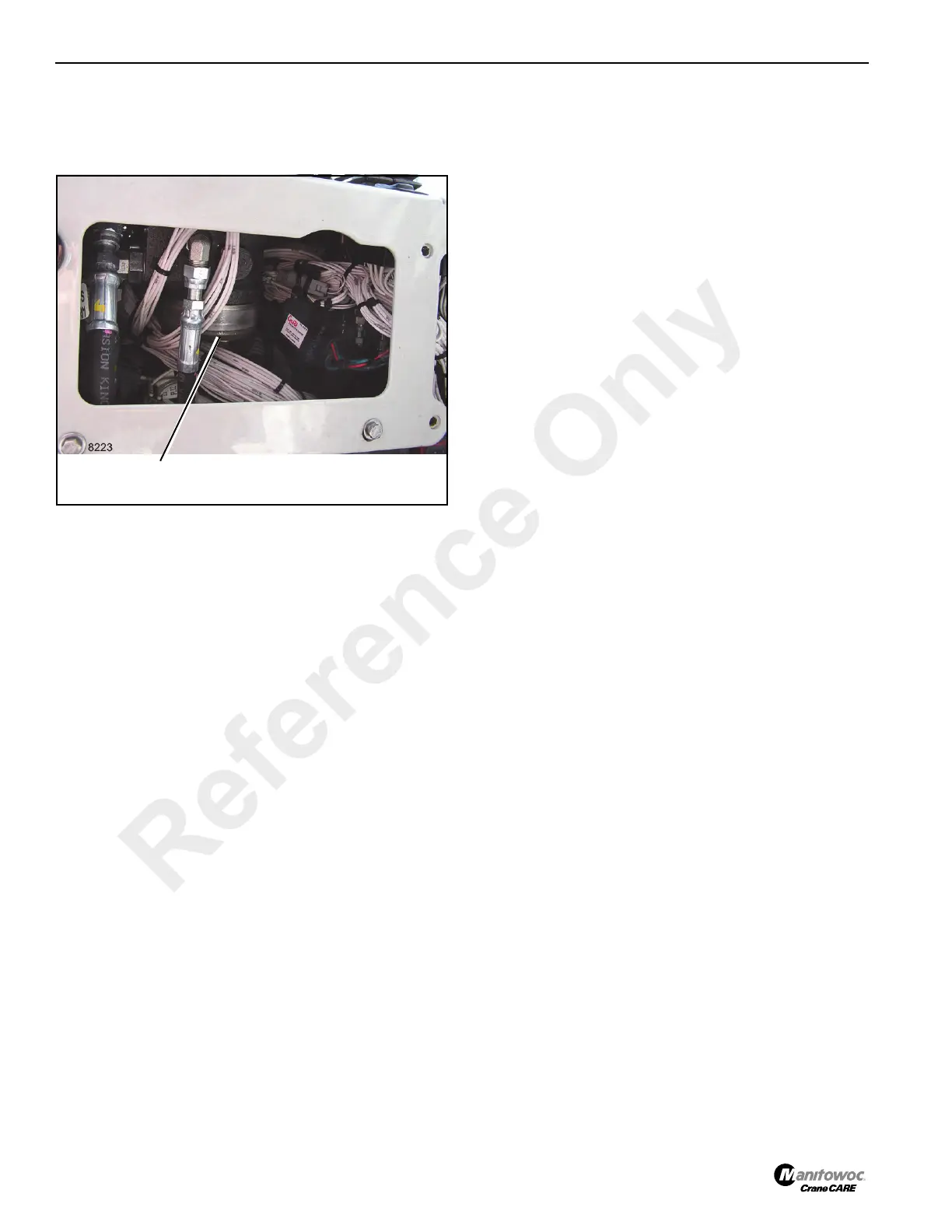

FIGURE 10-17
Steering
Orbitrol
Reference Only
