GROVE Published 1-20-2017, Control# 483-02 10-15
CD5515-2/YB5515-2 SERVICE MANUAL STEERING SYSTEM
10

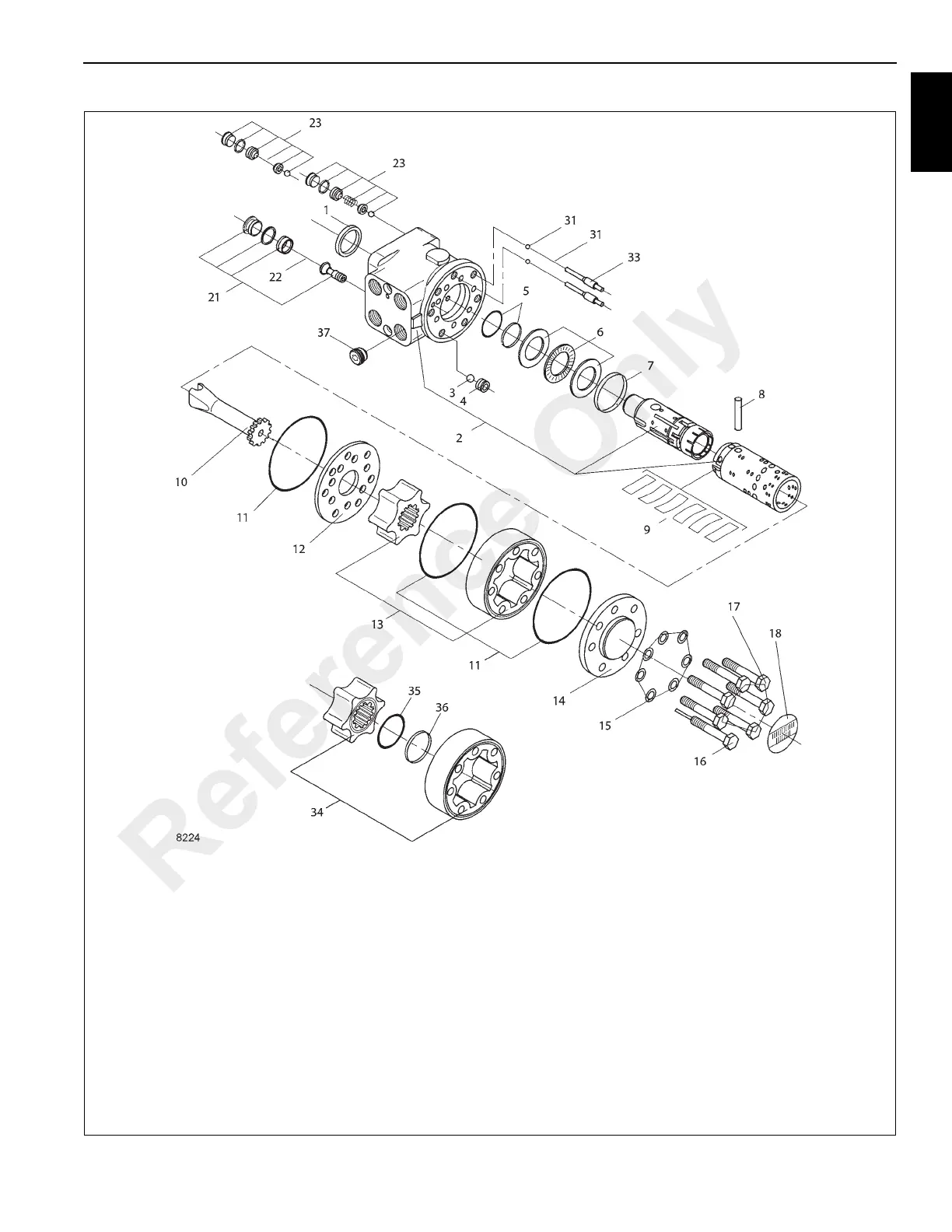

FIGURE 10-18
a0327
Steering Orbitrol
1. Dust Seal Ring
2. Housing, Spool and Sleeve
3. Ball
4. Threaded Bushing
5. O-Ring & Kin-ring
6. Bearing Assembly
7. Kin-ring
8. Cross Pin
9. Neutral Position Springs
10. Cardan Shaft
11. O-ring
12. Distributor Plate
13. Gearwheel Set
14. End Cover
15. Washer
16. Special Screw
17. Screw
18. Name Plate
21. Relief Valve
22. Spring
23. Shock Valve
31. Ball & Spring
33. Suction Valve Pins
34. Gearwheel Set
35. O-ring
36. Kin-ring
37. Bushing
Reference Only
