Part Number: 040006847 12/19 25

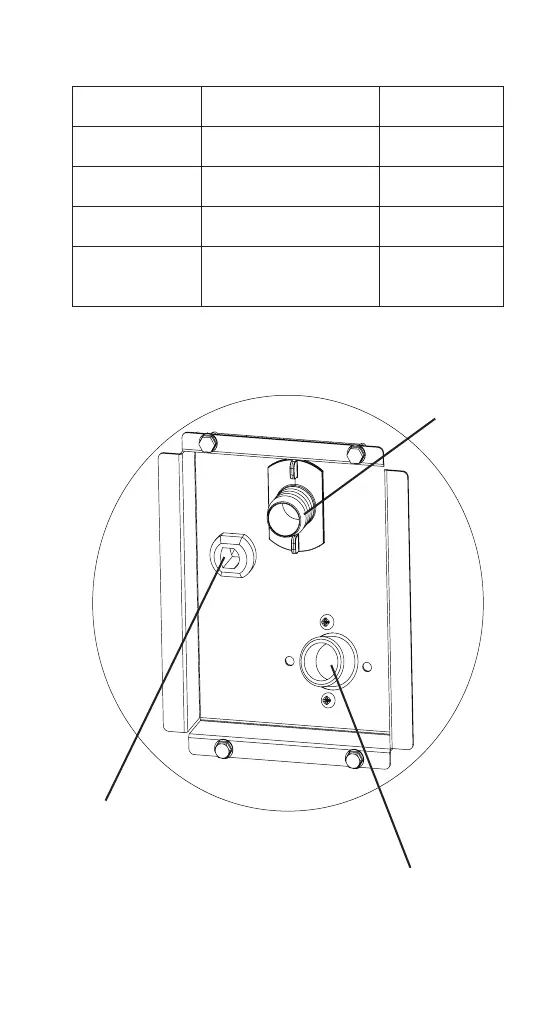

Water Supply and Drain Line Sizing/Connections
Ice Making Water Inlet Drain Connection
Outlet
Inlet water
temperature
50°F (10°C) Min.
90°F (32°C) Max.
--
Inlet Water
Pressure
20 psi (140 kPa) Min.
80 psi (550 kPa) Max.
--
Ice Machine
Fitting
3/4” male pipe thread 7/8” fitting
barbed
Tubing Size Up
to Ice Machine
Fitting
1/2” (15mm) minimum
inner diameter
3/4” (18mm)
minimum inner
diameter
Electrical
Ice Making
Water Inlet
Drain
