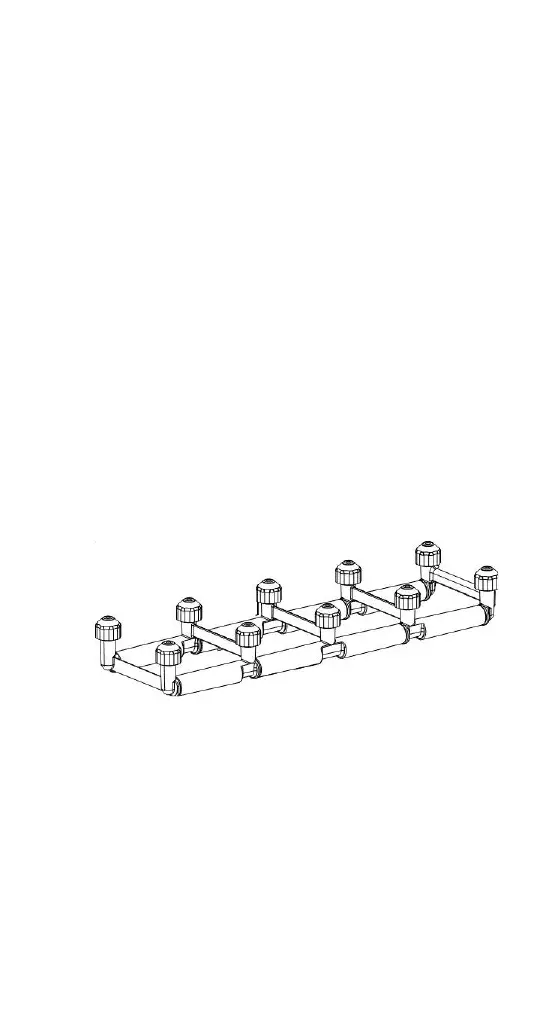

SPRAY BAR
The spray bar supplies water to the individual ice-making
cups. Water from the Water Pump sprays through the
nozzles, located on the upper portion of the tubes.
1. Grasp one end of the spray bar, lift it up and remove
from the seat formed in the water trough.
2. Remove both plastic clips on water inlet tubing by
grasping both ears on clip and separating.
3. Apply a food grade lubricant to ease re-assembly of
spray bar components when necessary.
4. To re-install spray bar, position the water inlet tubing
on the inlet ports of the spray bar, and squeeze the
clips until tight.
5. Reposition the assembly on the water trough seat.
Nozzles and inserts can be removed for cleaning by
unscrewing nozzles. Inserts are located inside the spray bar
ports. The entire spray pipe can be disassembled for
cleaning.
