Part Number: 040006847 12/19 43
Component Removal
TOP COVER
For easiest access to the evaporator compartment, the top
cover can be removed.
1. Remove two screws on the rear of the ice machine.
2. Slide top cover back to disengage the three pins from
the front panel.

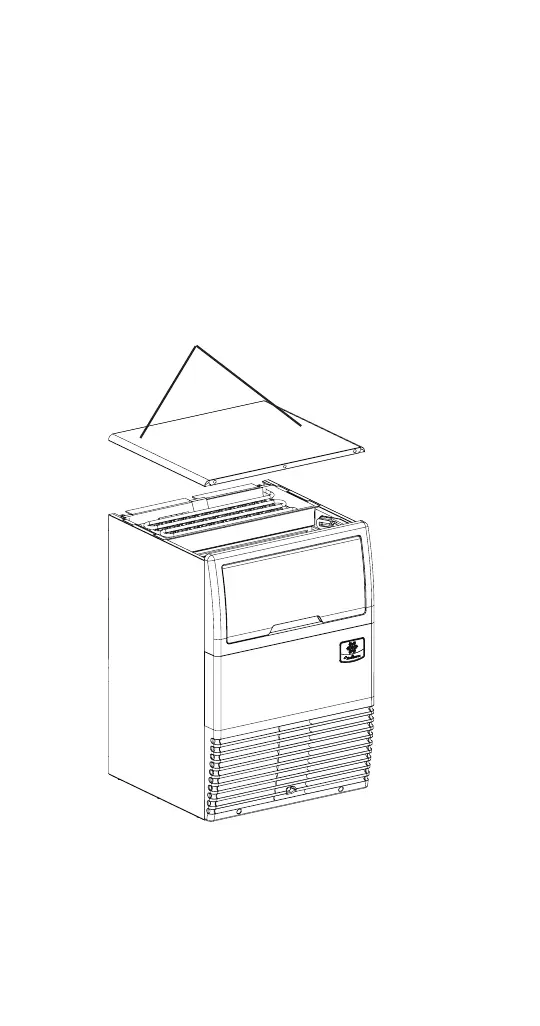

Remove the two screws and slide the
top cover backwards to remove.
