44 Part Number: 040006847 12/19

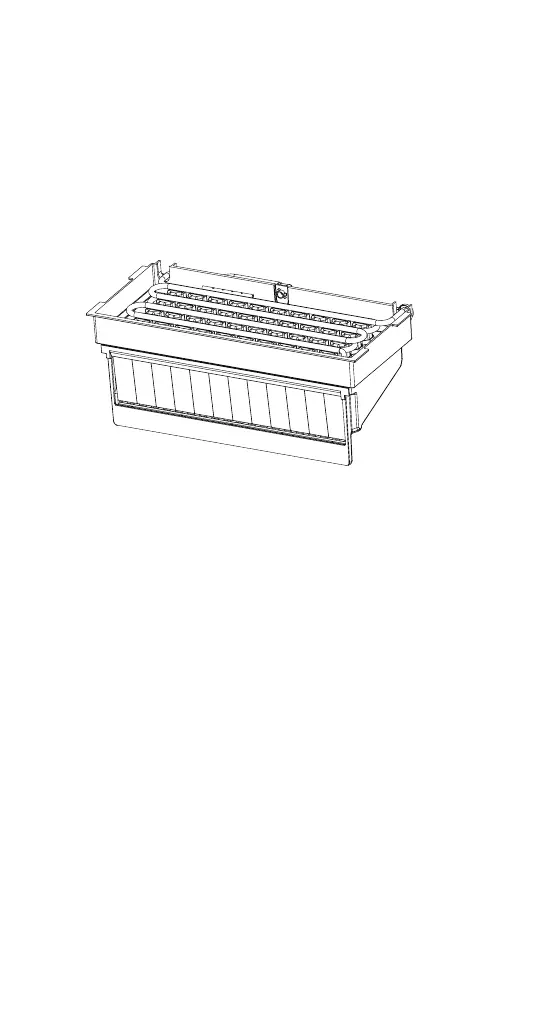

WATER CURTAIN
The water curtain is designed to keep the spraying water
from escaping the evaporator compartment. Removal of
the bin door is not required, but enhances access.
Grasp one end of the water curtain and lift up.
To re-install the water curtain, into ice machine, pivot the
water curtain and pull it down into position. Make sure
tabs are secure in grooves.
