11Contact us at www.mantis.uk.com

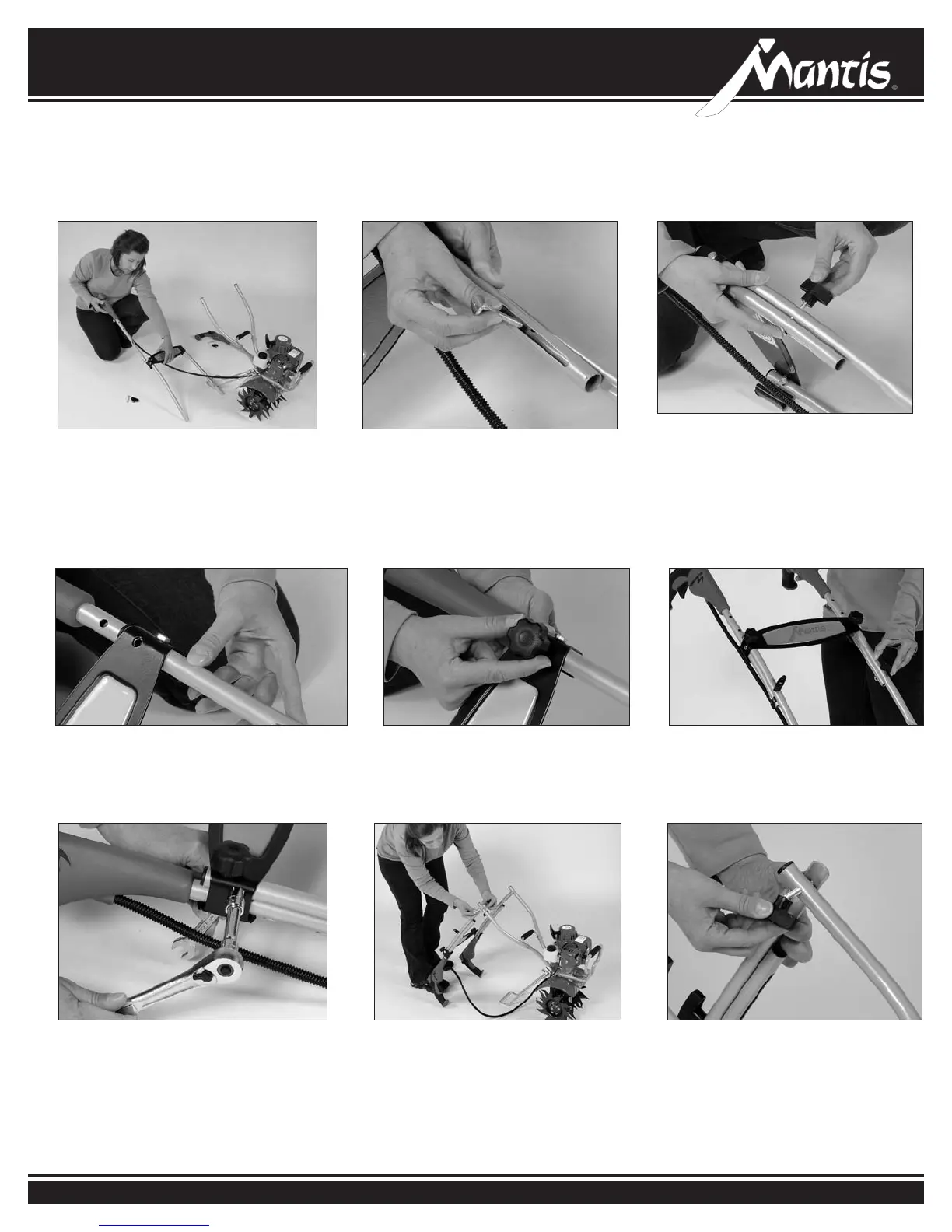

Assembly
• Take the right upper handle, the
one with the throttle, and slide it
between the middle handle and the
lower ange of the brace.
• Insert a curved head bolt into the
slot at the bottom of the upper
handle so that it comes out the top
of the middle handle.
• Thread a 2-pronged knob onto the bolt
two full turns while leaving it loose.
• Repeat for left side to complete
Upper Handle Assembly
(CONTINUED)
4 5 6
• Line up the top holes of the upper
handles with the holes on the top of the
brace so the handles are in the lowest
position.
• Insert the round knob into the
brace and tighten.
• Now fully tighten the lower 2-prong
knobs
UPPER HANDLE POSITIONING
1 2 3
• With a 7/16 in. (11 mm) wrench and
socket, tighten the nuts and bolts that
hold the brace onto the handles
• Insert the carriage bolts into the bottom
holes of the upper handles then through
the top holes of the lower handles.
• Loosely thread the other 2-pronged
knobs onto the carriage bolts
4 5 6
To Next Page
