10 Deluxe 4-Stroke Tiller Operator’s Manual

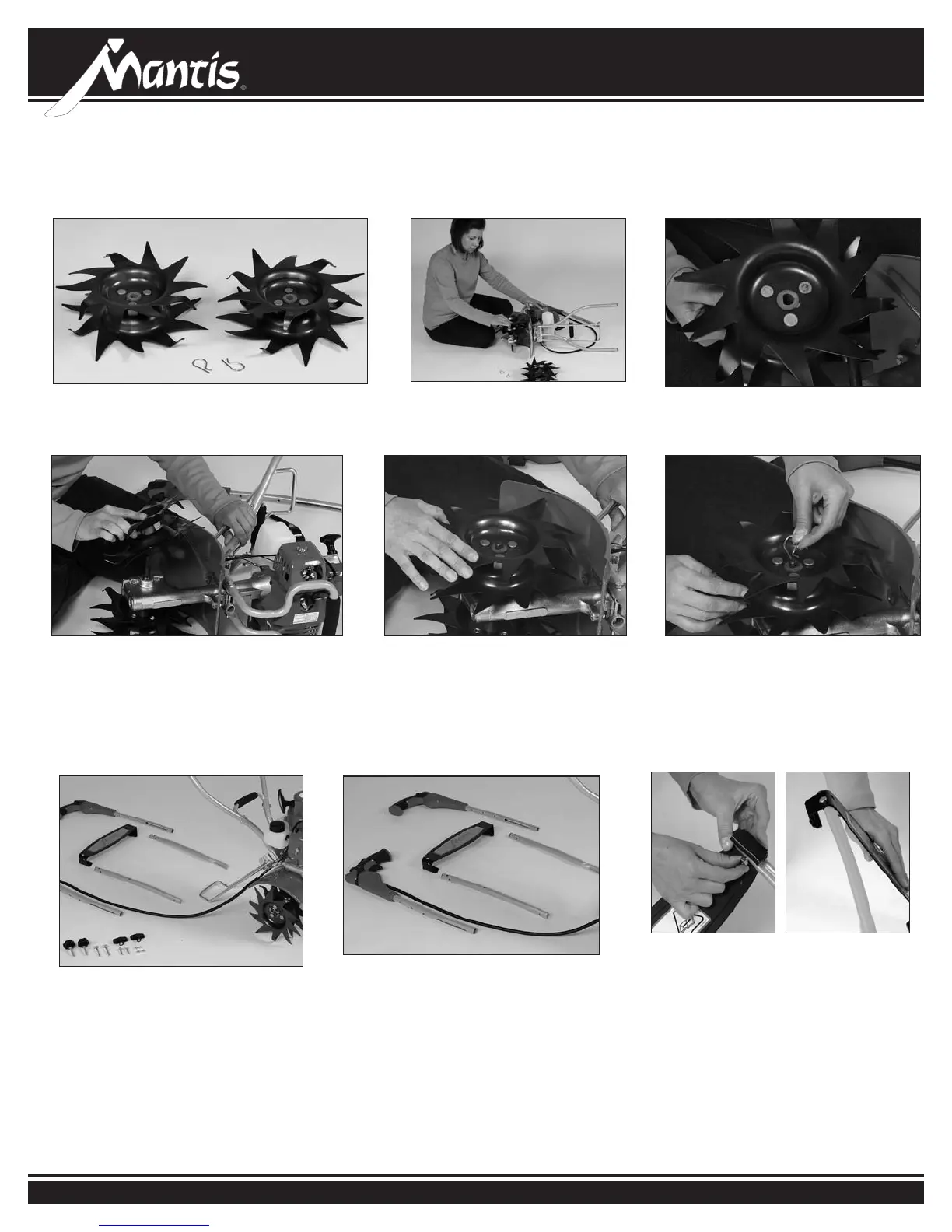

Assembly
• You’ll need the 2 tines and the 2 retaining pins
• Remove the unit from the
cardboard cradle and turn the
unit slightly on its side
• You will notice that one side of the
tine has a circular hole while the
other has a “D” shaped hole.
1 2 3
• Attach the tine so that the circular hole
slides onto the axle rst.
• When the axle protrudes from the
other side it will line up perfectly
with the “D” shaped hole.
• Slide a on retaining pin through the
hole in the axle to secure the tine.
• Repeat steps for the other side.
4 5 6
• To assemble the upper handles,
rst put the kickstand down
• Layout the middle and upper handles
and the handle brace as shown above
• Take the right middle handle and
attach the brace using a hex head cap
screw and a 2-way lock nut. Finger
tighten.
• Repeat for left side.
1
2
3
