7Contact us at www.mantis.uk.com
Assembly
Congratulations! You have just purchased a super high-quality
product. The Mantis Deluxe Tiller/Cultivator.
This manual will show you how to Assemble, Start, Operate,
Transport, Store and Maintain your Tiller. The Mantis Deluxe
Tiller/Cultivator is designed to bring you years of solid, reliable
performance.

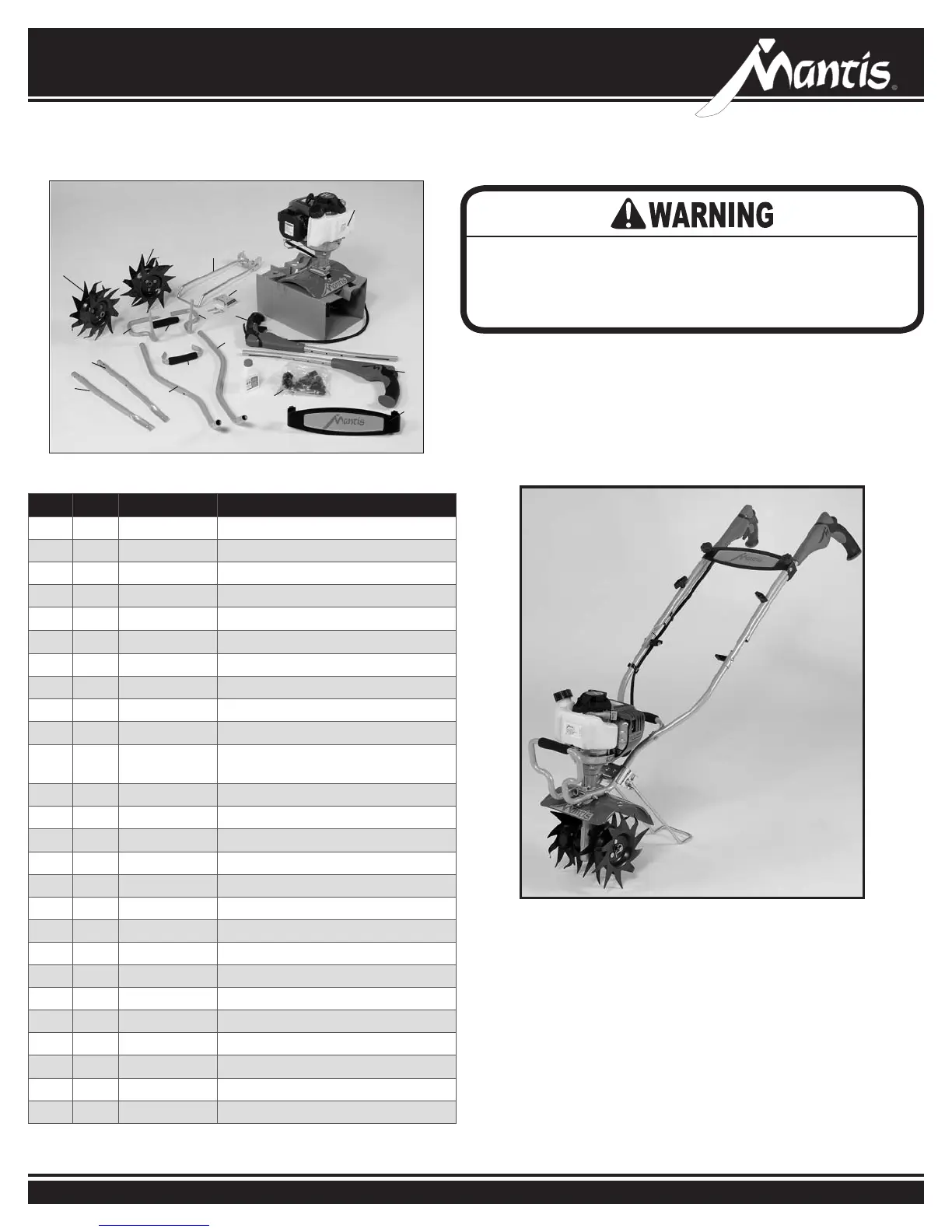

Key Qty. Part No. Description
A 1 N/A Transmission and Engine assembly
B 1 430023 Loop handle right half
C 1 430022 Loop handle left half
D 1 430025 Loop handle grip
E 1 430051 Lower handle, right
F 1 430050 Lower handle, left
G 2 4049 3.25” (80 mm) Bolts
H 6 972 1/4-20 Two-way lock nut
I 1 430049 Carry Handle (with grip)
J 4 144-2 1/4-20 x 1-1/8 Hex head cap screws
K 1 430060 4-Stroke Trigger handle assembly,
right
L 1 430006 Handle assembly, left
M 1 430053 Middle handle, right
N 1 430052 Middle handle, left
O 1 430021 Handle brace
P 2 430038 Knob– 1/4-20 x 1.5 male
Q 4 400523 Knob, two prongs, female
R 2 430039 Carriage bolt 1/4-20 x 2.25” (5.7 cm)
S 2 430048 Curved head bolt, 1/4-20 x 2” (5 cm)
T 2 395 Acorn nut
U 2 478 Throttle Clip
V 1 438RA Tine assembly, right
W 1 438LA Tine assembly, left
X 2 418-1 Tine retaining pins
Y 1 410158 Stand
Z 1 430037 Kickstand Brace Kit
Y
Z
W
V
O
N
M
L
K
I
G,H,
J, P, Q,
R, S, T,
X, U
F
E
D
C
B
A
TO ASSEMBLE THE TILLER
Prior to removing the contents and assembling, it is
important to:
• Have a clean work area.
• Make sure all necessary tools are handy.
• You will need a 7/16th inch (11 mm) crescent wrench
• A ratchet with an extension
• A 7/16th (11 mm) inch socket
• A 3/8” (9 mm) socket or crescent wrench.
4-Stroke Tiller
Improper assembly of this tiller can result in serious injury.
Make sure to follow all instructions carefully.
If you have any questions contact our factory at
1-215-355-9700 or an authorised mantis dealer
