8 Deluxe 4-Stroke Tiller Operator’s Manual

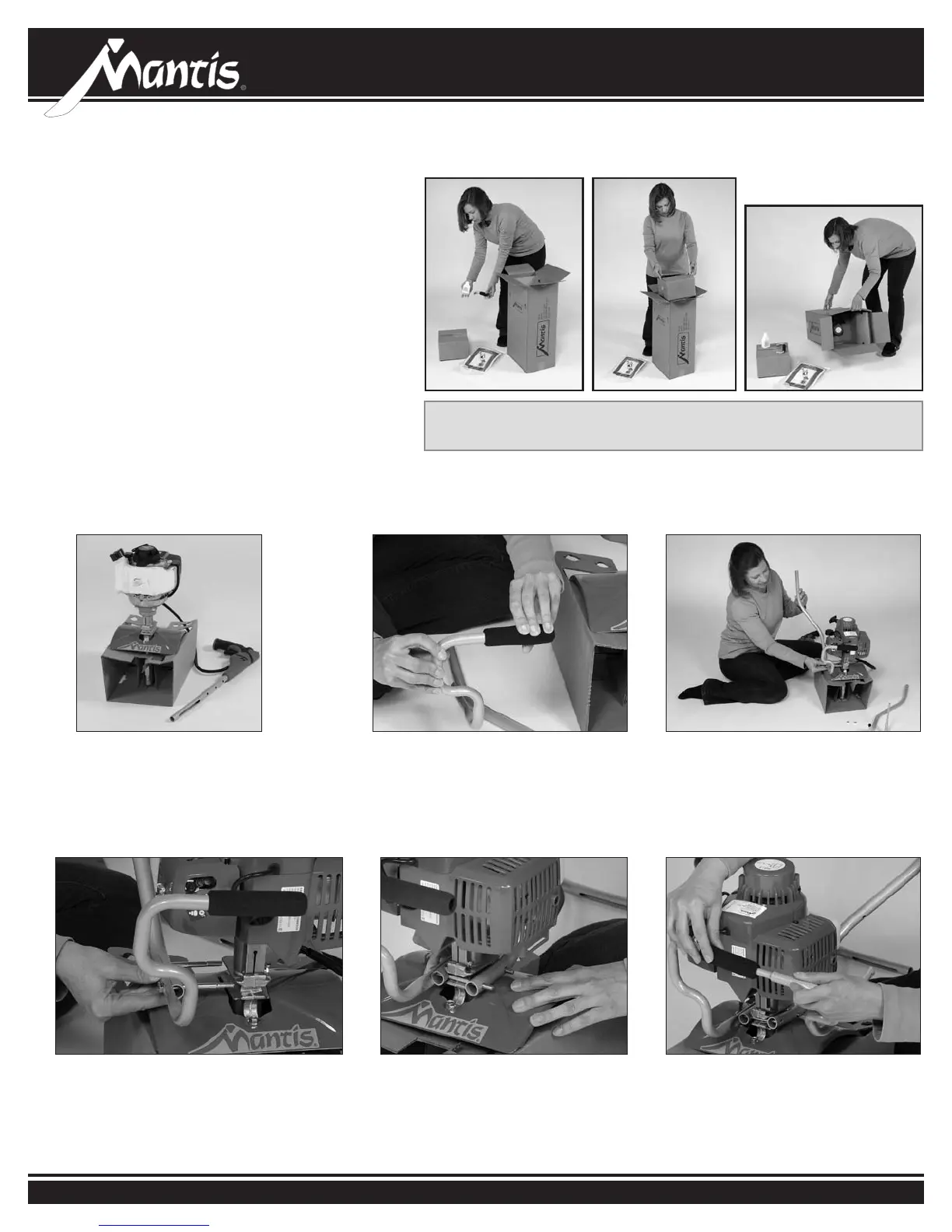

LET’S BEGIN
The following instructions are for the 4-Stroke Tiller.
• With the box upright, open the box and remove the
tine box and the loose parts that are at the top of the
tiller box. Do not remove any other parts in the box.
• Lay the box on one side and open the bottom aps.
• Return the box to an upright position (as shown) and
pull the box straight up.
• The right handle, additional parts and tiller engine will
be in the box cradle. Leave the engine and throttle in
the cradle to assist in the assembly.
• Lay everything out so you can easily identify the
parts (see parts image and list on page 7).
Assembly
NOTE: Some of the photos in this manual do not represent your
4-Stroke tiller engine. They are for assembly purposes only.
• For ease of assembly and stability it
is important that you keep the engine
assembly in its cardboard cradle.
• Position this assembly onto the
recessed channels below the engine.
• Slide the grip onto the right loop
handle.
• Slide the lower left handle onto
the bolts
• Line up the holes of the Right Loop
Handle with the holes of the Lower
Right Handle.
• Slide the two 3-1/4” (80 mm) bolts
through the hole
• Slide the left loop handle into the
grip and right loop handle
1
4 5 6
2 3
