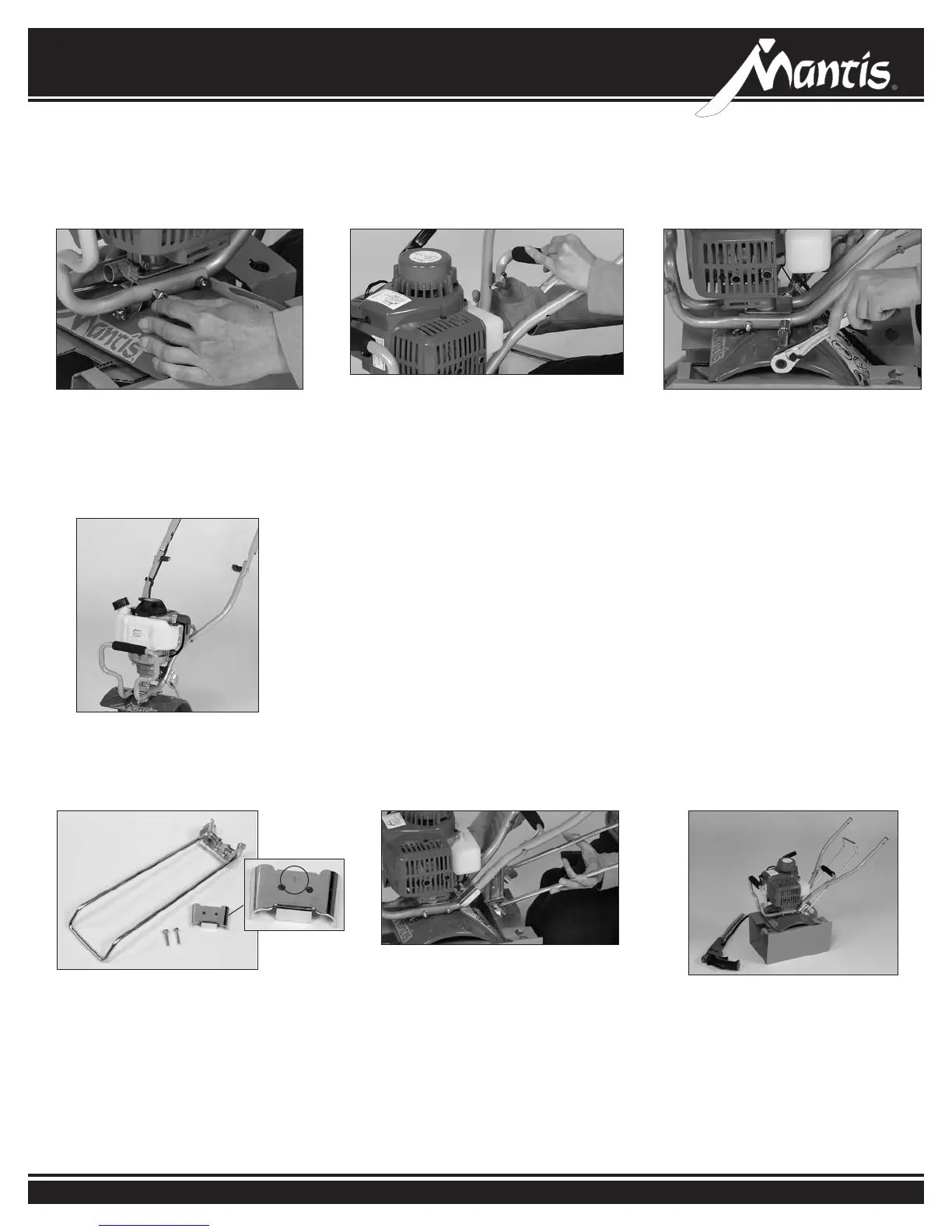

Assembly
4-Stroke Tiller
(CONTINUED)
• Slide loop handle through bolts
and over top lower left handle,
then take two lock nuts and
fasten them nger tight
• At this point, your Mantis tiller should look like
this when lower handle assembly is complete.
• Position the kickstand brace just above
the bend of the lower handles. The
stamped arrow should be pointing up
• Place the Carry Handle between the
lower handles and line up the holes
• Place two of the 1-1/8” (28 mm) bolts
through holes with hex head on inside
of carry handle and with two lock nuts
fasten them tight with wrench and
socket.
• Position the kickstand under the
lower handles, line up the holes
and thread the kickstand brace
bolts into the kickstand
•Tighten with the 3/8” (9 mm)
wrench
• Use the 7 /16” (11 mm) wrenches
and socket to tighten the rest of the
handle bolts.
• Your Mantis tiller will look
like this when lower handle
assembly and kickstand is
complete.
