Mantis 7265 User Manual

19Contact us at www.mantis.uk.com
Rev. A, 10/4/11
Key Qty. Part No. Description
1 1 430060 Trigger Handle Assembly, 4-Stroke Engine, Right
2 1 430006 Handle Assembly, Left
3 3 430053 Middle Handle W/Plug, Right
4 1 430052 Middle Handle W/Plug, Left
6 1 430051 Lower Handle W/Plug, Right
7 1 430050 Lower Handle W/Plug, Left
8 1 430021 Handle Brace
9 1 430056 Label, Handle Brace
10 1 430023 Loop Handle Right Half
11 1 430022 Loop Handle Left Half
12 1 910502 10-32 X 3/4” (1.9 cm) Flange Bolt
13 2 478 Throttle Clip
14 2 430025 Foam Grip
15 1 430049 Carry Handle W/Grip
16 2 4049 Bolt 1/4-20 X 3.25” (8.25 cm)
17 2 430038 Knob, 1/4-20 X1.5 Male
18 2 4078 M6 Jam Nut
19 2 430048 Curved Head Bolt, 1/4-20 X 2” (5 cm)
20 1 465 Fender Guard
21 1 400914 Engine Assembly-25cc Honda
22 1 468 Drive Shaft
23 1 466 Worm Gear Housing
24 1 436 Gasket
25 1 437A Gear Housing Cover
26 4 651 #8 Self Tapping Screw
27 1 423 Roller Bearing
28 2 425 Worm Bearing Race
29 1 424 Worm Thrust Bearing
30 1 422 Worm Shaft
31 1 426 Worm Disk
32 1 428 Retaining Ring
Key Qty. Part No. Description
33 1 429 Worm Gear
34 1 431 Tine Shaft
35 2 430 Worm Gear Thrust Washer
36 2 432 Worm Gear Bearing
37 2 434 Bearing
38 2 435 Bearing Seal Retainer
39 1 438RA Tine Assembly, Right
40 1 438LA Tine Assembly, Left
41 2 418-1 Tine Retaining Pin
42 2 430039 Carriage Bolt 1/4-20 X 2.25” (5.7 cm)
43 1 400130 Engine Flange
44 1 400609 Triangle Warning Label (4-Stroke Engine) – EU
45 1 458 Roller Bearing
46 1 430058 Mantis Logo Label
47 2 395 Acorn Nut
48 6 972 1/4-20 Two-Way Lock Nut
49 4 144-2 1/4-20 X 1.125 Hex Head Cap Screw
50 2 400516 Bolt 1/4-20 x 1/2” (1.27 cm) Long
51 1 430057 Warning Label
52 1 400010 Transmission Assembly*
53 4 400523 Knob, Two Prongs, Female
54 1 430043 Ground Wire Jumper, 4-Stroke Engine
55 2 4079 M6 Internal Lock Washer
56 1 400132 Bearing
57 1 400131 Clutch Drum
58 4 400511 M6x12 Flange Bolt
59 1 410158 Kickstand, Stand Assembly
60 1 430037 Kickstand, Bracket And Hardware
61 2 400515 Washer 1/4” (0.63 cm)
62 2 400136 Rubber Washer 12 Thick
63 2 400137 Rubber Washer .04 Thick

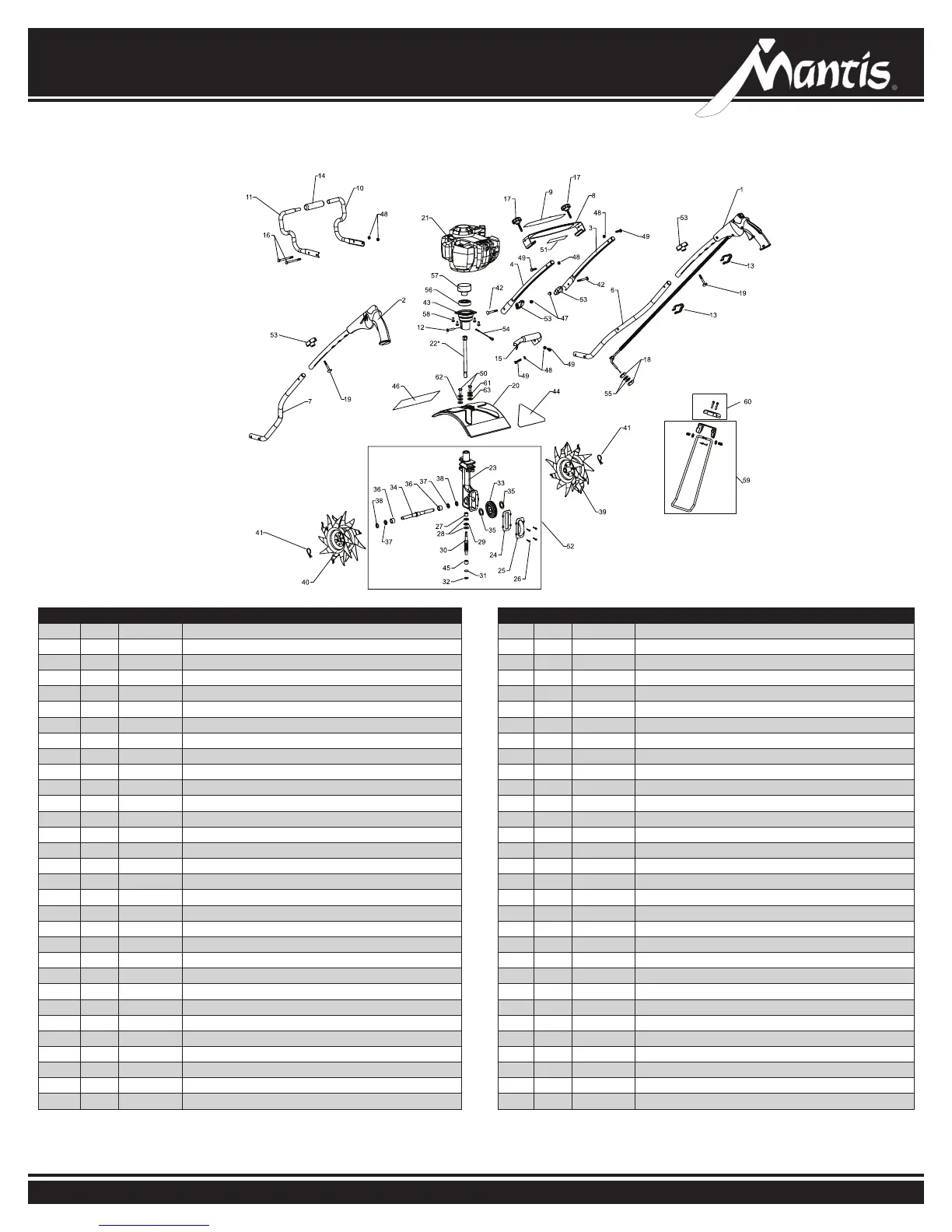

4-Stroke Tiller Assembly
* Includes Key #22
