For speaker impedance and speaker cable connections, see power amp user guide.

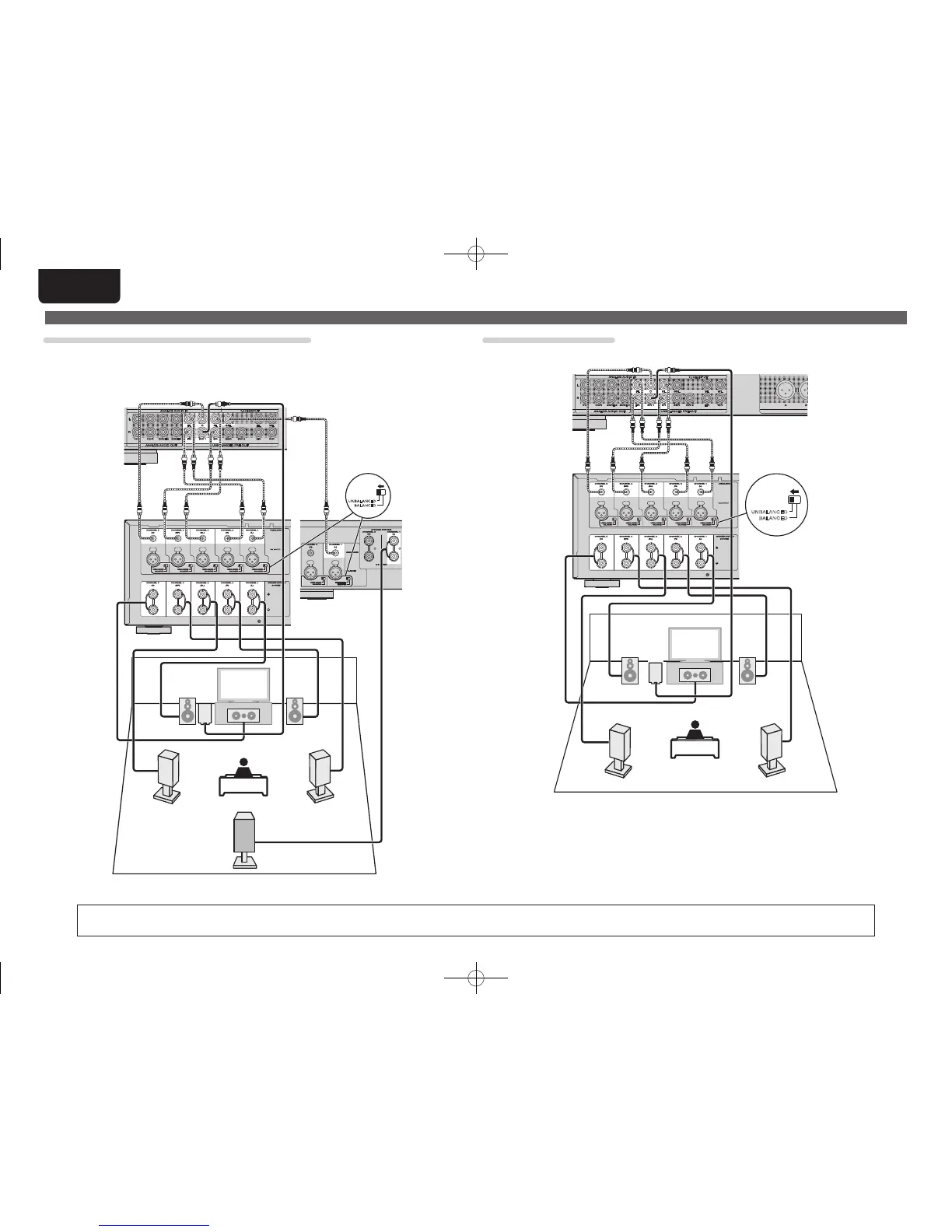

6.1-channel (Surround back speaker) connection
If you are using just one surround back speaker, connect it to the UNBALANCED or BALANCED PRE OUT
SBL terminals on the power amp.
For speaker settings in this case, see “When 6.1ch (Surround back speaker) installed” (vpage48).
For 6.1-channel (Surround back speaker) playback, set “Set up “Amp Assign”” (vpage52) to “Normal”.
FL FR
C
SB
SL
SR
SW
BALANCED
UNBALANCED
GMM7025H
GMM7055H
Connect
5.1-channel connection
For 5.1-channel playback, set “Set up “Amp Assign”” (vpage52) to “Normal”.
