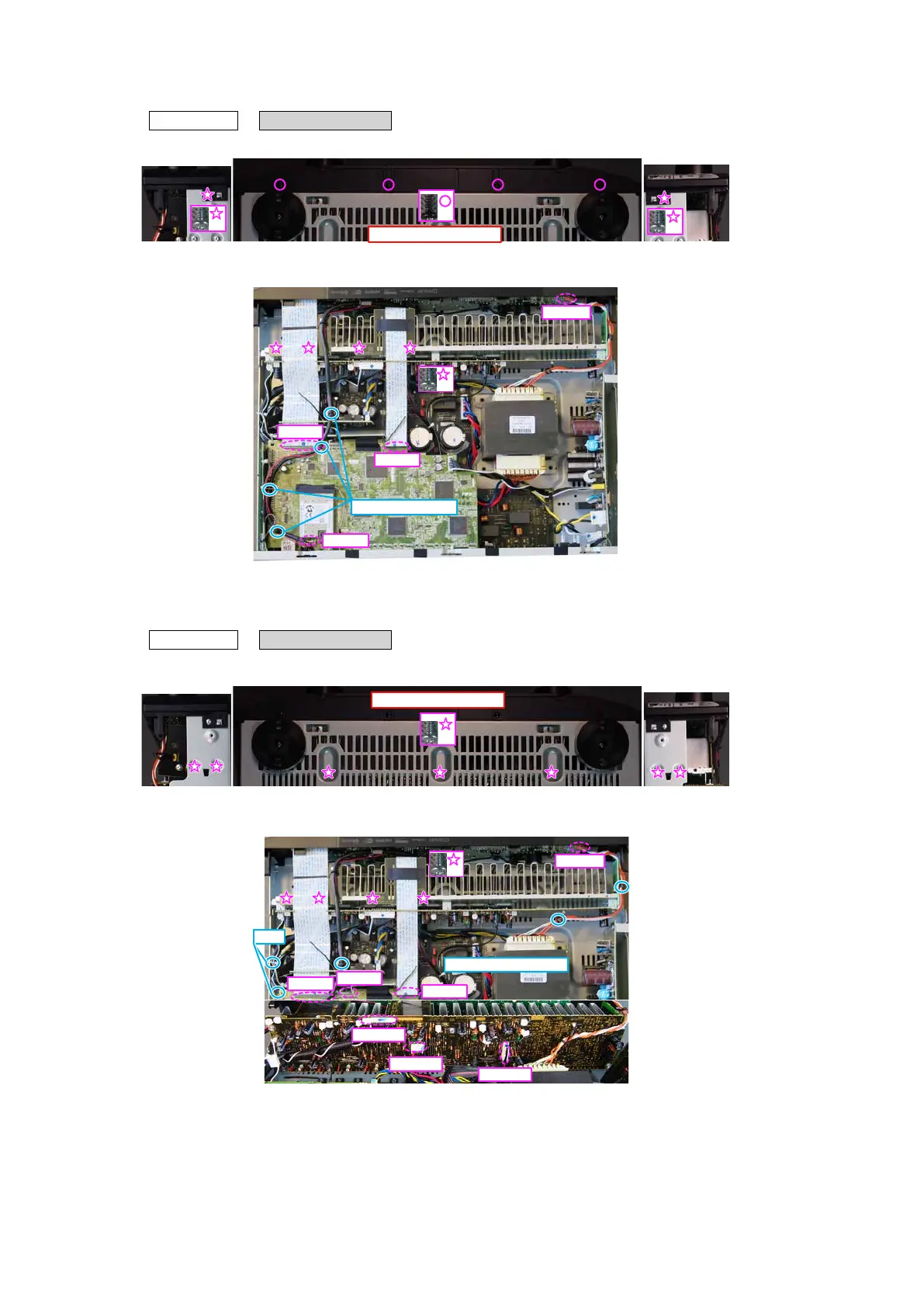

Marantz NR1506 /U1B - Front Panel Assy; Radiator Assy

1. FRONT PANEL ASSY
Proceeding : TOP COVER
→
FRONT PANEL ASSY
(1) Remove the screws.
(2) Remove the screws. Remove the CORD HOLDERs and connector wires. Remove the FFC.
2. RADIATOR ASSY
Proceeding : TOP COVER
→
RADIATOR ASSY
(1) Remove the screws.
(2) Remove the screws. Cut the wire clamp, then remove the connector. Remove the FFC.
View from the bottom
x4
x1
x1
FFC
FFC
N1023
CP4401
x4
CORD HOLDER
View from the bottom
x7
x4
N1023
FFC
FFC
CP4802
CP4800
CP4401
CP4801
CORD HOLDERx3
CUT
s
s
14
