Marantz NR1506 /U1B - Hdmi Pcb; Spk Pcb

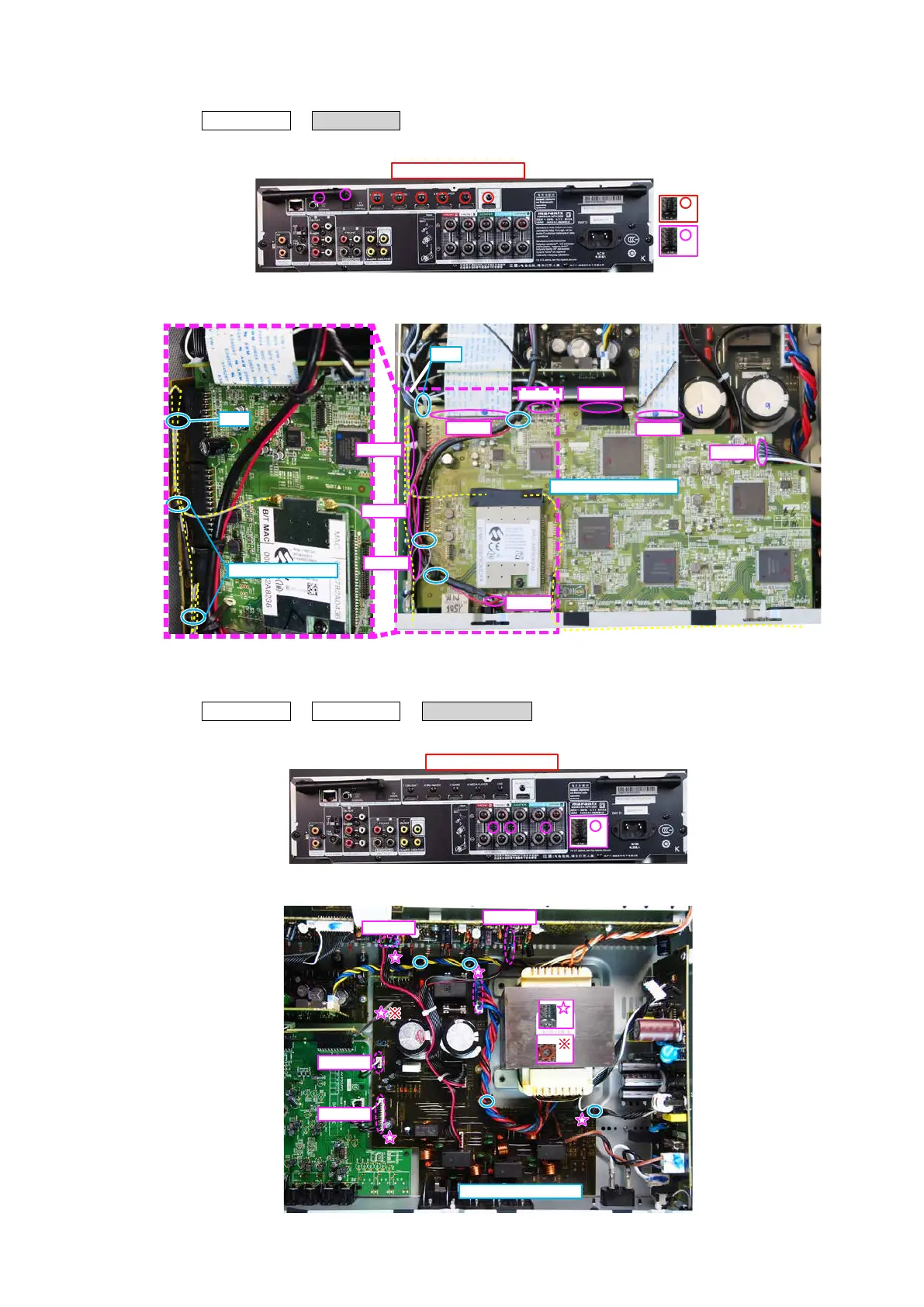

3. HDMI PCB
Proceeding : TOP COVER
→
HDMI PCB
(1) Remove the screws.
(2) Remove the CORD HOLDERs. Cut the wire clamp, then remove the connector. Remove the FFC.
4. SPK PCB
Proceeding : TOP COVER
→
DIGITAL PCB
→
SPK PCB
(1) Remove the screws.
(2) Remove the screws. Remove the CORD HOLDERs and connector wires.
Shooting direction: A
x6
x2
FFC
FFC
N1023
N1021
N1006 N1005
CORD HOLDER
N1001
N1003
N1002
CORD HOLDER x 3
CUT
CUT
Shooting direction: A
x3
x5
x1
CP4802
CP4000
CP4002
CP4801
CORD HOLDERx4
s
15
