JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.
• Connection of Jig for HDMI PCB
---Items to Be Prepared---
8U-110084S : EXTENSION UNIT KIT : 1Set
8U-110136S : EXTENSION UNIT KIT : 1Set
Insulation sheet (Not supplied) : 1 sheet
Ground lead (Not supplied) : 2 pc

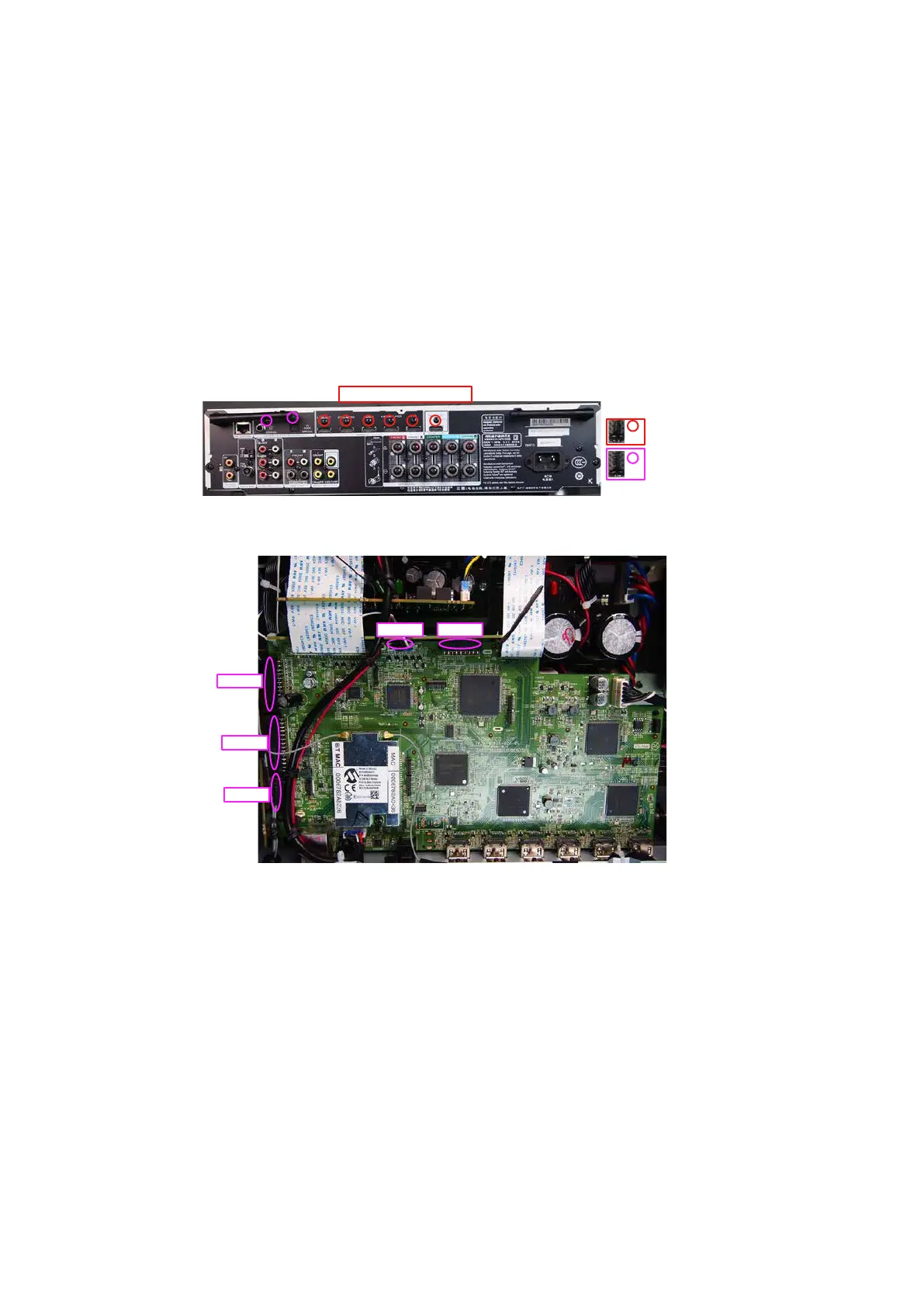

---Procedures---
(1) Remove the screws.
(2) Remove the connector PCB.
Shooting direction: A
x6
x2
N1006 N1005
N1001
N1003
N1002
46
To Next Page
