Marantz NR1506 /U1B - BLOCK DIAGRAMS; Analog Audio Block Diagram

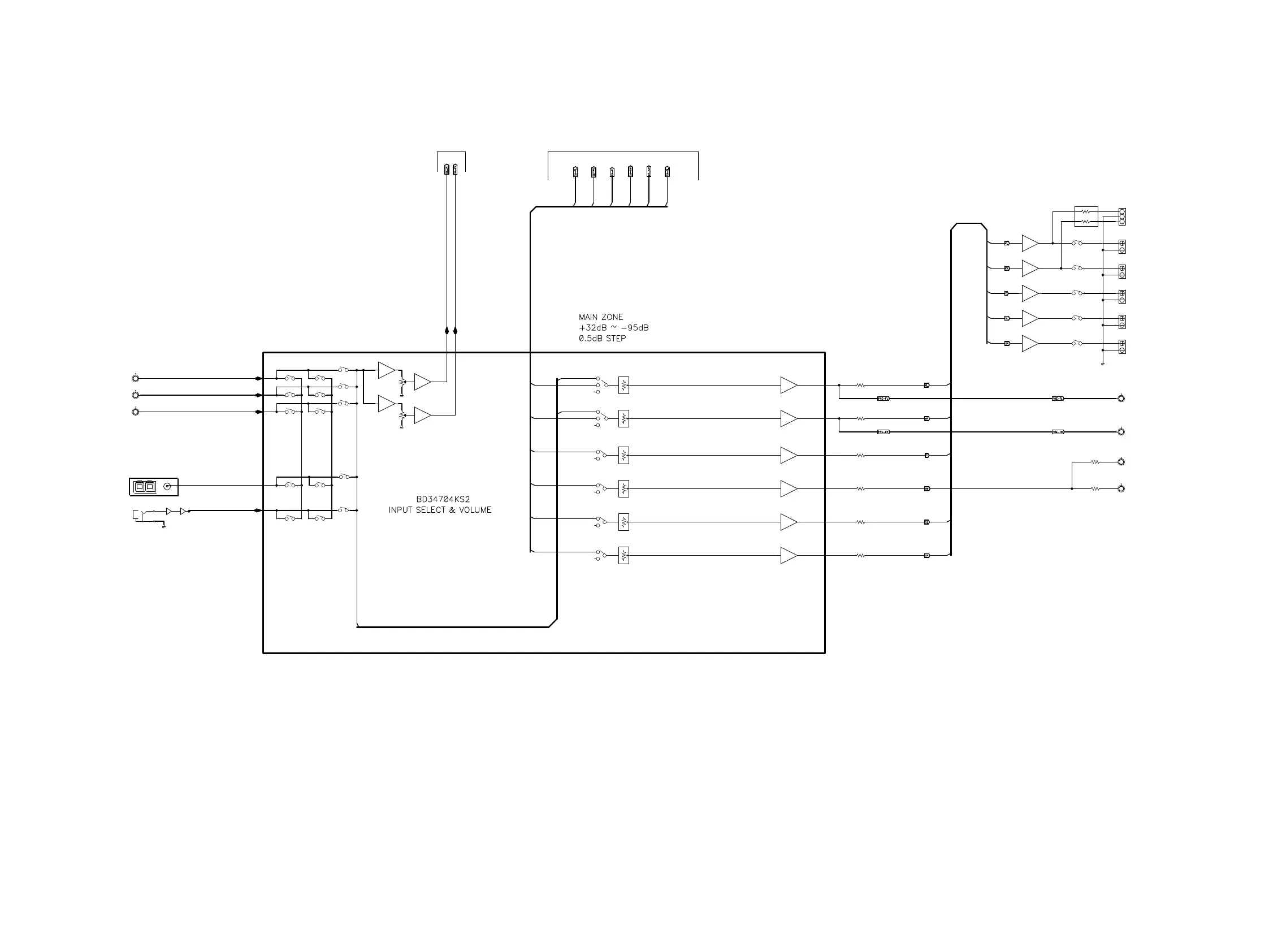

BLOCK DIAGRAM
CD
SW2
SW1
FR
FL
SR
SL
C
FR
FL
DVD
ADINL
FM/AM
DSP_SR
DSP_SL
DSP_C
ANA_FR
DSP_FL
ANA_FL
ATT
H/P-R
ANALOG
INPUT
ADINR
DSP_SW
DSP_FR
SR
SL
C
FR
FL
H/P-L
TUNER
SAT_CBL
MIC(Mini Jack)
TO DIGITAL AUDIO BLOCK
TO DIGITAL AUDIO BLOCK
2.2ch PREOUT
SPK OUT
HEADPHONE OUT
ANALOG AUDIO DIAGRAM
