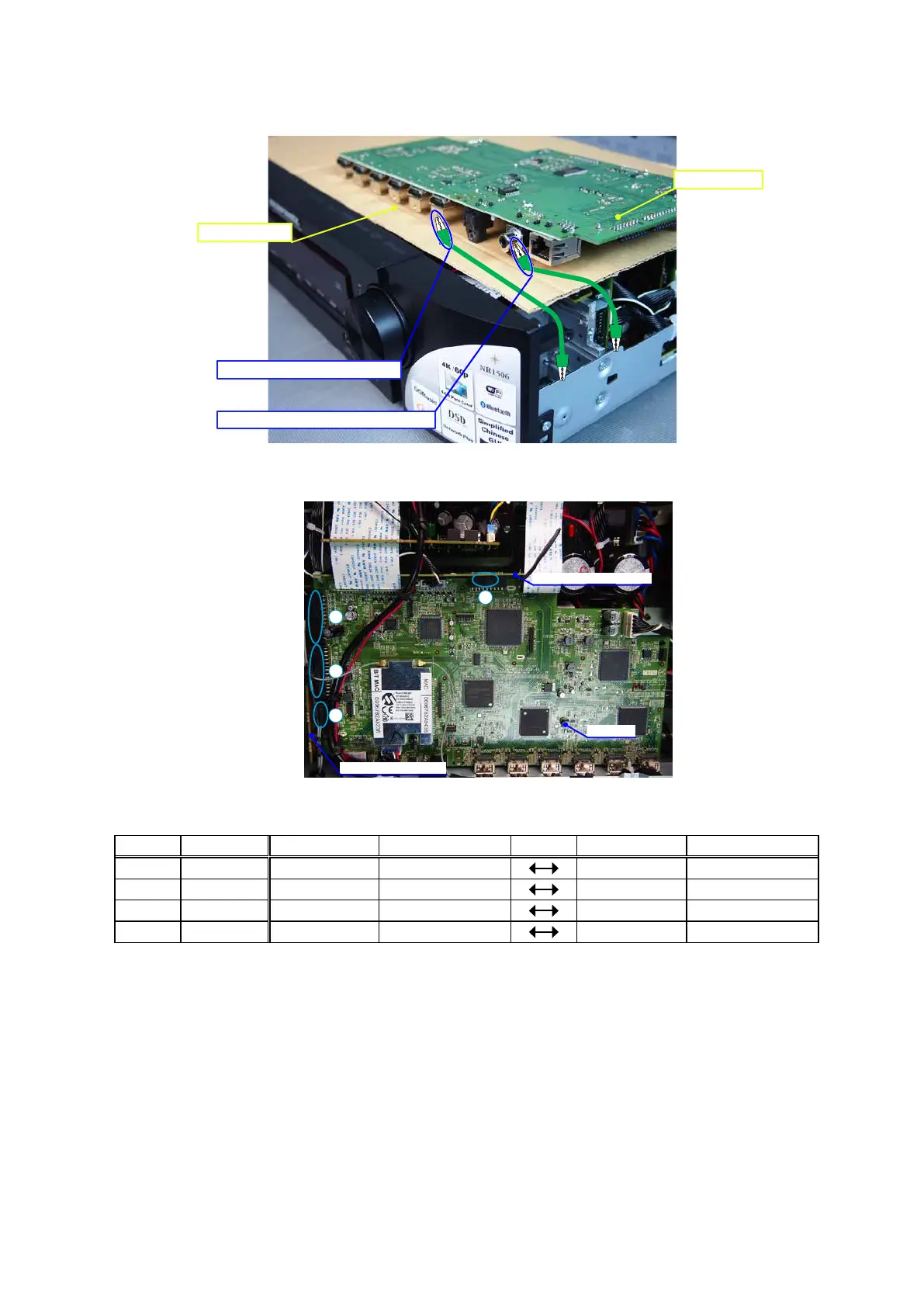

(3) Remove the HDMI PCB from the chassis and turn it over.
Place an insulation sheet larger than the PCB underneath the HDMI PCB.
b
Connect the earth of the PCB to the chassis using an earth wire, etc.
(4) Connect the expansion cables.
Board-to-Board Connections
No. Pin Ref. No. PCB Ref. No. PCB
q
23pin CP4603 SIDE CONNECTOR N1001 HDMI
w
27pin CP4604 SIDE CONNECTOR N1003 HDMI
e
15pin CP4607 SIDE CONNECTOR N1002 HDMI
r
17pin CP4621 FRONT CONNECTOR N1005 HDMI
PCB HDMI
Insulation sheet
CHASSIS-HDMI CONNECTOR
CHASSIS-COMPOSIT CONNECTOR
SIDE CONNECTOR
FRONT CONNECTOR
HDMI
4
3
2
1
47
To Next Page
