NAMES AND FUNCTIONS

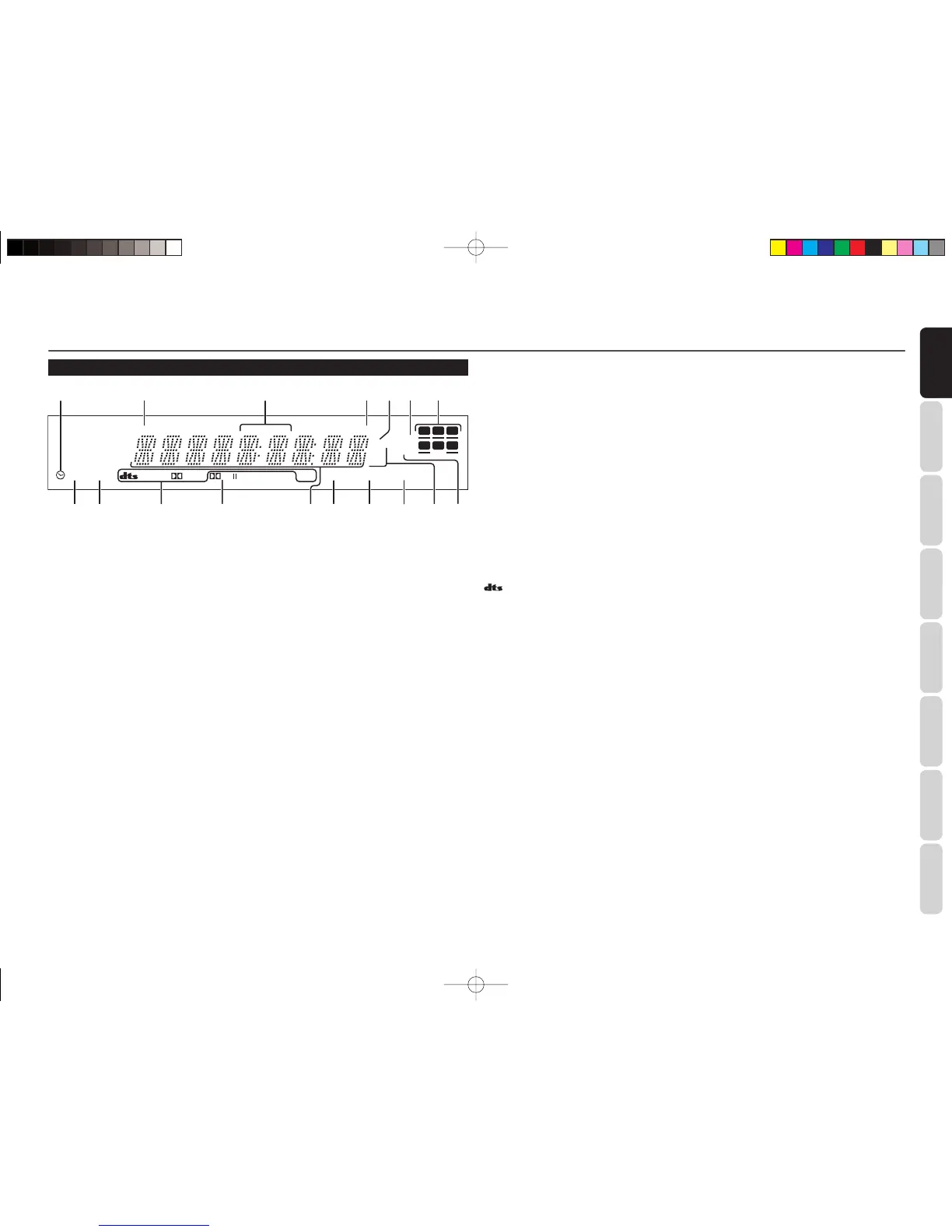

FL DISPLAY AND INDICATOR
P.SCAN ST Tuned PRESET
PROG.
MUTE
dB
kHz
MHz
AUTO VIRTUAL ES EX
PL PCMD DIGITAL ANALOG SLEEP
L C R
SL SW SR
a s d f hg j
a¡0¡1¡5¡6 ¡2 kl¡4 ¡3
a SLEEP timer indicator
This indicator is illuminated when the sleep timer
function is in use.
s P.SCAN indicator
This indicator is illuminated when the P.SCAN mode
is active.
d TUNER’s indicators
ST(Stereo) : This indicator illuminates when an
FM station is being tuned into stereo
condition.
Tuned : This indicator illuminates when the
tuner receives a suffi ciently strong
radio signal.
f PRESET indicator
This indicator is illuminated when a PRESET mode
has been selected.
g dB indicator
This indicator is illuminated when the Tone Control
is active.
h PROG indicator
This indicator is illuminated when the PRESET
MEMORY mode is active.
j OUTPUT SIGNAL CHANNEL
STATUS indicators
These indicators display the channels that are
output signal.
If the output signal is 2 channel, “L” and “R” will
be illuminated.
k MUTE indicator
This indicator is illuminated when the MUTE is
active.
l kHz/MHz indicators
These indicators are illuminated when the TUNER
FM or AM are active.
¡0 ANALOG indicator
This indicator is illuminated when an analog input
source has been selected.
¡1 DIGITAL indicator
This indicator is illuminated when a digital input has
been selected.
¡2 Main Information Display Area
This area shows messages relating to the status,
input source, surround mode, tuner, volume level or
other aspects of unit’s operation.
¡3 2 PL II indicator
This indicator is illuminate to show the DOLBY Pro-
Logic and Pro-Logic II decording mode.
¡4 SIGNAL FORMAT indicators
PCM
This indicator is illuminated when the input signal is
PCM (pulse code modulation).
EX
This indicator is illuminated when a Dolby Digital EX
signal is input.
2 D
This indicator is illuminated when a Dolby Digital
signal is input.
ES
This indicator is illuminated when a DTS ES signal
is input.
This indicator is illuminated when a DTS signal is
input.
¡5 VIRTUAL indicator
This indicator is illuminate to shown the VIRTUAL
surround mode.
¡6 AUTO indicator
This indicator is illuminated when a AUTO surround
mode has been selected.
