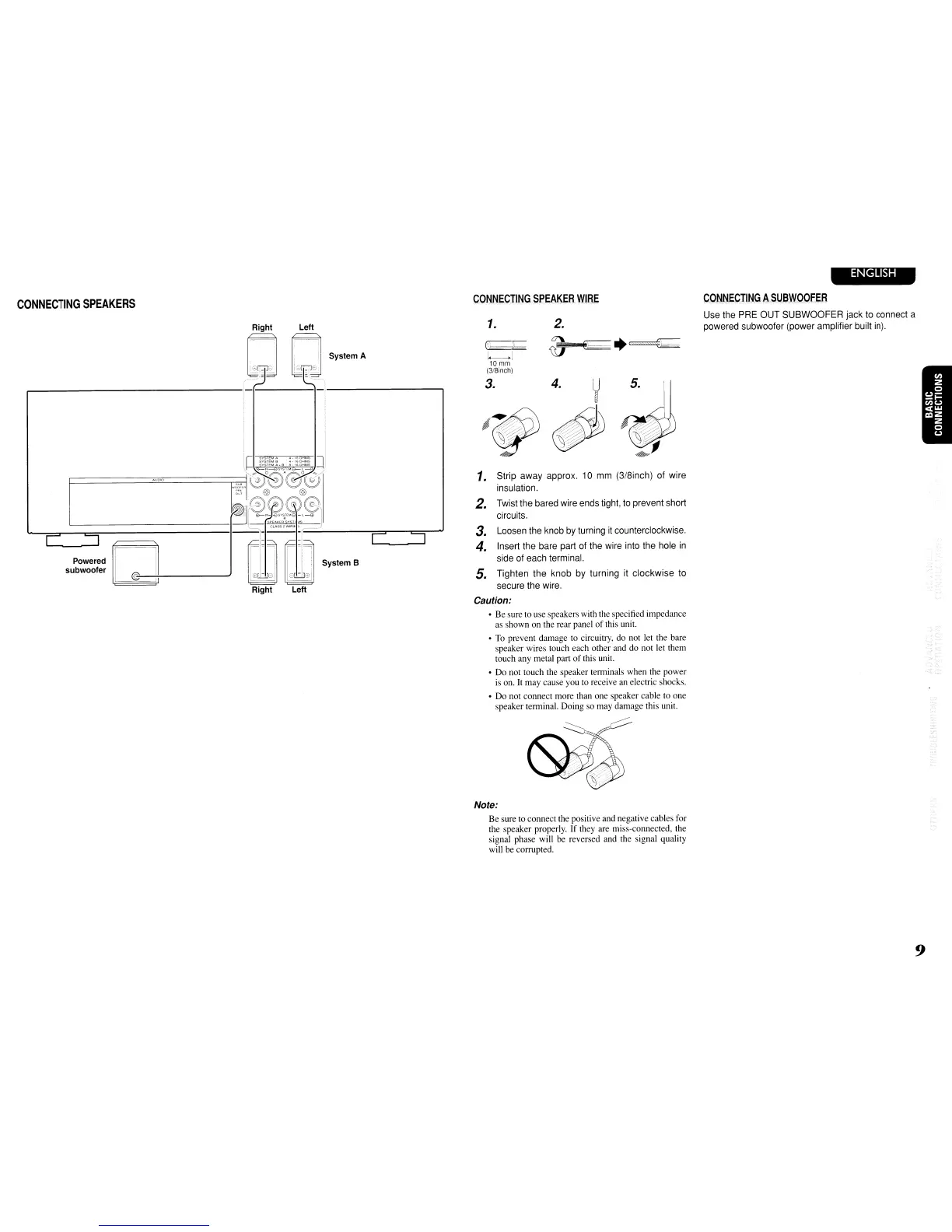

ENGLISH
CONNECTING
A
SUBWOOFER
Use the PRE OUT SUBWOOFER jack to connect a
powered subwoofer (power amplifier built in).
5.
2.
S
("
.~
1.
~
1.----.1
10mm
(3/8inch)
3.
CONNECTING
SPEAKER
WIRE
1.
Strip away approx. 10 mm (3/8inch) of wire
insulation.
2. Twist the bared wire ends tight, to prevent short
circuits.
3.
Loosen the knob
by
turning
it
counterclockwise.
4. Insert the bare part of the wire into the hole
in
side of each terminal.
5.
Tighten the knob by turning it clockwise to
secure the wire.
Caution:
• Be sure to use speakers with the specified impedance
as shown
on
the rear panel
of
this unit.
• To prevent damage to circuitry, do not let the bare
speaker wires touch each other and do not let them
touch any metal part
of
this unit.
•
Do
not touch the speaker terminals when the
power
is on.
II
may
cause you to receive an electric shocks.
•
Do
not connect more than one speaker cable to one
speaker terminal. Doing
so
may
damage this unit.
System A
Powered
subwoofer
r
'I
CONNECTING
SPEAKERS
Note:
Be sure to connect the positive and negative cables for
the speaker properly.
If
they are miss-connected, the
signal
phase
will be reversed and the signal quality
will be corrupted.
9
