Marantz SR4023 User Manual

ENGLISH

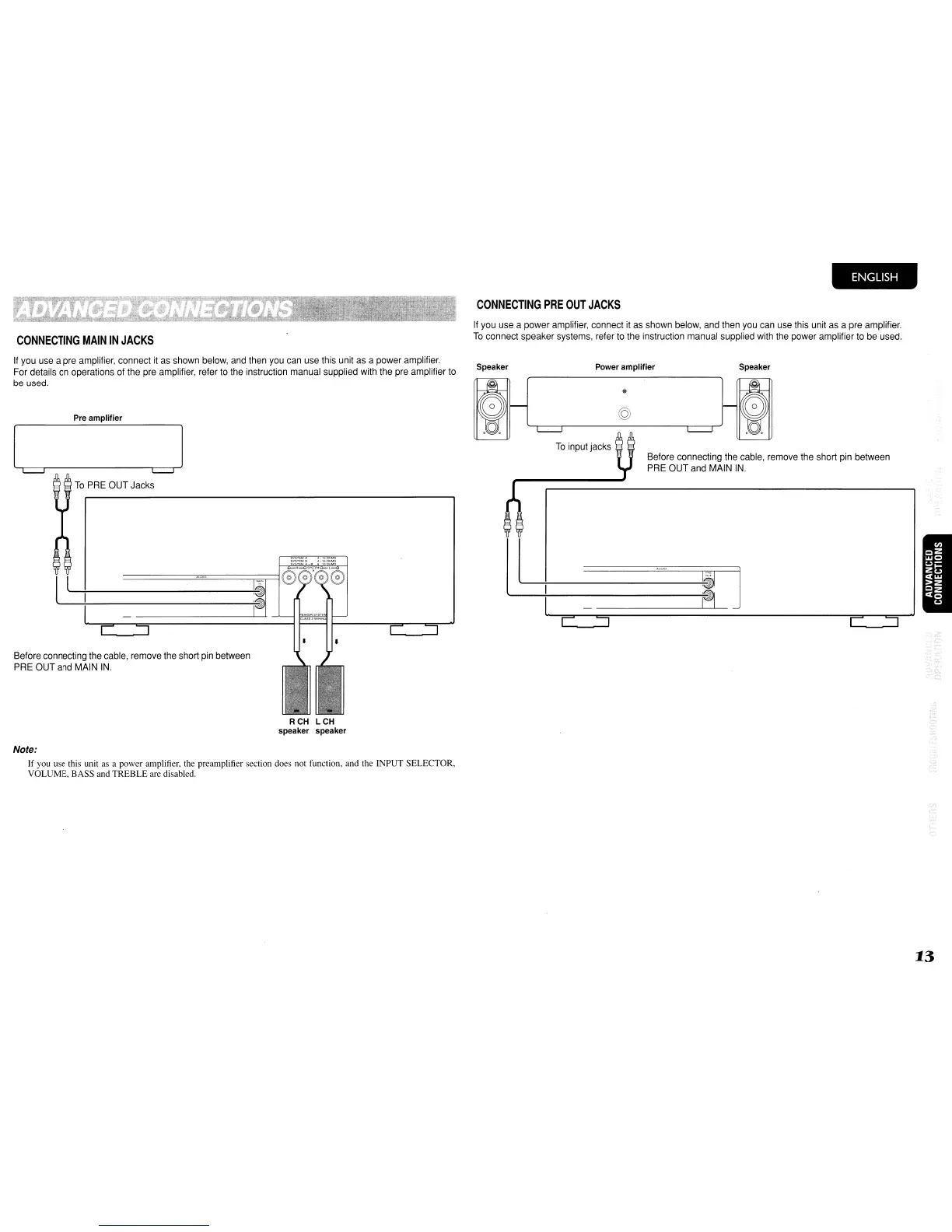

CONNECTING MAIN IN JACKS
CONNECTING PRE OUT JACKS
If you use a power amplifier, connect it as shown below, and then you can use this unit as a pre amplifier.
To connect speaker systems, refer io the instruction manual supplied with the power amplifier to be used.
If you use a pre amplifier, connect it as shown below, and then you can use this unit as a power amplifier.
For details on operations of the pre amplifier, refer to the instruction manual supplied with the pre amplifier to
be used.
Pre amplifier
Speaker Power amplifier
Speaker
~
...
~
©
c::=J c::=J
Before connecting the cable, remove the short pin between
PRE OUT and MAIN IN.
To input jacks -
Cl"SS2 W.",,.
'---=.------.:=-------------1
To PRE OUT Jacks
Before connecting the cable, remove the short pin between
PRE OUT and MAIN IN.
RCH LCH
speaker speaker
Note:
If you use this unit as a power amplifier, the preamplifier section does not function, and the INPUT SELECTOR,
VOLUME, BASS and TREBLE are disabled.
13
