Basic version

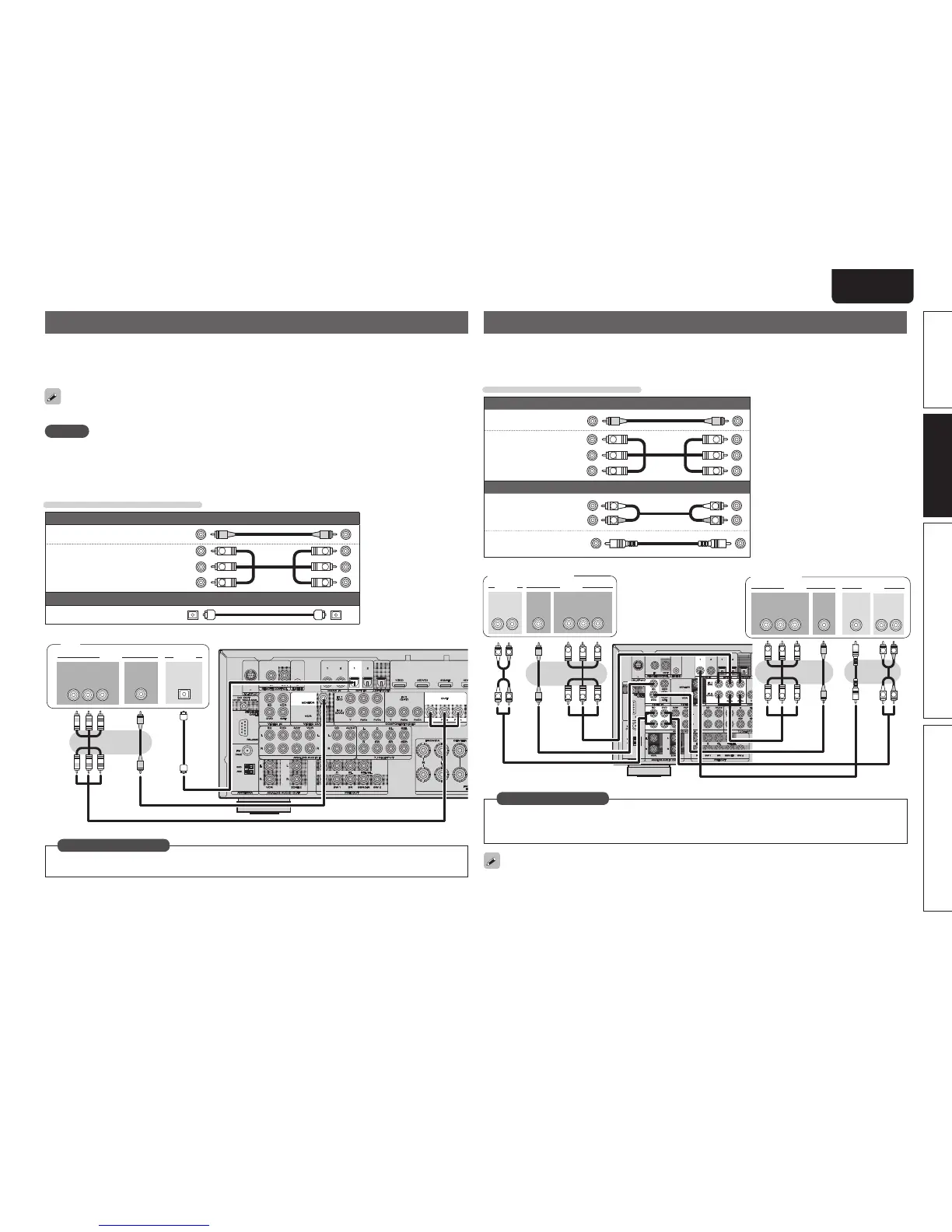

Connecting a TV
• Select the connector to use and connect the device.
• For video connections, see “Converting input video signals for output (Video conversion function)”
(vpage14).
• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage15).
To listen to TV audio through this device, use the optical digital connection.
NOTE
This connection is not required when a TV compatible with the ARC function (Audio Return Channel (HDMI
1.4a standard function) is connected to this unit via an HDMI connection.
For details, see “About ARC (Audio Return Channel) function” (vpage 15) or refer to the instruction
manual for your TV.
Cables used for connections
Video cable (sold separately)
Video cable
(Yellow)
Component video
cable
Y
PB
PR
Y
PB
PR
(Green)
(Blue)
(Red)
Audio cable (sold separately)
Optical cable
IN
VIDEO
AUDIO
OPTICAL
OUT
VIDEO
COMPONENT VIDEO
Y P
B PR
IN
TV
Set this to change the digital input connector to which the input source is assigned.
“Input Assign” (vpage52)
in Set as Necessary
Connecting a Blu-ray Disc player / DVD player
• You can enjoy video and audio from a Blu-ray Disc or DVD.
• Select the connector to use and connect the device.
• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage15).
Cables used for connections
Video cable (sold separately)
Video cable
(Yellow)
Component
video cable
Y
PB
PR
Y
PB
PR
(Green)
(Blue)
(Red)
Audio cable (sold separately)
Audio cable
(White)
(Red)
R
L
R
L
Coaxial
digital cable
(Black)
R
L
R
L
R
L
R
L
AUDIO
AUDIO
RL
OUT
OUT
COAXIAL
VIDEO
OUT
VIDEO
COMPONENT VIDEO
Y P
B PR
OUT
AUDIO
AUDIO
RL
OUT
VIDEO
OUT
VIDEO
COMPONENT VIDEO
Y P
B PR
OUT
Y
PB
PR
Y
PB
PR
Y
PB
PR
Y
PB
PR
DVD player
Blu-ray Disc player
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage52)
in Set as Necessary
For HD audio (Dolby TrueHD, DTS-HD, Dolby Digital Plus and DTS Express) playback, connect with HDMI
(vpage15 “Connecting an HDMI-compatible device”).

Marantz SR6005 Specifications

General

Channels	7.1
Power Output	110W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
HDMI Inputs	6
HDMI Outputs	1
Dolby Technologies	Dolby TrueHD, Dolby Digital Plus, Dolby Pro Logic IIz
Networking	No
3D Support	Yes
Audio Return Channel (ARC)	Yes
Phono Input	Yes
Total Harmonic Distortion	0.08%
Signal-to-Noise Ratio	100 dB
Input Sensitivity	200 mV
USB Port	Yes
DTS Technologies	DTS-HD Master Audio, DTS Neo:6
Multi-room	Yes
Frequency Response	10Hz-100kHz
Video Upconversion	Yes
