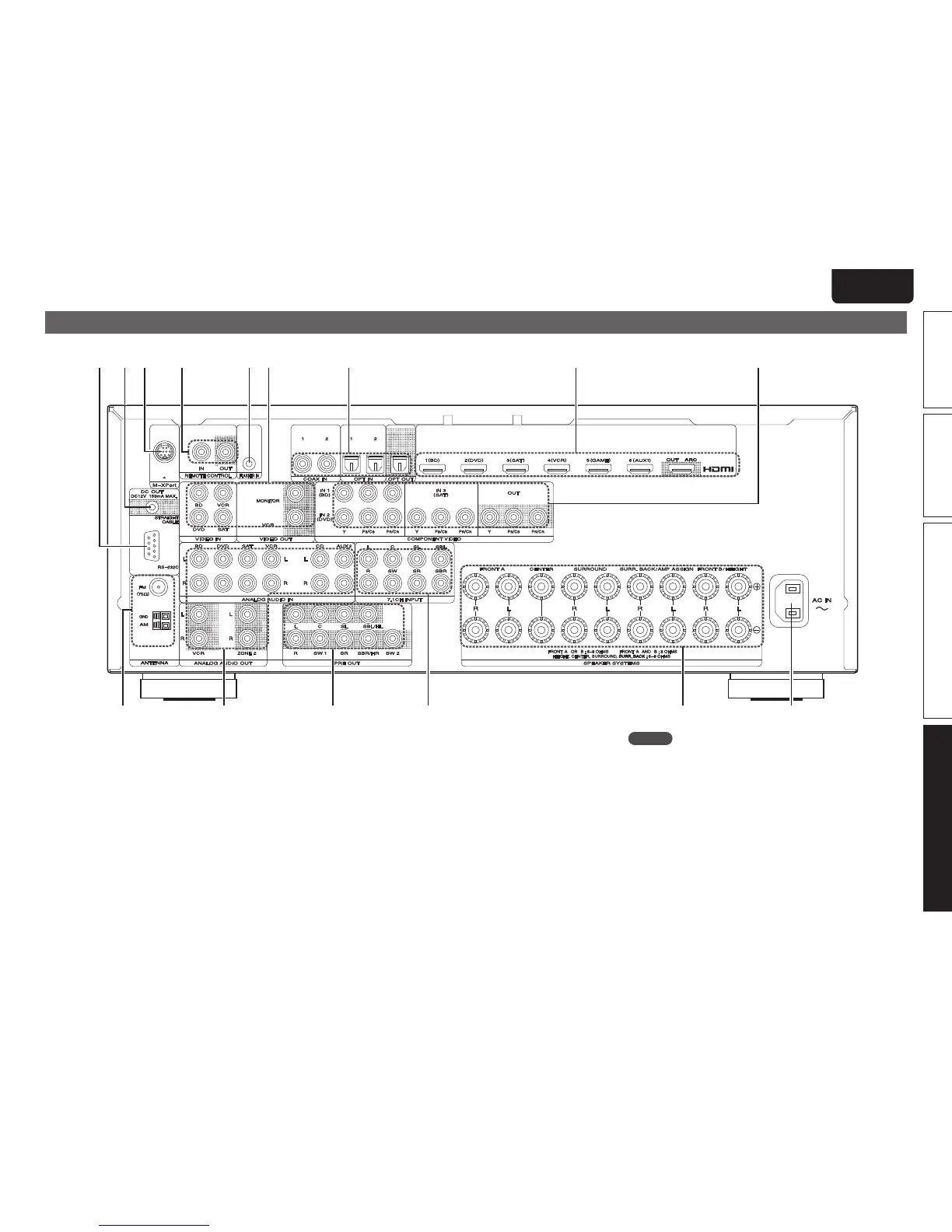

Rear panel
See the page indicated in parentheses ( ).
q yte rw
Q4
Q3
Q5
u
Q2
Q0 oQ1 i
q FM/AM antenna terminals ····················································· (20)
w Analog audio connectors ·················································(17 – 22)
e PRE OUT connectors ··············································(6, 22, 36 – 38)
r 7.1CH INPUT connectors ························································ (21)
t Speaker terminals ························································(6, 36 – 38)
y AC inlet (AC IN) ·········································································· (6)
u COMPONENT VIDEO connectors ····································· (17, 18)
i HDMI connectors ····································································· (16)
o Digital audio connectors ··················································(17 – 20)
Q0 VIDEO connectors ····························································(17 – 19)
Q1 FLASHER IN jack
Used when using a control BOX or other such control devices to
control this unit.
Q2 REMOTE CONTROL jacks ······················································· (40)
Q3 M-XPort jack ············································································ (21)
Q4 DC OUT jacks ··········································································· (41)
Q5 RS-232C connector ·································································· (41)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
