Marantz SR7009/U1B - Video Pcb; INPUT and HDAM PCB

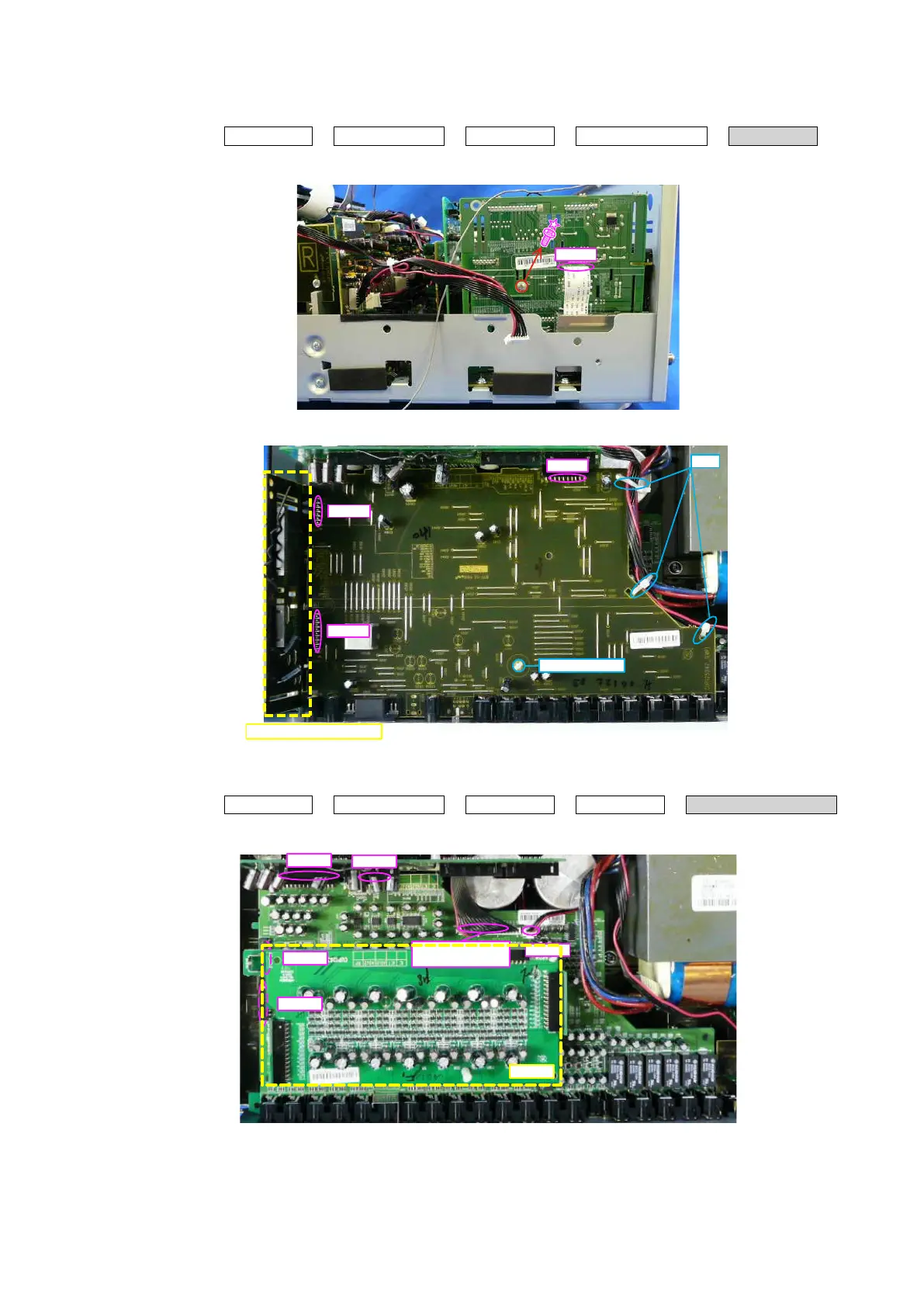

4. VIDEO PCB
Proceeding : TOP COVER → BACK CHASSIS → DIGITAL PCB → SIDE CONNECT PCB → VIDEO PCB
(1) RemovetheFFCandthescrew.
(2) RemovetheconnectorandremovethesideconnectPCB.
5. INPUT and HDAM PCB
Proceeding : TOP COVER → BACK CHASSIS → DIGITAL PCB → VIDEO PCB → INPUT and HDAMPCB
(1) Removetheconnector.
FFC
BN21B
BN28B
BN27B
SIDE CONNECT PCB
CUT
PCB HOLDER
BN24C
BN26C
BN64C
BN23C
CN706
From AMP PCB
CN481
HDAM
