6. SPK PCB
Proceeding : TOP COVER
→
BACK CHASSIS
→
DIGITAL PCB
→
SIDE CONNECT PCB
→
VIDEO PCB
→
INPUT and HDAM PCB
→
FRONT CONNECT and FUSE PCB
→
SPK PCB

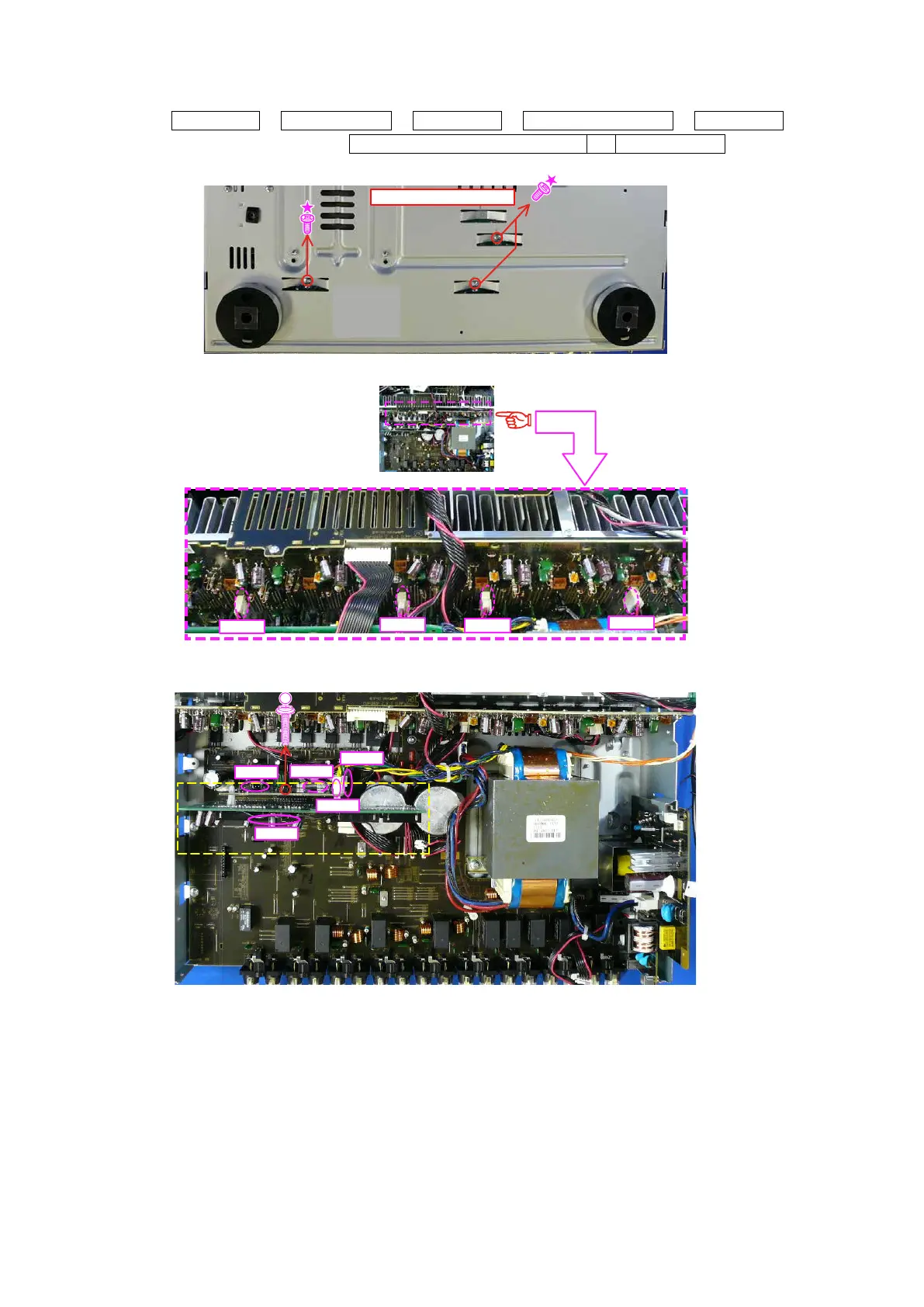

(1) Removethescrews.
(2) Removetheconnectorwire.
(3) Removetheconnectorwire.Removethescrews.ThenremovethefrontconnectorPCBandthefusePCB.
View from the bottom
CN703
CN704
CN702
CN701
BN932
CN940
CN941
BN933
CN25D
18
