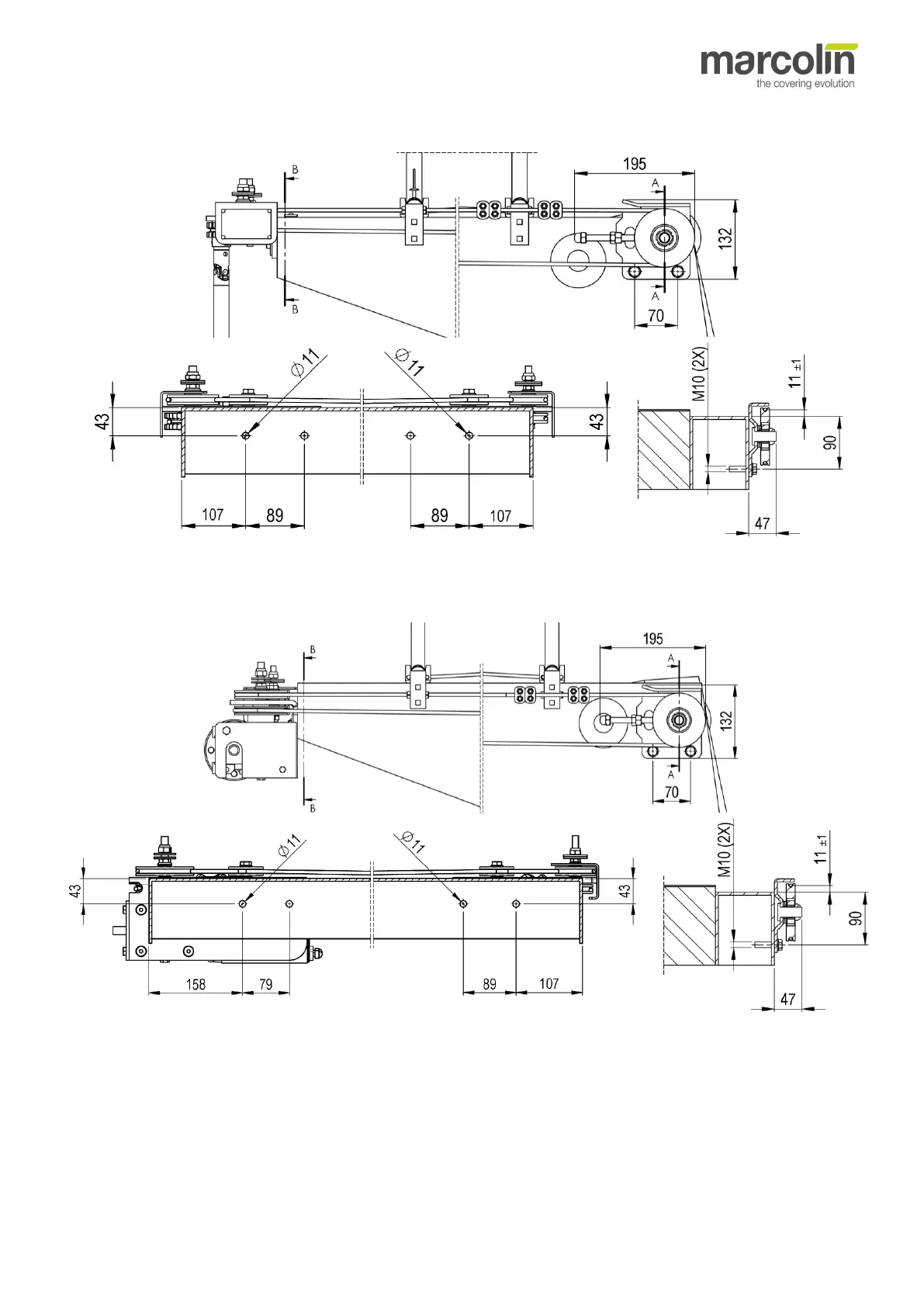

• Drill holes (Ø 11) of the fastening seats according to the dimensions shown in the figure above.
• Fasten the supports with the screws and check that the distance between the two rear pulleys which will cycle through
the ropes, lines up front.
At this point, everything is ready for housing the various components, as indicated subsequently.
