MARCOLIN Ecotype - Working and Preparation of the Cab Guard with LOWERED CABLES

16 - Installation manual - Ecotype

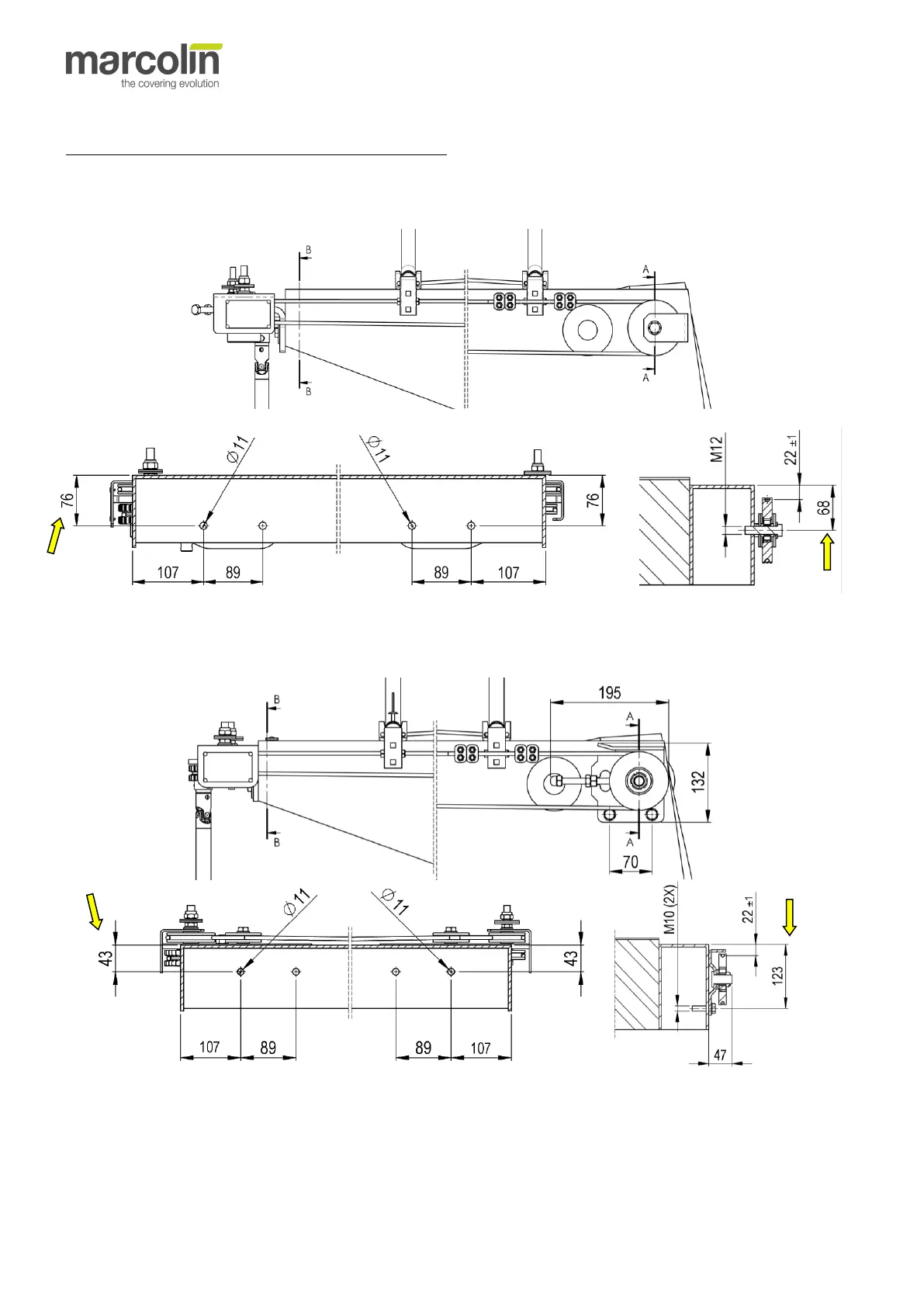

3.3.3 Working and preparation of the cab guard with “LOWERED CABLES”
Add 33 mm. to the positioning height (from 43 mm to 76 mm).
HAND OPERATED VERSION for tipper body length < 8 m:
SEC. B-B
SEC. A-A
HAND OPERATED VERSION for tipper body length > 8 m:
SEC. B-B
SEC. A-A
