Installation manual - Ecotype - 27
3.6 Tarpaulin fastening
On the front part, the tarpaulin is longer than the body for a better customization to the different types of tipper body and,
especially, to the possible presence of the cab guard.
Before going on with the tarpaulin fastening, some operations have to be carried out in order to define the correct fastening
measure of the tarpaulin.
Pay special attention while fixing the tarpaulin in case of automatic rear closure. In such circumstances refer to the
process described in the specific paragraph 4.1.
• Move the tarpaulin and cover the tipper body,
stopping the pulling bow 70 mm before the rear
pulley.
The tarpaulin has to be moved according to the installed
driving system type (manually or electrically operated).

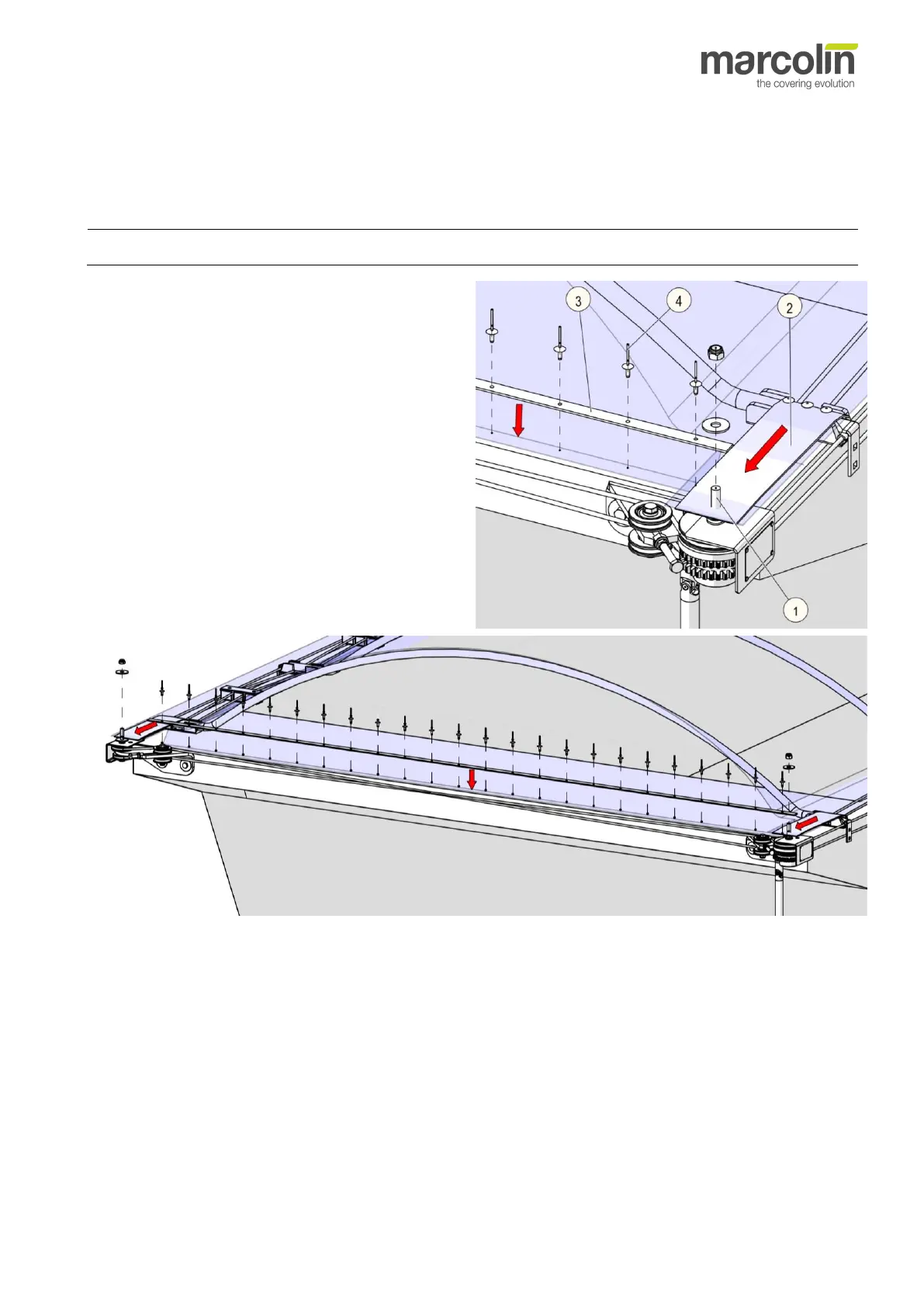

• Tighten and fasten the PE (2) band on the lateral
fastening screws (1) of the front pulleys Ø 60.
• Tighten up the front part of the tarpaulin.
• Fasten the tarpaulin on the top of the gear housing,
using the specific clamping plate (3) and rivets (4).
• Cut off the excess part of the tarpaulin.
