3.3.4 Supports fitting
Firstly, install the LH control support, which must be positioned on the left part (with respect to the direction of travel):

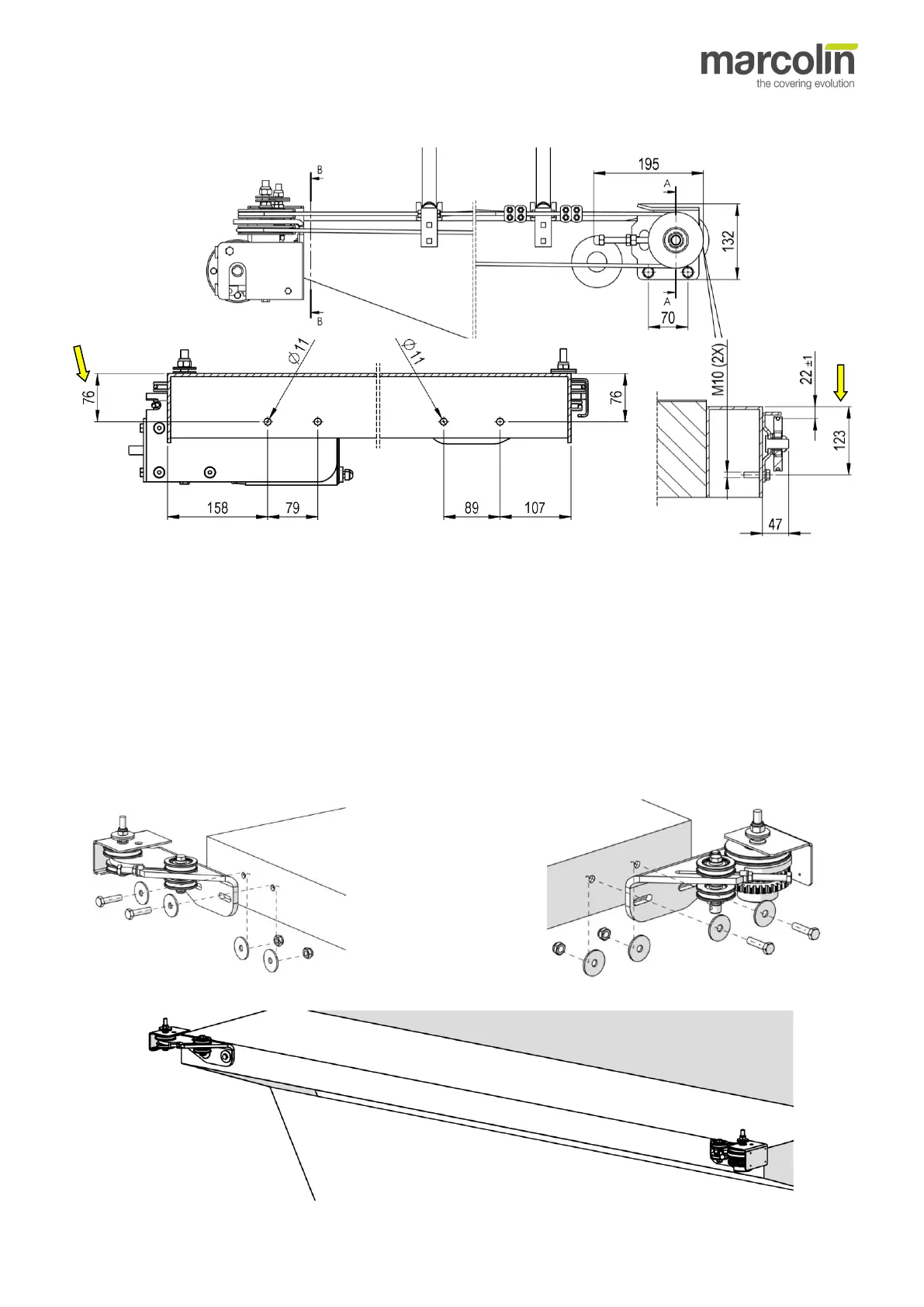

• Position the left support as shown in the figure, according to the previously prepared holes.
• Fasten the support with the two screws and self-locking nuts supplied with the system.
Then fasten the right support.
• Position the support as shown in the figure according to the previously prepared holes.
• Fasten the support with the two screws and self-locking nuts supplied with the system.
